5

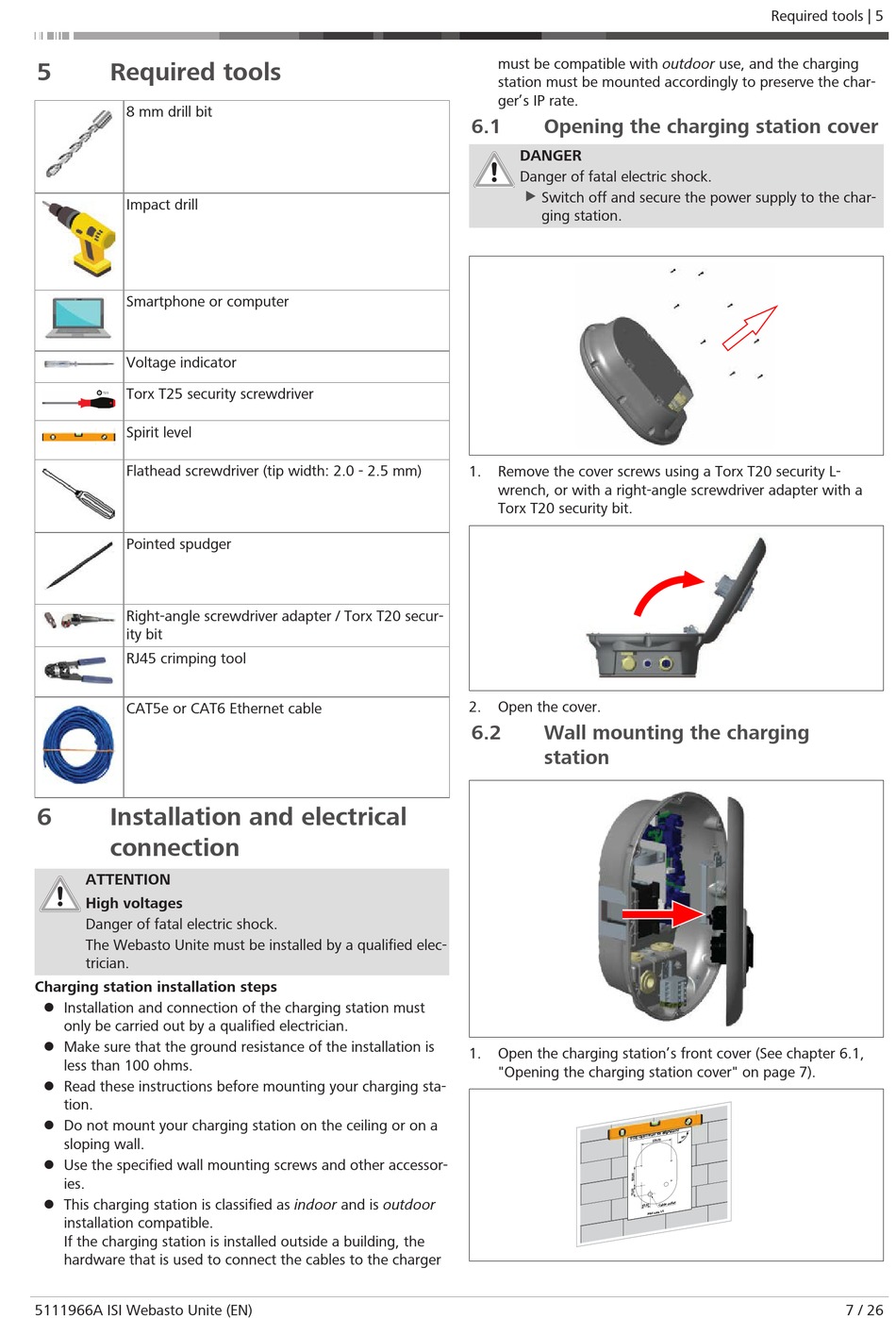

Required tools
8 mm drill bit
Impact drill
Smartphone or computer
Voltage indicator
Torx T25 security screwdriver
Spirit level
Flathead screwdriver (tip width: 2.0 - 2.5 mm)
Pointed spudger
Right-angle screwdriver adapter / Torx T20 secur-
ity bit
RJ45 crimping tool
CAT5e or CAT6 Ethernet cable
6
Installation and electrical
connection
ATTENTION
High voltages
Danger of fatal electric shock.
The Webasto Unite must be installed by a qualified elec-
trician.
Charging station installation steps
l Installation and connection of the charging station must
only be carried out by a qualified electrician.
l Make sure that the ground resistance of the installation is
less than 100 ohms.
l Read these instructions before mounting your charging sta-
tion.
l Do not mount your charging station on the ceiling or on a
sloping wall.
l Use the specified wall mounting screws and other accessor-
ies.
l This charging station is classified as indoor and is outdoor
installation compatible.
If the charging station is installed outside a building, the
hardware that is used to connect the cables to the charger
5111966A ISI Webasto Unite (EN)
must be compatible with outdoor use, and the charging
station must be mounted accordingly to preserve the char-
ger's IP rate.
6.1
Opening the charging station cover
DANGER
Danger of fatal electric shock.
u
Switch off and secure the power supply to the char-
ging station.
1.
Remove the cover screws using a Torx T20 security L-
wrench, or with a right-angle screwdriver adapter with a
Torx T20 security bit.
2.
Open the cover.
6.2
Wall mounting the charging
station
1.
Open the charging station's front cover (See chapter 6.1,
"Opening the charging station cover" on page 7).
US E Sp
Required tools | 5
nm en t
l fo r al ig
iri t le ve
90 º
22 6,0 0
tle t
Ca ble ou
65 ,50
le 1/1
Pri nt sca
7 / 26
