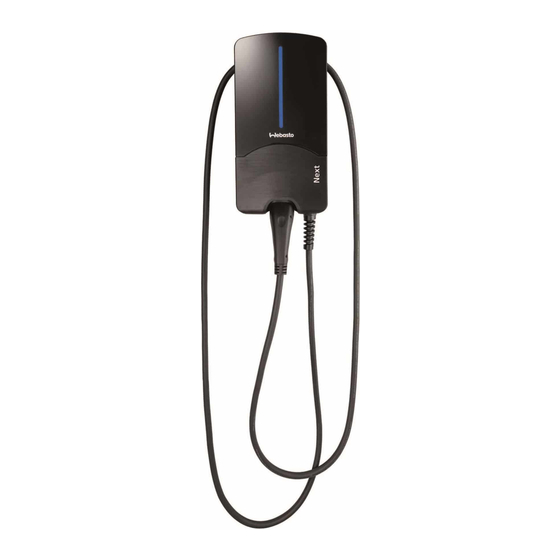

Summary of Contents for Webasto Next

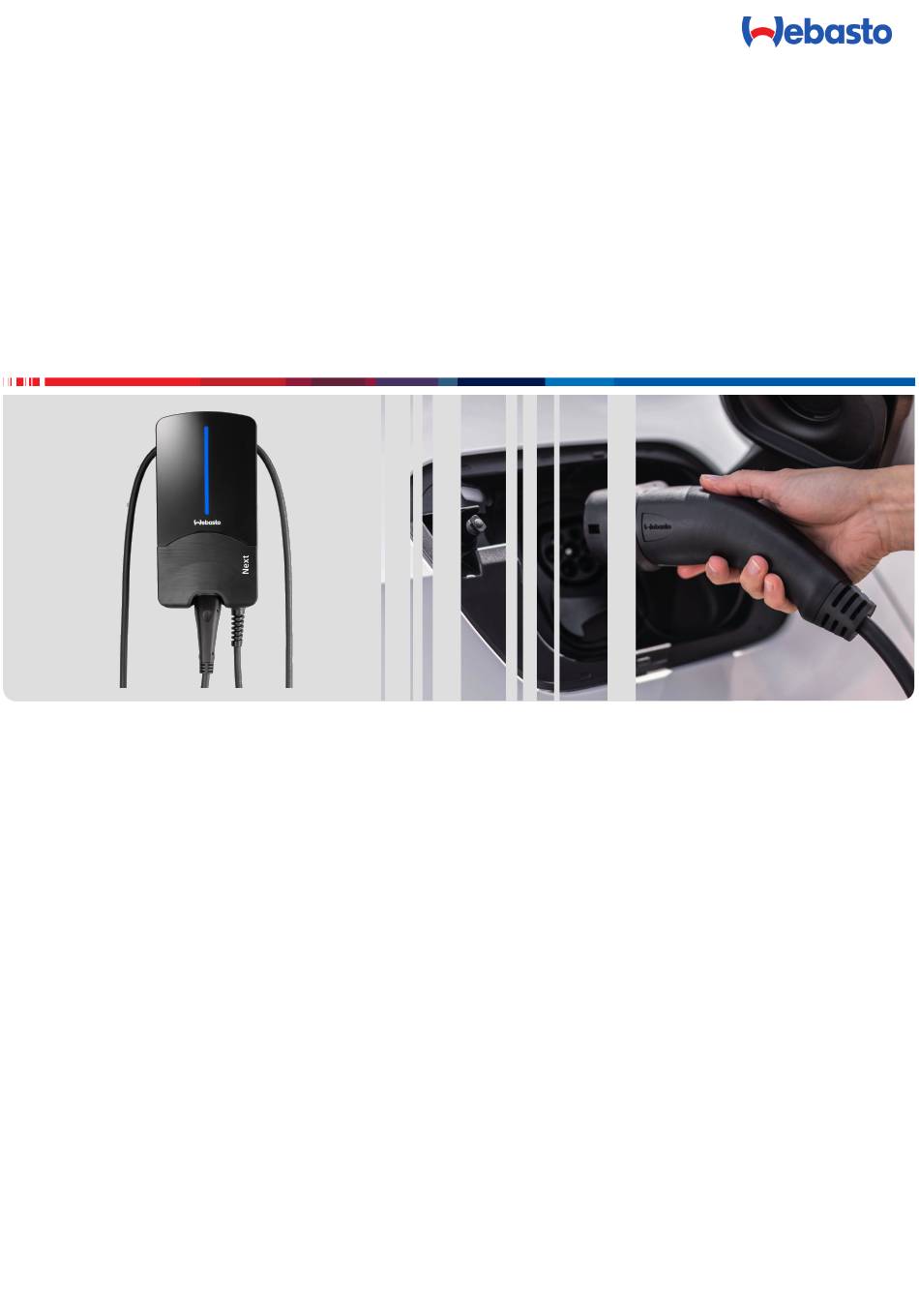

  • Page 1 Operating- and Installation instructions Webasto Next Webasto Charging Solutions English...
  • Page 2: Table Of Contents

    10 Dynamic Load Management – Stand- alone mode (DLM) ...... 13 11 Home Energy Management System (HEMS).......... 14 12 Assembly ..........  15 13 Settings .......... 16 13.1 Dim LED indicator ............  16 14 Operation .........  16 5111232C OI-II Webasto Next_EN...
  • Page 3: Quick Start Guide For App Solutions

    Webasto Charger Setup the delivered state. 2) For operation: Webasto ChargeConnect The Webasto Next must be installed by a qualified electrician. Scan the QR code on the label in the Open the ChargeConnect app and Plug in and enjoy exploring your...
  • Page 4: General Information

    Use of non-original spare parts. eration and for the electrician to carry out safe installation of the Webasto Next charging station. In addition to the "Import- l Unauthorised conversion of the unit without permission ant Information on Operating and Installation Instructions", a from Webasto.
  • Page 5: Safety Information For Installation

    Protective measures must be implemented if the possibility of damage cannot be ruled out. WARNING l Do not put the Webasto Next into operation if it has l When not in use, store the charging cable in the desig- been damaged during installation; a replacement will nated holder and lock the charging coupling in the re- be required.
  • Page 6: Unit Description

    4 | Unit description 4.2.1 ModBus Unit description The Webasto Next is set up for the use of an extended energy management system via a higher-level electricity meter. This function can be implemented through performing a software update*. A current overview of the available documentation including compatible meters can be found at https://charging.webasto.com/int/products/documentation...
  • Page 7: Transportation And Storage

    Optional: Installation kit for country-specific pur- poses. (Automatically included in scope of delivery, if applicable) To use the Webasto Service App and access the online Webasto technical documentation, scan the QR code or the barcode on Table 1: Scope of delivery your Webasto product box.
  • Page 8: Requirements Installation Space

    90 cm above the ground dur- ing installation. See Fig. 20. Circuit Breaker (RCCB) l If several charging stations are installed next to each other, The national installation regulations generally apply. Unless oth- a spacing of at least 200 mm must be maintained between erwise specified therein, each charging station must be protec- each station.
  • Page 9 Black Guide the charging cables through the previously pre-as- Grey sembled sealing clip. Yellow-green NOTE Black-white Control cable (CP) Ensure correct fit of the previously pre-assembled rub- ber seals in the sealing clip. 5111232C OI-II Webasto Next_EN 9 / 23...
  • Page 10: Electrical Connection

    Switch off and secure the power supply to the char- ging station. L3 L2 L1 N PE PE N L1 L2 L3 NOTE Only use genuine Webasto parts of the same power L3/IN L2/IN L1/IN N/IN N/OUT L1/OUT L2/OUT L3/OUT level.
  • Page 11: Lan Cable

    DIP switches. Check again for firm attachment of all wires in the corres- ponding terminal. Next position the cable bushing in the housing lead- through. NOTE Make sure there are no air gaps between the housing and the cable bushing.
  • Page 12: Initial Start-Up

    Document the results of the checks and measurements carried out during initial start-up corresponding to the applicable in- stallation requirements and standards. Fig. 12 The Webasto Charger Setup app supports you with checks dur- Login data: ing initial start-up. l User name: admin...
  • Page 13: Settings In The Webui For Hems

    A list of compatible smart meters can be found at https://char- ging.webasto.com/en-uk/products/webasto-next/. The DLM communication protocol for the Webasto Next can be enabled in the Setup app https://charging.webasto.com/en- uk/products/webasto-next/ or via the integrated WebUI chapter 9, "WebUI" on page 12.
  • Page 14: Home Energy Management System (Hems)

    Fig. 17 Home Energy Management System (HEMS) The Webasto Next can be integrated into a range of energy management systems (EMS). Here, the external EMS module is connected to the wall box via a router or DHCP switch. This communication makes use of the Modbus TCP protocol via the RJ45 port.
  • Page 15: Assembly

    116 mm 225 mm Fig. 19 WCH000026A Fig. 20 Hole for cable to building wiring system Hole for LAN cable *) The tools shown are not included in the scope of delivery of the wall box. 5111232C OI-II Webasto Next_EN 15 / 23...
  • Page 16: Settings

    WCH000072A LED not lit: Charging station is off. To dim the LED display of your Webasto Next, using the White chase light running up and down: Webasto ChargeConnect Portal (WCC) (https:// Charging station is starting up. webastochargeconnect.com/) and follow the instructions.
  • Page 17: Start Charging

    Vehicle is con- Unplug the charging coup- Checking by an authorised electrician. nected, not charging. ling from the vehicle. Lock charging coupling in the holder of the charging Danger of fatal electric shock. station. 5111232C OI-II Webasto Next_EN 17 / 23...
  • Page 18: Scan & Charge Locking Function

    You can enable or disable the wall-box locking function in the 16.2 Cleaning Webasto Setup app or in the WebUI. If you want to restrict ac- DANGER cess to the wall box for other users, disable "free charging" in High voltages.
  • Page 19: Disposal

    EMC and environmental compatibility. Webasto Roof & Components SE hereby declares that the radio equipment type "Charging Station Webasto Next" conforms to Directive 2014/53/EU. The full text of the EU declaration of con- formity can be found at the following web address: https://charging.webasto.com/int/products/documentation...
  • Page 20: Technical Data

    In 1-phase operation: 3.7 or 7.4 kW Table 5: Electrical characteristics Description Data l “Scan & Charge” via QR code Authentication l Webasto ChargeConnect Portal l Webasto ChargeConnect App Display RGB-LED, buzzer l LAN (RJ45) – 10/100 Base-TX Network interfaces l WLAN 802.11 b/g/n - 54 Mbit/s Client: 2.4 GHz and 5 GHz...
  • Page 21 2012/19/EU Waste Electrical and Electronic Equipment Directive l 1907/2006 REACH regulation Back end integration Webasto ChargeConnect; connection of third-party back ends via Webasto ChargeConnect in development Tested compatible energy management sys- Integration into various energy management systems (EMS*) in development tems (EMS*) Table 8: Ambient conditions...
  • Page 22: Checklist For The Installation Of The Webasto Charging Station

    The charging cable and coupling has been protected against being driven over, trapped, or any other mechanical hazards. The customer/user was informed how the Webasto Next voltage is switched off with the installation-side protective devices. Charging station requirements: The cable bushing for the mains lead and signal cable has been installed during installation.
  • Page 23 Webasto Charging-Hotline: +800-CHARGING UK only (00800-24274464) Webasto Thermo & Comfort UK Ltd Webasto Roof & Components SE Webasto House Postfach 80 White Rose Way 82131 Stockdorf Doncaster Carr Germany South Yorkshire DN4 5JH Company address: United Kingdom Kraillinger Str. 5...
