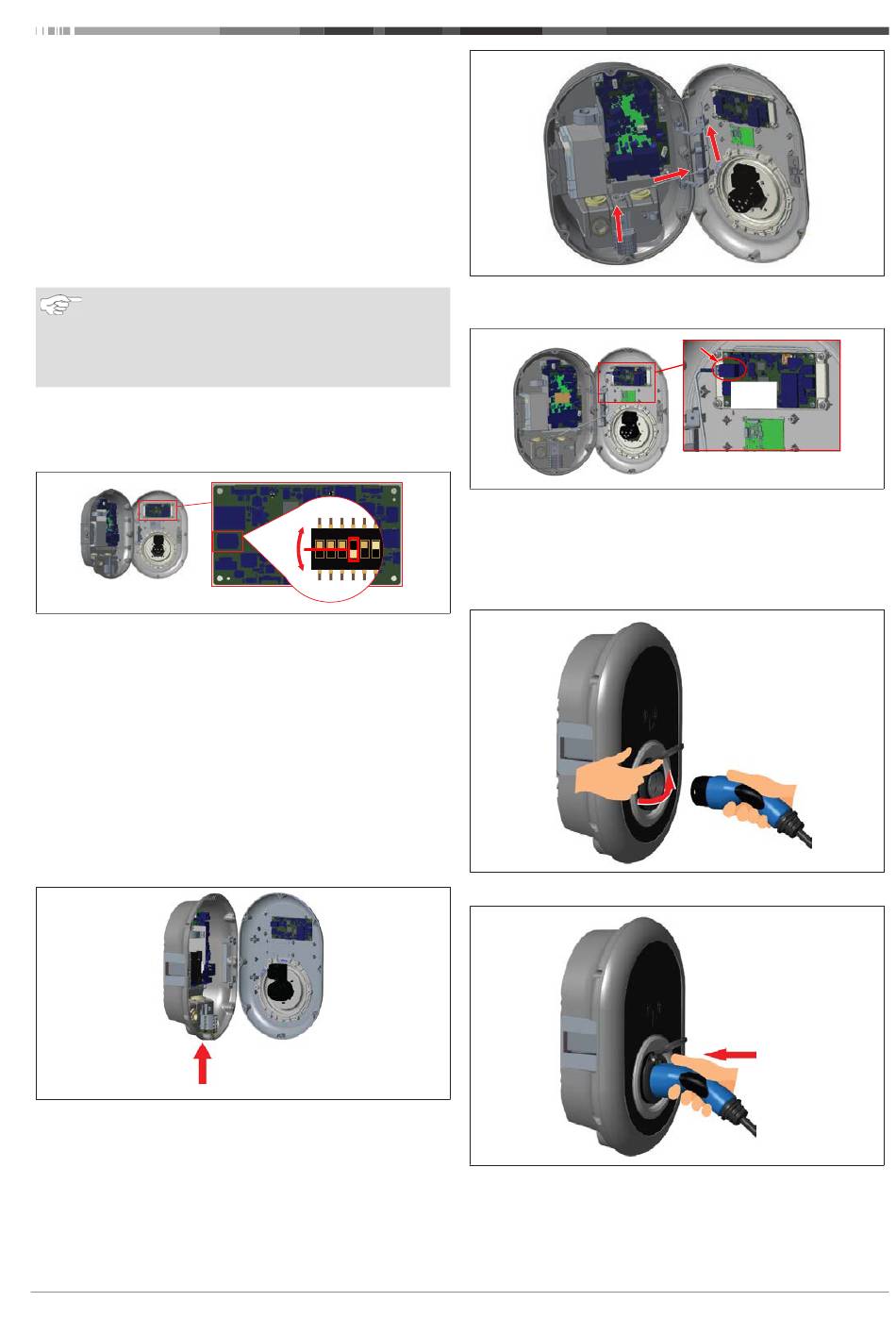

2. Open the charging station's front cover.
3. Toggle DIP switch number 2.
4. Close the charging station's front cover.
5. Switch on the charging station again.
6. The charging station now sets its Ethernet port to:
- Static address: 192.168.0.100
- Subnet mask: 255.255.255.0
If the charger's LAN (Local Area Network) interface has to be
changed back to DHCP mode again, then you can do this from
the web configuration interface (see Unite Configuration Inter-
face).
NOTE
You can also use the factory reset function to set the
LAN interface back to DHCP mode. Note however that
all other parameters will also be reset to factory de-
fault.
6.13 Enabling and disabling the web
configuration interface
To enable or disable the Web Configuration Interface:
1. Switch off the charging station.
2. Open the charging station's front cover.
3. Put DIP switch number 3
– in the OFF position to disable the web configuration in-
terface.
– in the ON position to enable the web configuration in-
terface.
4. Close the charging station's front cover.
5. Switch on the charging station again.
6.14

Configuring an OCPP connection

6.14.1 Connecting OCPP via Ethernet
1. Feed the Ethernet cable through the cable gland as shown
above.
5111966A ISI Webasto Unite (EN)
6 5 4 3 2 1
Toggle
ON
2. Pull the Ethernet cable through the cable clamps as shown
by the arrows above.
3. Insert the RJ45 connector into the socket as shown in fig-
ure below.
7

Setting up charging

7.1

Charging cable plug

1. Open the hinged lid of the outlet socket.
2. Plug the charging cable plug into the outlet socket.
Setting up charging | 7
CN13
