5.7 Description of the Rear Panel

The rear panel contains two holders for SIM cards (SIM1, SIM2) and RST button used to
restore default configuration and reboot the router.

5.8 Description of the Front Panel

On the front panel is the following:
Caption Connector
PWR/IO 4-pin
ETH RJ45
RS232 DB9 female
ANT SMA
DIV SMA
WiFi R-SMA
Description
Connector for the power supply and connection of the binary
input and output.
Connector for connection into the computer network.
Connector for serial interface RS232.
Connector for main antenna.
Connector for diversity antenna.
Connector for WiFi antenna (only for versions with WiFi
module!).
Table 4: Front panel description

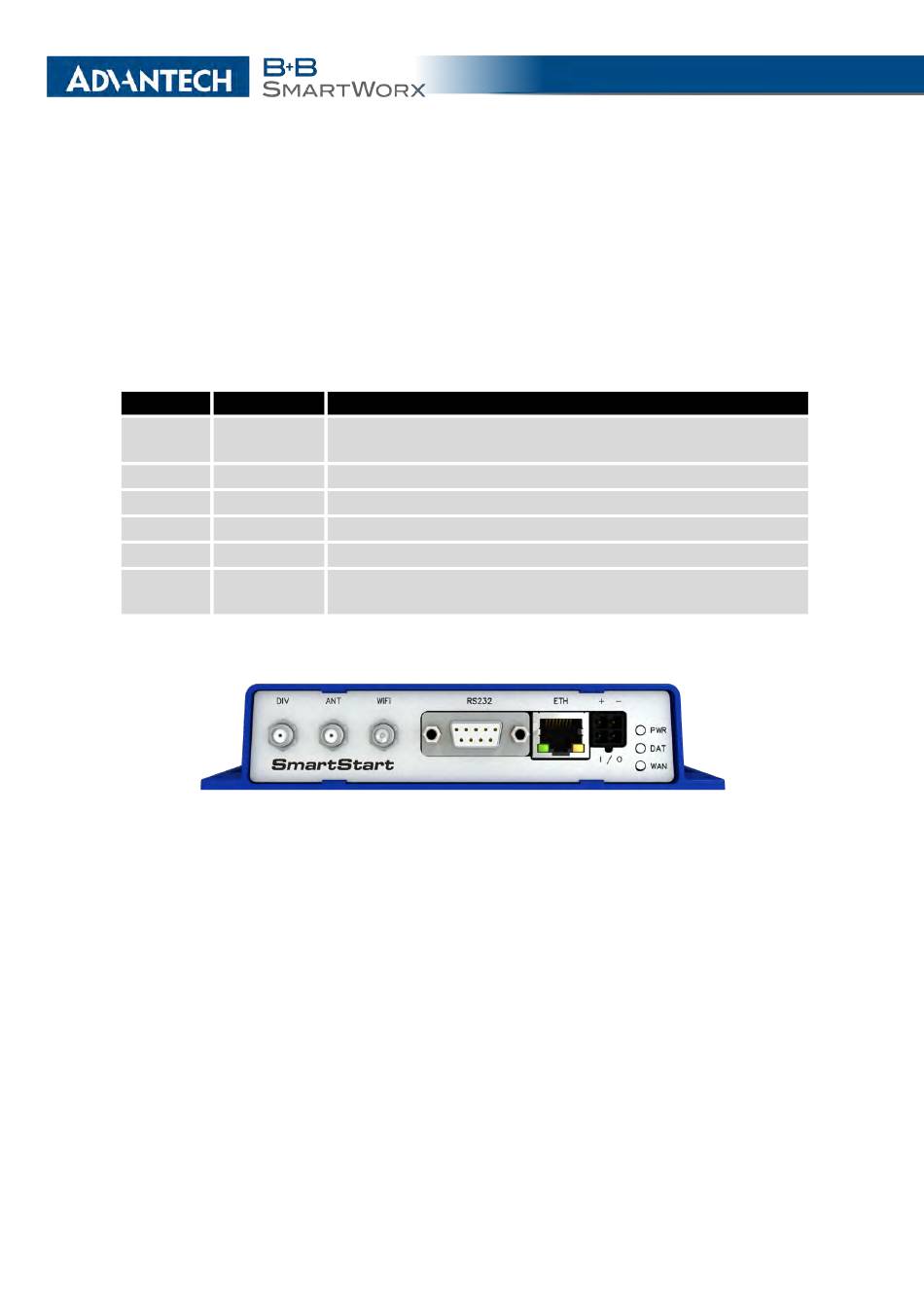

Figure 12: SmartStart front panel
14
5. ROUTER DESIGN
