(Continued)
7
Check Your Setup
If your device is connected and configured correctly, you
will see the following LED Status:
COMM:
Red / Blinking Red
LINK:
Green
POST:
Green
POWER: Blue
8
Troubleshooting
LED
Color
Airborne Device State
Off
Adapter is not powered.
POWER
Blue
Adapter is powered.
Off
Adapter is not powered.
Adapter failed Power On Self Test ("POST") and is not configured for
Red
wireless communication.
POST
Adapter passed POST but is not configured for wireless network
Amber
communication.
Green
Adapter passed POST and is configured for wireless communication.
Off
Adapter is not powered.
(Periodic Blinking) Adapter is searching for a valid network
Red / Off
(Access Point) that matches device's configuration.
LINK
Green
Adapter has successfully associated with an Access Point.
If Power LED is also Off, then Adapter is not powered.
Off
If Power LED is On then, No TCP session from WLAN or Ethernet
interface has been established.
COMM
Red /
Blinking
A TCP connection has been established.
Red
Document Number: 710-11429-00_r1_ABDx-ER-IN50xx_2720qsg

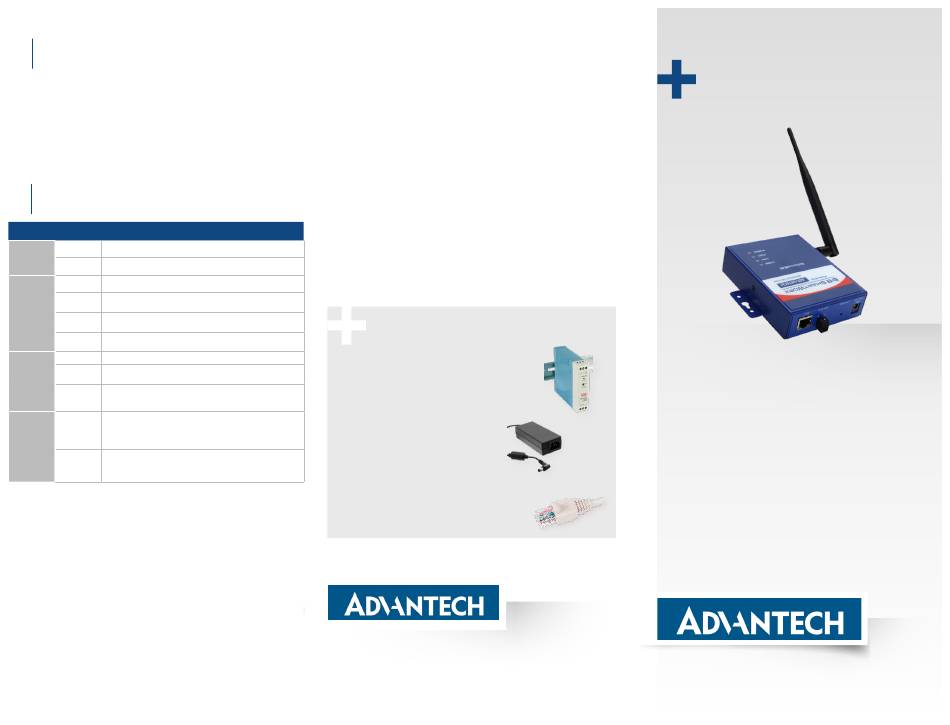

Recommended Accessories
120VAC / 5VDC Power Supply
Model# BB-MDR-20-24
or
Power Supply
with appropriate cord
(North America, EU, UK)
Model# BB-PS-WDS
Ethernet Cable
Model# BB-C5UMB10FBG
www.advantech.com
1 (888) 948-2248
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350
Phone: 1 (815) 433-5100 | Fax: 1 (815) 433-5109
e-mail: support@advantech-bb.com
QUICK START
GUIDE
BB-ABDN-ER-IN5010

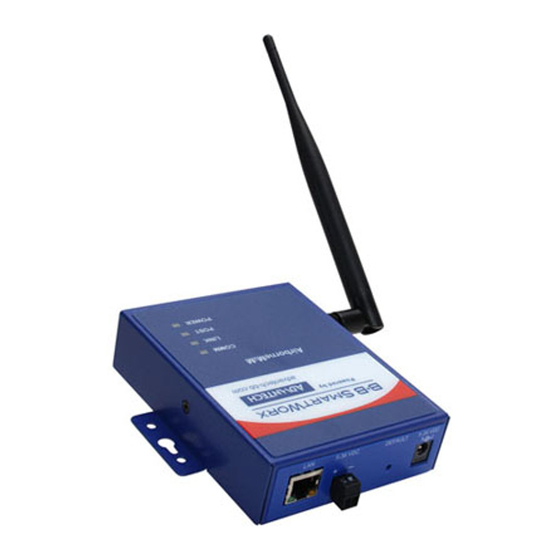

Industrial Wireless Ethernet Bridge/Router
Before you begin, be
sure you have the following:
+ Wireless Ethernet Bridge/Router Product
(BB-ABDN-ER-IN5010)
+ CD with Airborne™ Management Center
software
+ 50 Ohm, omni-directional antenna
+ 5-36VDC power for terminal block or
a 5VDC power supply (not included)
www.advantech.com
Fast and easy on the web:
