5.6 Removing from the DIN Rail

DIN holder is suitable for DIN rail according to EN 60715 standard only. Default position
of CKD-SBD23 holder, which is used for mounting the router on a DIN rail, is shown in the
following figure:
For removing from the DIN rail it is necessary to lightly push upward the router so that the
top part of the CKD-SBD23 holder hitched to the DIN rail get out of this rail and then fold out
the top part of the router away from the DIN rail.

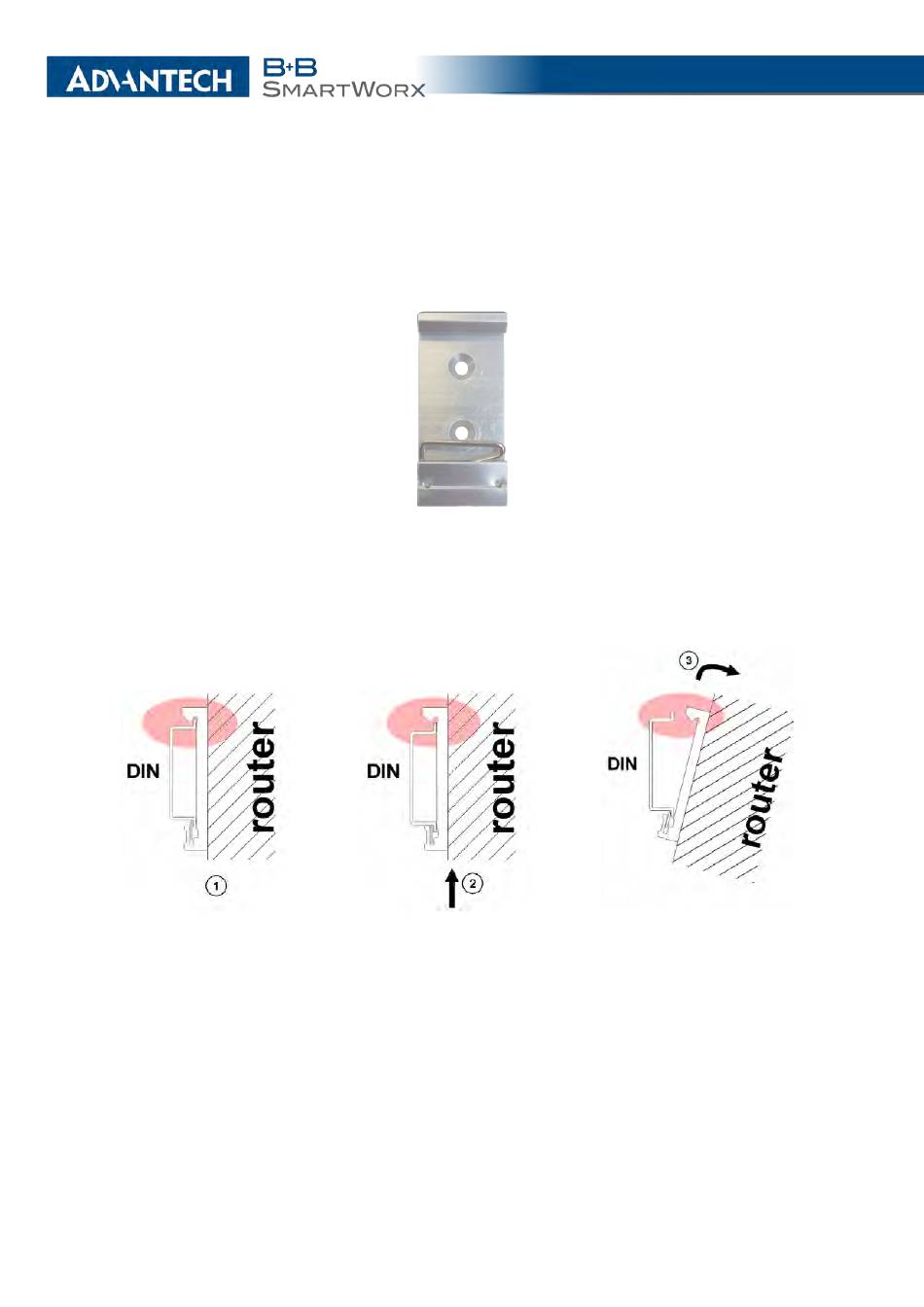

Figure 10: Default position of DIN holder
Figure 11: Removing from the DIN rail
