3. Router Design
3.8 Description of the Rear Panel
The rear panel contains two holders for SIM cards (SIM1, SIM2) and RST button used to restore the
default configuration followed by rebooting of the router. Picture with the rear view of the router is on figure
??. Description of resetting procedure is described in chapter ??.
3.9 Description of the Front Panel
On the front panel is the following:
Caption
Connector
PWR/IO
4-pin
ETH
RJ45
RS232
DB9 female
ANT
SMA
DIV
SMA
WiFi
R-SMA
SmartStart SL305 Hardware Manual
Description
Connector for the power supply and connection of the binary
input and output.
Connector for connection into the computer network.
Connector for serial interface RS232.
Connector for main antenna.
Connector for diversity antenna.
Connector for WiFi antenna (only for versions with WiFi
module!).
Table 5: Front panel description

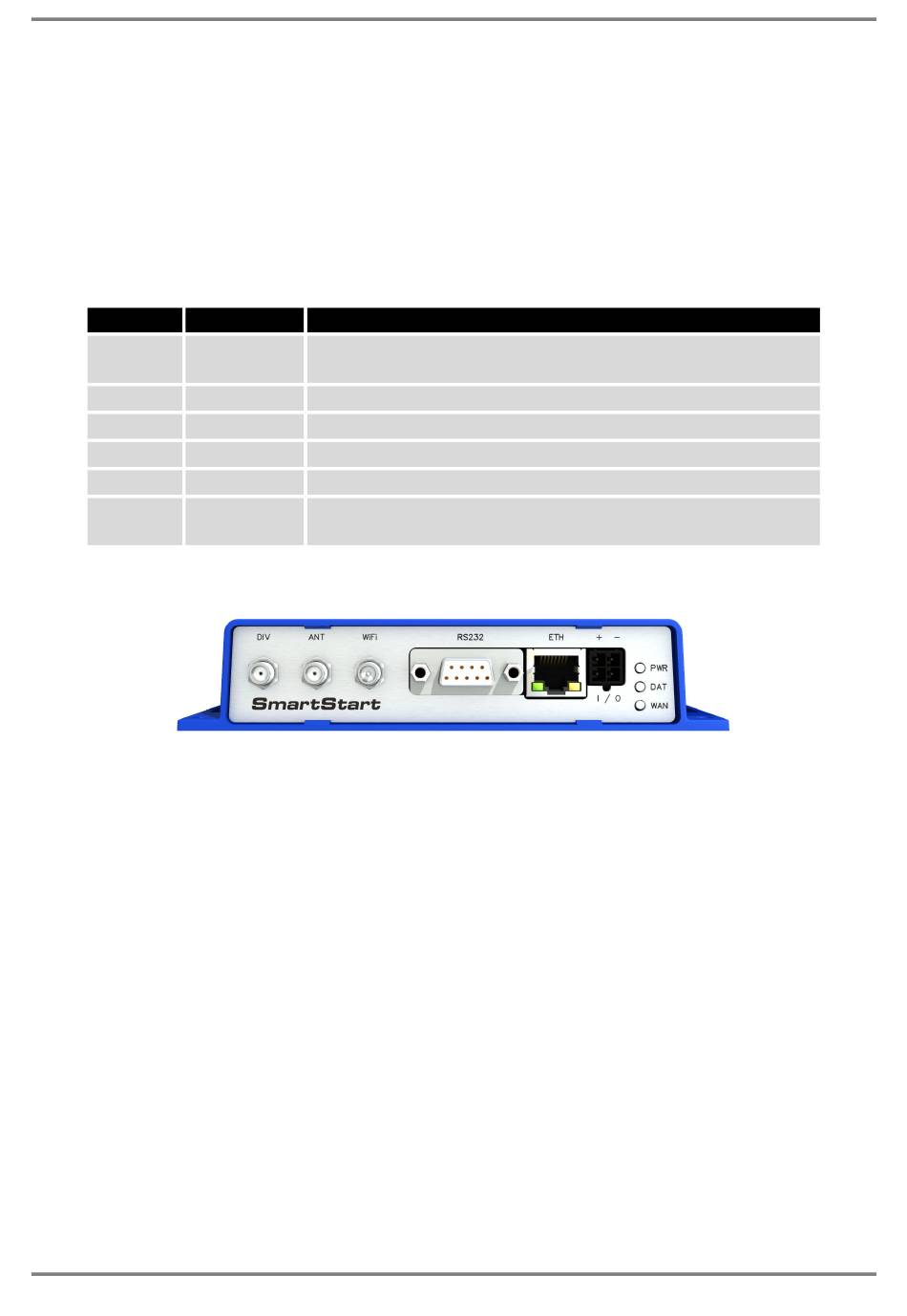

Figure 14: SmartStart front panel
