- Page 1 LAN Industrial Router ICR-2701 USER MANUAL...
- Page 2 ICR-2701 c 2022 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and does not represent a commitment on the part of Advantech.
- Page 3 Information, notice – Useful tips or information of special interest. GPL licence Source codes under GPL licence are available at https://icr.advantech.cz/source-code address. Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0069-EN, revision from June 28, 2022. Released in the Czech Republic.
-
Page 4: Table Of Contents
ICR-2701 Contents 1 Product Overview 1.1 Product Introduction ....... . . - Page 5 ICR-2701 List of Figures Hardware Overview of the Router ......Metal box – Front View .
- Page 6 ICR-2701 List of Tables Hardware Overview of the Router ......Order Codes Overview ....... .
-
Page 7: Product Overview
ICR-2701 1. Product Overview 1.1 Product Introduction Industrial router ICR-2701 is LAN Router & Edge Computing Gateway focused on the global market. The router, which may have a metal or plastic box, is equipped with two independently configurable Ethernet ports, with one USB 2.0 host interface and with 5 LEDs for status indication. -
Page 8: Hardware Overview

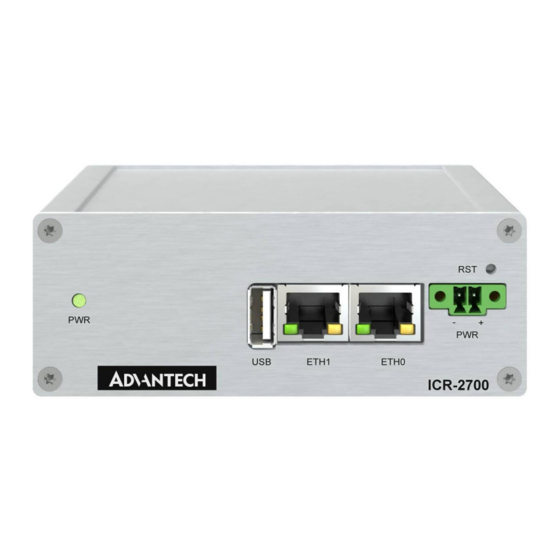

ICR-2701 1.2 Hardware Overview The router case preview is shown in Figure 1. A short description of hardware parts of the router is listed in Table 1, including the links to the chapters with a detailed description. For a router in a plastic box, the description of the components is similar. -
Page 9: Order Codes
ICR-2701 1.3 Order Codes Order codes overview is shown in the table below. Order code Configuration ICR-2701 metal box, ETH0, ETH1, USB ICR-2701P plastic box, ETH0, ETH1, USB ICR-2701A01 metal box, ETH0, ETH1, USB, accessories with Ethernet cable, two an-... -
Page 10: Package Contents
ICR-2701 1.4 Package Contents The standard router set includes items listed in Table 1: For other optional accessories, see Table 2. Item# Figure Q’ty Description 1 pcs Router in metal or plastic box 1 set DIN rail clip with screws... -
Page 11: Other Accessories
ICR-2701 Table lists items that may be included as accessories or can be ordered separately. See Chapter for more information. Description Figure Ethernet cross cable of length 1.5 m. It can be ordered separately under BB-KD-ETH part number. Wall mount power supply, 12V/1A with EU plug.It can be ordered separately under BB-RPS-v2-EU part number. -
Page 12: Product Dimensions
ICR-2701 1.5 Product Dimensions For the dimensions of the product in metal and plastic boxes see the figures below. Note that all sizes are measured in millimeters. Figure 1: Metal box – Front View Figure 2: Metal box – Top View... -
Page 13: Plastic Box - Front View
ICR-2701 Figure 3: Plastic box – Front View Figure 4: Plastic box – Top View... -
Page 14: Mounting Recommendations
ICR-2701 1.6 Mounting Recommendations The router can be placed: on a flat surface, on a DIN rail EN 60715 with the metal DIN rail clip (see Chapter 1.7) For most applications with a built-in router within a switchboard, it is possible to recognize... -
Page 15: Din Rail Mounting
ICR-2701 1.7 DIN Rail Mounting The DIN rail clip is suitable for a DIN rail according to EN 60715 standard only. There are four possible positions of the clip as shown in Figure 5. The DIN rail clip is the same for the metal and plastic router box. It just differs by the crews used. -
Page 16: Product Label
ICR-2701 1.8 Product Label An example of the product label, with all the information printed on it, is in the figure below. Figure 7: Label Example... -
Page 17: Hardware Functionality
ICR-2701 2. Hardware Functionality See Chapter for the product hardware overwiew. Table lists a short description of the hardware, including the links to the chapters with a detailed description. 2.1 Ethernet Interfaces The panel socket of RJ45 is used for Ethernet interface. The pinout of the socket is shown in Figure and described in Table 3. -
Page 18: Power Supply
ICR-2701 2.2 Power Supply The pins of power supply are physically connected to the 6-pin terminal block panel socket located on the left panel. The connection of power supply is shown in Figure and described in Table 4. Figure 2: Connection of Power Supply... -
Page 19: Usb Port
ICR-2701 2.3 USB Port There is one USB 2.0 host port with socket of USB-A type. USB Mass Storages and FTDI serial converters are supported. For a piece of advice, how to fix an unsupported FTDI chip, see the Commands and Scripts application note, chapter How to Use Unsupported FTDI Chip. -
Page 20: Led Status Indication
ICR-2701 2.4 LED Status Indication There are LED indicators on the front panel of the router to provide router status informa- tion. Moreover, ETH connector, has two additional LEDs providing information about the port status. Caption Color State Description Green... -
Page 21: Reset Functions
ICR-2701 2.5 Reset Functions The RST button on the front panel can be used in three different situations: Reboot the router: Hold the RST button for less than 4 seconds, the router will be restarted. Factory reset – restore the default configuration: Hold the RST button for more than 4 seconds. -
Page 22: Overview Of Router Reboot And Reset
ICR-2701 Action Router behavior Trigger events – options Reboot Turns off and then Disconnect and reconnect the power. turns on the router Press the Reboot menu item in the web interface. Press the RST button and hold il less than 4 sec- onds. -
Page 23: First Use
ICR-2701 3. First Use 3.1 Powering up the Router The router will start up when a power supply is connected to it. The DHCP server will assign an addresses to the devices connected through the Ethernet port ETH0. 3.2 Router Configuration Initial router configuration can be made via a web browser running on your PC. -
Page 24: Router's Web Interface
ICR-2701 Figure 6: Router’s Web Interface A detailed description of the router settings in the web interface can be found in the configura- tion manual of the router. -
Page 25: Technical Specifications
ICR-2701 4. Technical Specifications 4.1 Basic Parameters Router parameters Temperature range Operating -40 C to +75 C Storage -40 C to +85 C Humidity Operating 5 to 95 % relative humidity non condensing Storage 5 to 95 % relative humidity non condensing... -
Page 26: Standards And Regulations
ICR-2701 4.2 Standards and Regulations The router complies with the following standards and regulations: Standards and regulations EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 61000-6-2, EN 61000-6-3, EN 55032 Safety IEC 62368-1, IEEE 802.3... -
Page 27: Type Tests And Environmental Conditions
ICR-2701 4.3 Type Tests and Environmental Conditions Phenomena Test Description Test levels EN 61000-4-2 Enclosure 6 kV, L3 8 kV, L3 RF field AM EN 61000-4-3 Enclosure 20 V/m, 80 MHz – 1 GHz, LX modulated 10 V/m, 1 GHz – 6 GHz, L3... -
Page 28: System Configuration
ICR-2701 4.4 System Configuration The main parametes of the system are listed in Table 11. Other technical parameters CPU architecture ARM926EJ-S CPU frequency 600 MHz CPU power 4,72 DMIPS/MHz Flash memory 4 MB of NOR 4 096 MB of eMMC... -
Page 29: Appendix A: Troubleshooting
ICR-2701 Appendix A: Troubleshooting If you cannot connect to the router from your PC, your network card may be configured in such a way that it is not possible to connect to the router. Take one or more of the following steps in order to solve the problem: Make sure your PC’s network card is configured to obtain the IP address form the... - Page 30 ICR-2701 L2TP or IPSec isn’t establishing. Check the "System Log" page for error messages. IPSec tunnel establishes but the communication does not run. Probably there are bad routing rules defined in the connected devices, or the default gateway. Serial communication is not working.
-
Page 31: Appendix B: Customer Support
ICR-2701 Appendix B: Customer Support Customer Support for Europe Advantech Czech s.r.o. Sokolska 71 562 04, Usti nad Orlici, Czech Republic Phone: +353 91 792444 Fax: +353 91 792445 E-mail: iiotcustomerservice@advantech.eu Web: www.advantech.com Customer Support for NAM Advantech B+B SmartWorx... -
Page 32: Appendix C: Regulatory & Safety Information
ICR-2701 Appendix C: Regulatory & Safety Information Safety Notices Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. - Page 33 ICR-2701 Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) directive was in- troduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled.
-
Page 34: Appendix D: Related Documents
ICR-2701 Appendix D: Related Documents Quick Start Guide for v2i Platform Configuration Manual for v2i Platform [EP] Product-related documents and applications can be obtained on Engineering Portal at address. https://icr.advantech.cz/download... - Page 35 ICR-2701 We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Radio Equipment Regulations 2017 (S.I. 2017 1206) (WiFi version) and with the Electromagnetic Compatibility Regu- lations 2016 (S.I. 2016 No. 1091 and S.I. 2016 No.
