Used symbols Danger – Information regarding user safety or potential damage to the router. Attention – Problems that can arise in specific situations. Information – Useful tips or information of special interest.
4G/3G/2G predecessors, establishing them as the preferred solution for a broad spectrum of industrial applications. Perhaps the most notable benefit of the 5G and the ICR-4161 router series is the dramatically reduced latency. This decrease in data transmission delay ensures real-time responsiveness, making these routers particularly suitable for applications necessitating immediate feedback or interaction.
• This example demonstrates a common scenario where the cellular router facilitates access from a local LAN to the Internet via the cellular network. • This functionality is not available on LAN routers lacking a cellular interface. Figure 1: Cellular Internet Access ICR-4161 Hardware Manual...
1.2 Usage Examples Backup for Internet Access • This example showcases how a cellular router’s Internet access can be backed up. • Backup options include PPPoE connections, Ethernet wired connections or WiFi. Figure 2: Backup for Internet Access ICR-4161 Hardware Manual...
• This example highlights the establishment of a secure VPN tunnel for interconnecting the configured Advantech router with a router in a remote network, facilitated via the Internet. • The configured router connects to the Internet using the cellular network.

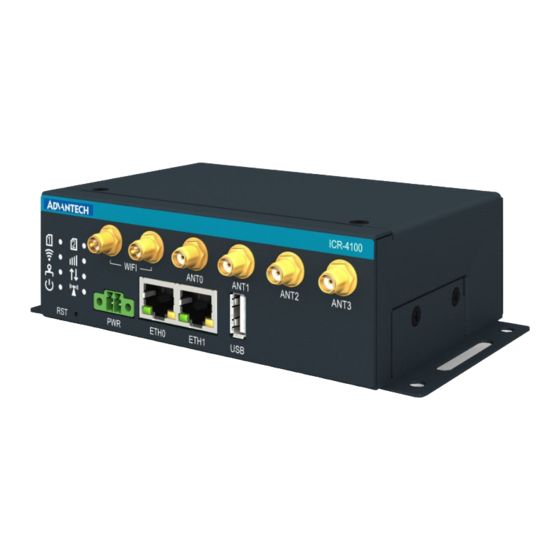

Chapter for WiFi parameters. The WiFi connector located on the right-hand side can be used for a Bluetooth antenna; see Chapter for more information and Chapter for Bluetooth parameters. Table 1: Router Hardware Overview: Front View ICR-4161 Hardware Manual...
Two Mini SIM card slots; details in Chapter 2.1. microSD Slot microSD MicroSD card slot; see Chapter 2.8. DIN Clip — DIN mounting clips, included as standard accessories; see Chapter 1.9. Table 2: Router Hardware Overview: Rear View ICR-4161 Hardware Manual...
Router (includes wall clips and a DIN 1 pc rail clip mounted on the router) 2-pin terminal block for power supply 1 pc (installed on the router) Printed Quick Start Guide Leaflet 1 pc Table 4: Contents of Package ICR-4161 Hardware Manual...
For the dimensions of the router see the figures below. Note that all sizes are measured in millimeters. Variant with Wall Mounting Clip Figure 6: Router Dimensions – Front, Top and Right view with Wall Mounting holder ICR-4161 Hardware Manual...
1. Product Overview 1.6 Product Dimensions Variant with DIN Rail Clip Figure 7: Router Dimensions – Front, Top and Right view with DIN holder ICR-4161 Hardware Manual...
• Data cables must not be bundled with mains voltage cables (230 V/50 Hz or 120 V/60 Hz). • Ensure sufficient space is left between each connector for cable handling. • For proper router functionality, use an earth-bonding distribution frame to ground the grounding screw (refer to Chapter 2.5). ICR-4161 Hardware Manual...
Each clip features two holes with a diameter of 5 millimeters for screw placement. For precise mounting dimensions, refer to Figure in Chapter 1.6. When attaching the wall mounting clips, tighten the screws with a maximum torque of 0.4 Nm. Figure 8: Rotated Wall Mounting Clips ICR-4161 Hardware Manual...
To remove the router from the DIN rail, lightly push down on the router to disengage the bottom part of the DIN rail clip from the rail. Then, pivot the bottom part of the router away from the DIN rail, as demonstrated in Figure 10. Figure 10: Removing Router from the DIN Rail ICR-4161 Hardware Manual...
1. Product Overview 1.10 Product Label 1.10 Product Label The figure below shows an example of the product labels with all the information printed on them. Figure 11: Product Label ICR-4161 Hardware Manual...
For this task, you may utilize the protrusion on the SIM card cover, which is indicated in the figure below. • Put the cover back and secure it with the two screws. Figure 12: SIM Cards Insertion ICR-4161 Hardware Manual...
3. Node-RED Applications: To achieve advanced Bluetooth functionalities, Node-RED and its Blue- tooth node can be employed. Similar to the Bluetooth Router App, Node-RED and the Node-RED Bluetooth node are available for installation. ICR-4161 Hardware Manual...
If recommended for the installation environment, protect the router by properly grounding it using the grounding screw, as depicted in Figure 15. The maximum tightening torque for the grounding screw is 1 Nm. Figure 15: Position of the Grounding Screw ICR-4161 Hardware Manual...
LPM power consumption in Chapter 4.1. The router can be awak- ened from this mode after a predefined period of time. To put the router into LPM mode, you can use the lpm command; for more information, refer to the Commands and Scripts application note. ICR-4161 Hardware Manual...
• To mount the card to the mnt directory, use the mount command: mount /dev/mmcblk0p1 /mnt For more information about the commands for creating, mounting, checking, and unmounting a file system on a microSD card, refer to the application note for the Ext4 Filesystem Utilities router app. ICR-4161 Hardware Manual...
Selected 1 Gbps bit rate. ETH1 Green Selected 100/10 Mbps bit rate. ETH0 Yellow The network cable is connected. ETH1 Yellow Brief off blinks Data transmission. Yellow The network cable is not connected. Table 9: LED Status Indication ICR-4161 Hardware Manual...
RST button for at least 10 seconds. This action will reset the router’s configuration to the default settings. Use a narrow screwdriver or any small tool to press the RST button. Figure 18: Resetting the Router ICR-4161 Hardware Manual...
All routers have the WebAccess/DMP client pre-installed by default. The activated client periodically uploads router identifiers and configuration to the WebAccess/DMP server. See the configuration manual [1], chapter Basic Information WebAccess/DMP Configuration, for more information. If the router’s label lacks a unique password, use the password root . ICR-4161 Hardware Manual...
Dimensions of device (w/o clips) 43 mm (5.12" 3.54" 1.39") DIN rail clip specification DIN 35 mm, EN 60715 Total weight for non-WiFi / WiFi 470 g (1.04 lbs) / 480 g (1.06 lbs) Table 10: Basic Parameters ICR-4161 Hardware Manual...
EN 60529, EN 60068-2-27, EN 60068-2-64 Climatic EN 60068-2-2, EN 60068-2-1, EN 60068-2-14, EN 60068-2-78 Transportation E-Mark (E8), homologation number: 10R - 06 14947 National CE, UKCA compliant Environmental REACH, RoHS3 and WEEE compliant Table 11: Standards and Regulations ICR-4161 Hardware Manual...
Vibration, broad- EN 60068-2-64 Spectrum A.3 cat 1, breakpoints A.6 cat 1 band random Shock EN 60068-2-27 50 m/s , 11 ms, half sine, 10 in each dir. Table 12: Type Tests and Environmental Conditions ICR-4161 Hardware Manual...
+2/-3 dB (Class 2) Continued on next page 5G NR FDD bands only support 15 kHz SCS, and NR TDD bands only support 30 kHz SCS. Supported bandwidth in the NSA and SA modes may differ for each frequency band. ICR-4161 Hardware Manual...
Also enable "Send all remaining incoming packets to default server" feature and fill in the IP address of your Web server. On the Web server, the default gateway has to be the IP address of the router. DynDNS doesn’t work. • With private APN this will not work. ICR-4161 Hardware Manual...
Page 41
I switched the router to offline mode by SMS message, but the router is in online mode after reboot. • SMS messages do not change the router configuration. They remain in effect only until the router is rebooted. ICR-4161 Hardware Manual...
Page 42
Web interface in "Configuration" section, "Services", "SSH". Then connect with any SSH client on port 22 of the router. User and password is the same as for the Web interface. Telnet on v2 routers can be enabled here: "Configuration" section, "Services", "Telnet". ICR-4161 Hardware Manual...
Page 43
+1-800-346-3119 (Monday – Friday, 7 a.m. to 5:30 p.m. CST) Fax: +1-815-433-5109 E-mail: support.iiot.ana@advantech.com Web: www.advantech.com Customer Support for Asia Phone: +886-2-2792-7818 #1299 (Monday – Friday, 9 a.m. to 5:30 p.m. UTC+8) Fax: +886-2-2794-7327 E-mail: icg.support@advantech.com.tw Web: www.advantech.com ICR-4161 Hardware Manual...
Page 44
At the end of it’s life this pro- duct MUST NOT be mixed with other commercial waste for disposal. The device contains a battery. Remove the battery from the device before disposal. The battery in the device needs to be disposed of apart accordingly. Check the terms and conditions of your supplier for disposal information. ICR-4161 Hardware Manual...
Page 45
Appendix D: Related Documents v4i Configuration Manual [EP] Product-related documents and applications can be obtained on Engineering Portal at https://icr.advantech.com/download address. ICR-4161 Hardware Manual...
Page 46
We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Directive 2014/53/EU. We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
