Summary of Contents for Advantech BB-SL30210110-XSWH

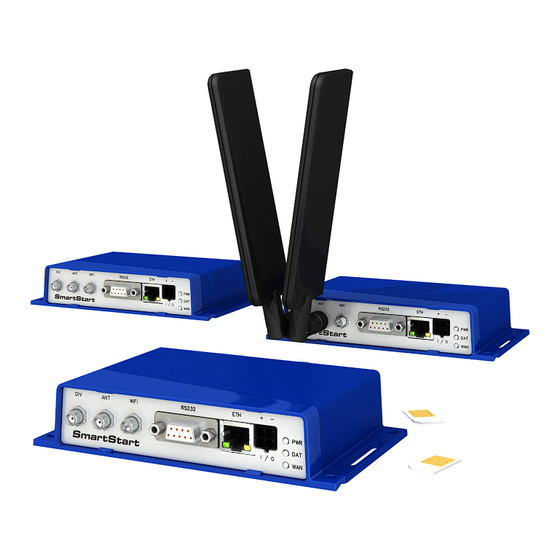

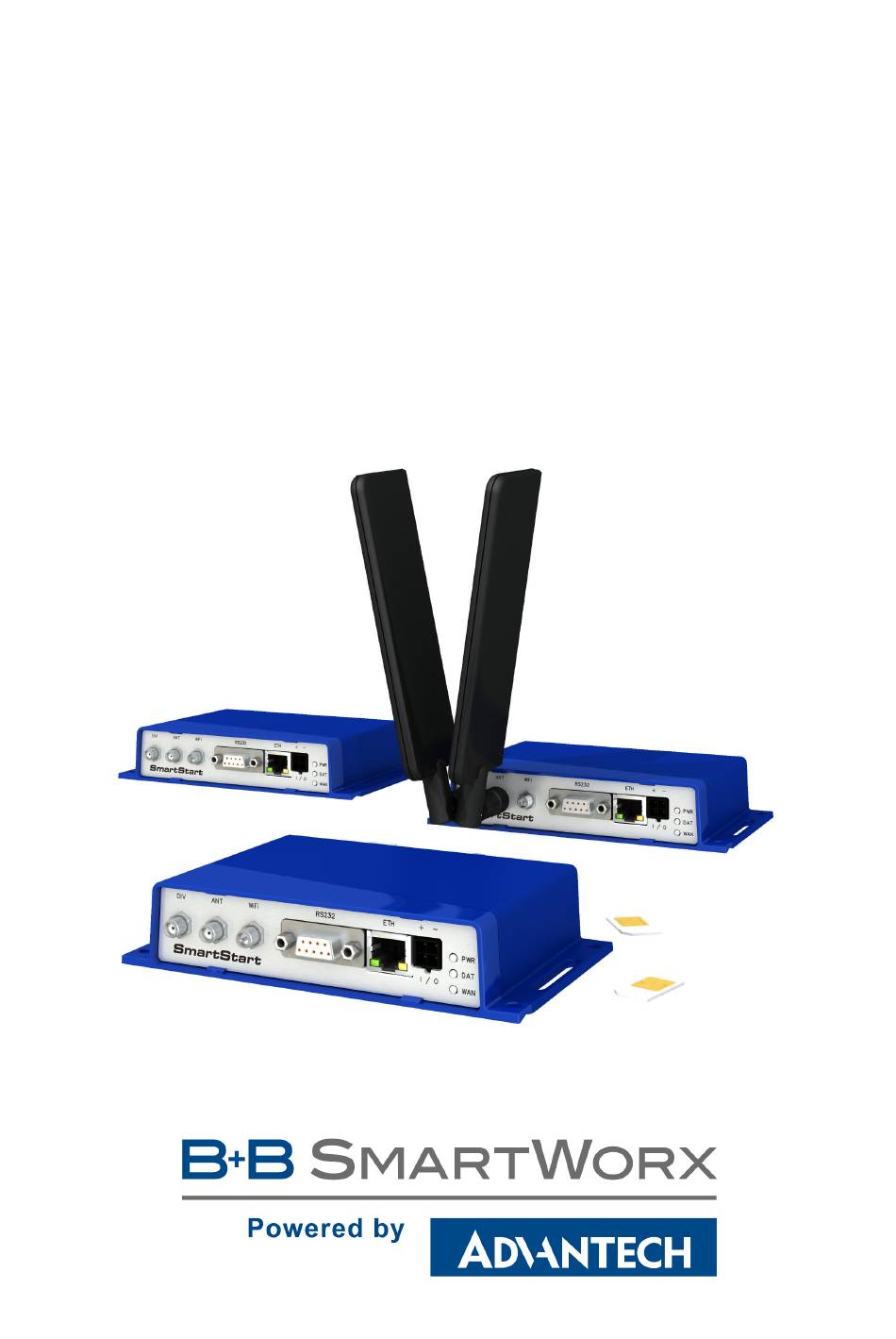

- Page 1 LTE Industrial Router SmartStart SL302 USER MANUAL...
- Page 2 Website www.advantech-bb.com c 2017 Advantech B+B SmartWorx s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and does not represent a commitment on the part of Advantech B+B SmartWorx.
-
Page 3: Used Symbols
Source codes under GPL licence are available free of charge by sending an email to: cellularsales@advantech-bb.com. Advantech B+B SmartWorx s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Manual Rev. 1 released in the Czech Republic, May 24, 2017... -
Page 4: Table Of Contents
SmartStart SL302 Contents 1 Safety Instructions 2 Directives & Statements 2.1 Product Disposal Instructions ......2.2 FCC Compliance Statement . - Page 5 SmartStart SL302 6.3 Configuration ........6.3.1 Configuration by web browser .
-
Page 6: List Of Figures
SmartStart SL302 List of Figures Access to the Internet from LAN ......Backed up access to the Internet . -
Page 7: List Of Tables
SmartStart SL302 List of Tables Router versions ........Delivery identification . -
Page 8: Safety Instructions
SmartStart SL302 1. Safety Instructions Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. To prevent possible injury and damage to appliances and to ensure compliance with all relevant provisions, use only the original accessories. -
Page 9: Directives & Statements
SmartStart SL302 2. Directives and Statements 2.1 Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive was intro- duced to ensure that electrical/electronic products are recycled using the best available recov- ery techniques in order to minimize impact on the environment. This product contains high quality materials and components which can be recycled. - Page 10 SmartStart SL302 Important: Changes or modifications to this product not authorized by Advantech B+B SmartWorx could void the electromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the product. This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices and shielded cables between system components.
-
Page 11: Router Description
SmartStart SL302 3. Router Description Cellular router SmartStart SL302 is designed for wireless communication in the mobile networks that make use of traditional cellular technologies. The primary purpose of this router is its use in the newest Category 1 (Cat.1) services on the cellular LTE network of the AT&T and Verizon carriers. -
Page 12: Usage Of The Router
SmartStart SL302 The router also supports additional software such as R-SeeNet for permanent traffic mon- itoring of routers. Examples of possible applications mobile office telematic smart meters for utilities telemetric fleet management remote monitoring security systems vending and dispatcher machines 3.4 Usage of the Router The router is primarily intended for these four basic situations: I. -
Page 13: Backed Up Access To The Internet
SmartStart SL302 II. Backed up access to the Internet (from LAN) Figure 2: Backed up access to the Internet III. Secure networks interconnection or using VPN Figure 3: Using a VPN tunnel... -
Page 14: Serial Gateway
SmartStart SL302 IV. Serial Gateway Figure 4: Serial Gateway... -
Page 15: Contents Of Package
SmartStart SL302 4. Contents of Package The basic router set available for delivery includes the following items: router, power and IO cable (1.5 m long), clip for the DIN rail (two screws are included), paper start guide. Figure 5: Contents of package 4.1 Recommended Accessories The following list contains recommended accessories. -
Page 16: Router Design
SmartStart SL302 5. Router Design 5.1 Router Versions The SmartStart SL302 router is supplied in the following versions (see table below). All versions are available only in plastic casing. Router versions SL302 with RS232 SL302 with RS232 & WiFi Table 1: Router versions Figure 6: Front panel... -
Page 17: Delivery Identification
SmartStart SL302 5.2 Delivery Identification Trade name Product name Other SL302 SmartStart LTE router (Cat.1) for NAM (AT&T and/or Verizon carrier - see order codes bellow) Table 2: Delivery identification Figure 8: Certification label Figure 7: Product label 5.3 Order Codes The table below shows an overview of order codes. -
Page 18: Basic Dimensions Of The Router
SmartStart SL302 5.4 Basic Dimensions of the Router 5.4.1 Front view Figure 9: Front view 5.4.2 Top view Figure 10: Top view... -
Page 19: Bottom View
SmartStart SL302 5.4.3 Bottom view Figure 11: Bottom view 5.4.4 Rear view Figure 12: Rear view... -
Page 20: Mounting Recommendations
SmartStart SL302 5.5 Mounting recommendations It is possible to place the router on a flat surface, mount the router on a wall using four holes in corners (Figure 11) and screws with diam- eter 4 mm, attach the router on DIN rail EN 60715 with the included clip BB-SBD25. The router meets EN 61439-1:2011 requirements/certifications for low-voltage switchgear and control gear assemblies. -
Page 21: Removal Of The Din Rail
SmartStart SL302 5.6 Removal of the DIN Rail The DIN holder is suitable for a DIN rail according to EN 60715 standard only. The default position of BB-SBD25 holder, which is used for mounting the router on a DIN rail, is shown in the following figure: Figure 13: Default position of DIN holder In order to remove the DIN rail it is necessary to lightly push the router upward so that the... -
Page 22: Description Of The Rear Panel
SmartStart SL302 5.7 Description of the Rear Panel The rear panel contains two holders for SIM cards (SIM1, SIM2) and RST button used to restore the default configuration followed by rebooting of the router. Picture with the rear view of the router is on figure 12. Description of resetting procedure is described in chapter 5.8.7. 5.8 Description of the Front Panel On the front panel is the following: Caption... -
Page 23: Status Indication
SmartStart SL302 5.8.1 Status indication There are three LED indicators on the front panel to provide router status information. The ETH port has two additional LEDs that provide information about the port status. Caption Color State Description Green Blinking Router is ready Starting of the router Fast blinking Updating firmware... -
Page 24: Power Pwr/Io Connector
SmartStart SL302 5.8.2 Power PWR/IO Connector Panel socket 4-pin. Pin number Signal mark Description GND(-) Negative pole of DC supply voltage VCC(+) Positive pole of DC supply voltage (+9 to +36 V DC, 1 A) Binary input OUT0 Binary output Table 6: Connection of PWR / IO connector Figure 16: PWR / IO connector Unit has to be supplied by a power supply specified as a Limited Power Source (LPS) accord-... -
Page 25: Characteristics Of Binary Input
SmartStart SL302 The PWR / IO interface is also designed for the processing of binary input and control (setting) of binary output. Binary Input logical 0 / 1 Voltage Web interface status logic 0 0 – 0.7 V logic 1 1.6 –... -
Page 26: Antenna Connector Ant, Div And Wifi
SmartStart SL302 5.8.3 Antenna Connector ANT, DIV and WiFi The main and diversity antennas are connected to the router using the SMA connector on the front panel. There is also an R-SMA antenna connector available, through which an additional antenna can be connected, if the router is equipped with a WiFi module. The ANT connector is used to connect the main antenna to the router. -
Page 27: Sim Card Reader
SmartStart SL302 5.8.4 SIM Card Reader The SmartStart SL302 contains two readers for 3 V and 1.8 V SIM cards, which are located on the rear panel of the device. In order for the router to function, it is necessary to insert an activated SIM card with an unblocked PIN code. -
Page 28: Ethernet Port Eth
SmartStart SL302 5.8.5 Ethernet Port ETH The panel socket RJ45 is used for this interface. The Ethernet isolation is 1500 V. Signal mark Description Data flow direction TXD+ Transmit Data – positive pole Input/Output TXD- Transmit Data – negative pole Input/Output RXD+ Receive Data –... -
Page 29: Serial Port Rs232
SmartStart SL302 5.8.6 Serial Port RS232 This interface is physically connected through the DB9 Female connector. Signal mark Description Data flow direction Data Carrier Detect Output Receive Data Output Transmit Data Input Data Terminal Ready Input System Ground — Data Set Ready Output Request to Send Input... -
Page 30: Reset
SmartStart SL302 5.8.7 Reset When the PWR LED starts flashing on the front panel, it is possible to restore the de- fault configuration of the router by pressing the RST button on the rear panel. After pressing this button, the default configuration will be restored and the router will reboot (after which the green LED will be on). -
Page 31: First Use
SmartStart SL302 6. First Use 6.1 Connecting the Router Before the First Use Before putting the router into operation it is necessary to connect all of the components that are required to run your applications. Don’t forget to insert a SIM card. The router can not operate without a connected antenna, SIM card and power supply. -
Page 32: Start
SmartStart SL302 6.2 Start The router will start when a power supply is connected to the router. By default, the router will automatically start to log on to the default APN. The DHCP server will start to assign addresses for devices connected through the Ethernet port ETH. These router behaviors can be changed via the web interface. -
Page 33: Router Web Interface
SmartStart SL302 Once the login information are entered successfully, the user will have access to the router’s web interface via the web browser. Figure 27: Router web interface A detailed description of the router settings in the Web interface can be found in the Configuration manual for SmartStart. -
Page 34: Technical Parameters
SmartStart SL302 7. Technical Parameters 7.1 Basic Parameters SmartStart Temperature range Operating -40 C to +75 C Storage -40 C to +85 C Humidity Operating 0 to 95 % relative humidity non condensing Storage 0 to 95 % relative humidity non condensing Altitude Operating 2000 m / 70 kPa... -
Page 35: Standards And Regulations
SmartStart SL302 7.3 Standards and Regulations The router complies with the following standards and regulations. Standards and regulations Industrial FCC 15.107 Class B, FCC 15.109 Class B, PTCRB, IEC 61000-6-2:2005 Safety EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, EN 62311:2008 Carrier approvals AT&T, Verizon... -
Page 36: Technical Parameters Of Cellular Module
SmartStart SL302 Continued from previous page Phenomena Test Description Test levels Vibration EN 60068-2-64 ed. 2 Transport. box 3 axis, 1 hour per axis DIN rail 3 axis, 0.5 hour per axis direct mounting 3 axis, 8 hours per axis Shock EN 60068-2-27 ed. -
Page 37: Technical Parameters Of Wifi
SmartStart SL302 7.6 Technical Parameters of WiFi WiFi Antenna connector R-SMA – 50 Ohms Supported WiFi band 2.4 GHz Standards 802.11b, 802.11g, 802.11n 2.4 GHz supported channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 RX Sensitivity 11b, 11 Mbps: typ. -
Page 38: Recommended Literature
8. Recommended Literature Advantech B+B SmartWorx: Start Guide for SmartStart, Advantech B+B SmartWorx: SmartStart Configuration Manual, Advantech B+B SmartWorx: Commands and Scripts. -
Page 39: Troubleshooting
9. Troubleshooting If you cannot connect to the router from your PC, your network card may be configured in such a way that it is not possible to connect to the router. Take one or more of the following steps in order to solve the problem: Set the communication rate to 10 MB/s in the properties of your network card. - Page 40 Ethernet connection fails or isn’t establishing. It is possible to turn auto negotiation off and set a rate and duplex manually on the Ethernet interface of the router. DynDNS doesn’t function. With private APN this is not functional. If the same IP address is recorded in your canonic name as a dynamically assigned address, it means that the operator is using NAT or a firewall.
-
Page 41: Customers Support
10. Customers Support 10.1 Customer Support for NAM Phone: +1-800-346-3119 (Monday – Friday, 7 a.m. to 5:30 p.m. CST) Fax: +1-815-433-5109 E-mail: support@advantech-bb.com Web: www.advantech-bb.com 10.2 Customer Support for Europe Phone: +353 91 792444 Fax: +353 91 792445 E-mail: techSupport@advantech-bb.com Web: www.advantech-bb.com...
