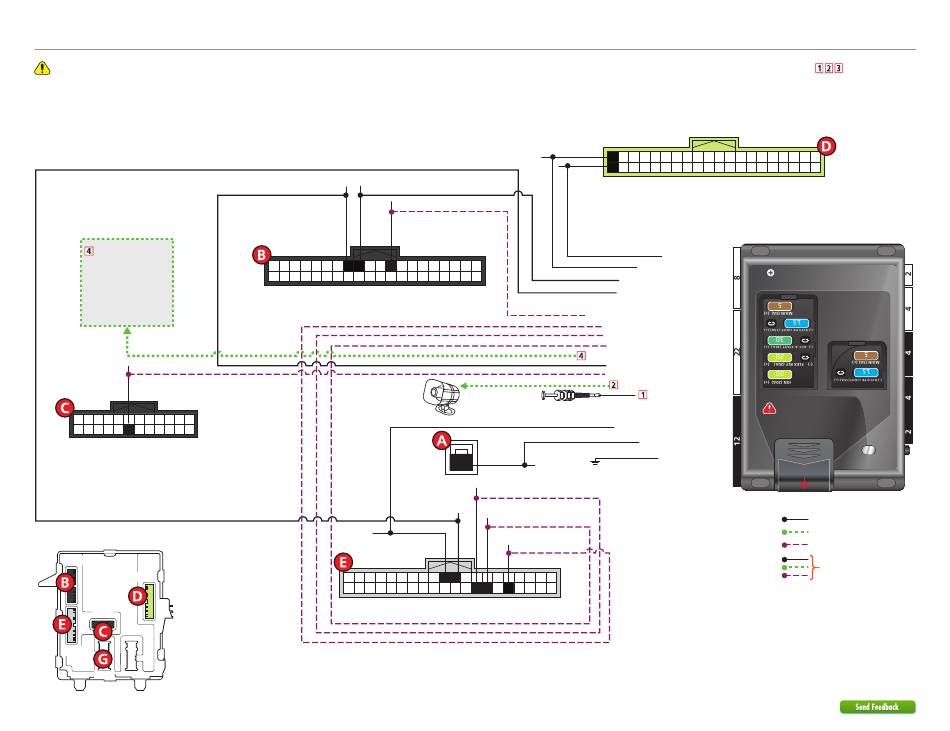

Wiring diagram

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Refer to the
Optional starter
disable
connection
section for relay
and connection
details.
(-) Starter:
Blue, pin 19
12 11
10 9 8 7 6 5 4 3 2 1
24 23 22 21 20 19 18 17 16 15 14 13
BCM Connector E29
(black conn. at BCM)
BCM
M19
B16
E29
M18
M10
6 933.NISS06 3.23.195.3 2019 Nissan Qashqai (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
(-) Disarm:
Pink, pin 13
(-) PTS:
(-) Arm:
Red,
Brown,
pin 9
pin 12
13 12 9
20 19 18 17 16 15 14 11 10
8 7 6 5 4
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
BCM Connector M19
(black conn. at BCM)
Siren
White conn.
(back of dash
fuse box)
(-) Lock:
Gray, pin 10
(-) Hazards:
Lavender/Yellow, pin 11
11 10
20 19 18 17 16 15 14 13 12
40 39 38 37 36 35 34 33 32 31 30 29
BCM Connector M18
(grey conn. at BCM)
BCM Connector B16 (green conn. at BCM)
HS CAN High: Blue
or Lavender/Blue, pin 20
20
19 18
40
39 38
HS CAN Low: Pink
or Lavender/Pink,pin 40
2 1
3
(-) Arm Output: Orange/Black: 7
(-) Lock Output: Yellow/Black: 8
(-) Push-to-Start Output: Lt.Green/Black: 1
(-) Accessory 2 Output: Blue/White: 2
(-) Accessory Output: Brown/Black: 5
(-) Ignition Output: Brown/White: 6
(+) Starter Disable Output: Violet/Black: 8
(-) Disarm Output: Dk. Blue/Black: 9
(-) Starter Output: Lt. Blue/Black: 10
(+) Siren Output: Brown/Red: 11
Hood Pin
(-) Hazards Output: White: 5 & 11
(+) 12V:
1
Blue, pin 1
(-) Accessory 1:
Lavender/Blue, pin 28
(-) Ignition:
Lavender/L.t Green, pin 27
(-) Accessory 2:
Lavender/Pink, pin 25
9 8 7 6 5 4 3 2 1
28 27 25
26 24 23 22 21
17
16 15 14 13 12 11 10
9 8 7 6 5 4 3 2 1
37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
HS CAN Low: Tan: 1
HS CAN High: Tan/Black: 2
A module can also be used for
this installation.
(-) Hood Input: Gray: 21
IMPORTANT:
Position the
fuses correctly!
(+) 12V Input: Red: 6 & 12
(-) Ground: Black: 10
Slide to open
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
).
