Locating components in the vehicle

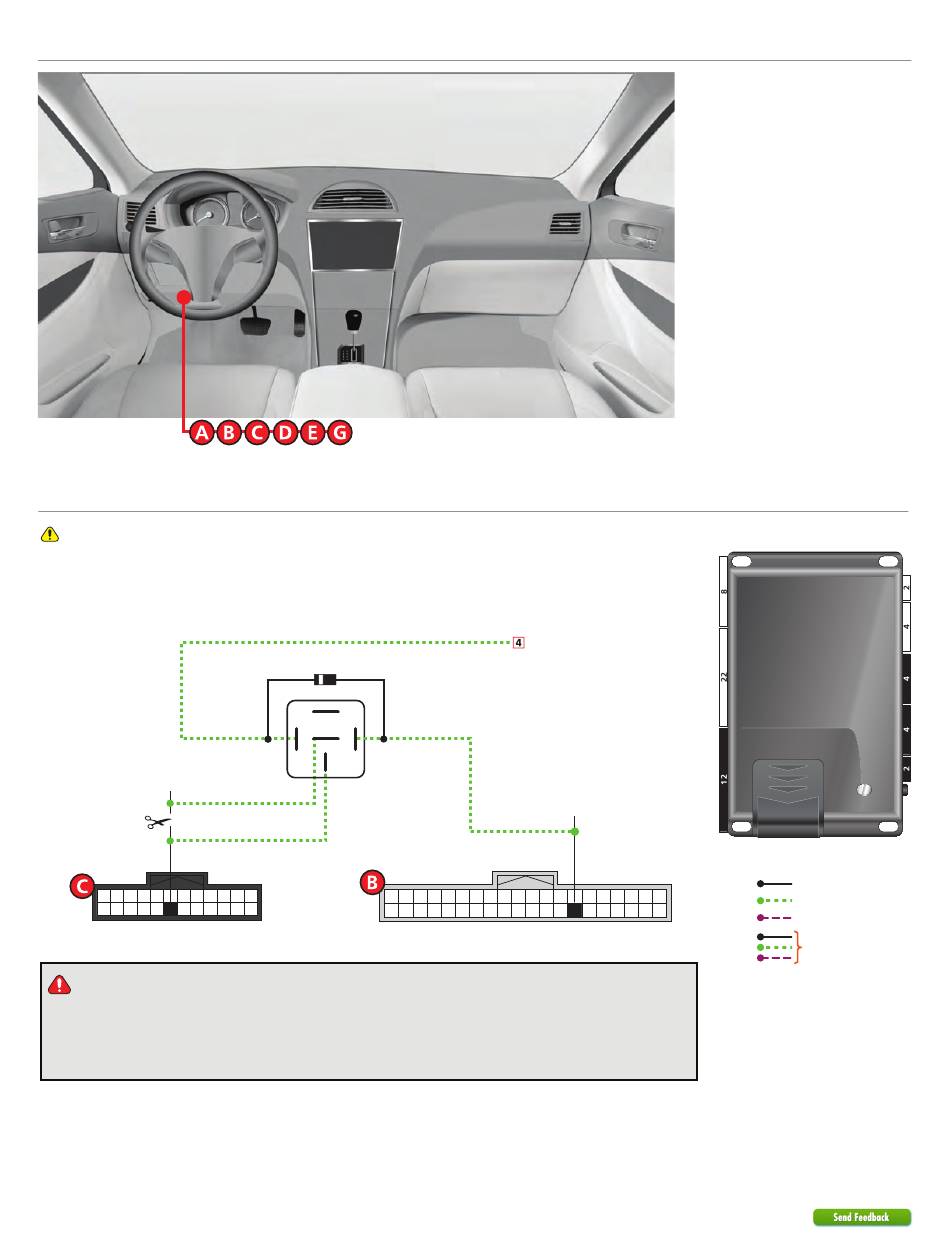

Optional starter disable connection
When using an external relay, use a 1N4002 diode or larger.
Cut
(-) Starter: Green
or Blue, pin 19
12 11 10 9 5 4
8 7 6
24 23 22 21 20 19 18 17 16
BCM Connector E29
(Black conn. at BCM)
Important: When flashing your module for Security Only, the Ground When Armed (GWA)
function is pre-configured. When flashing your module for Remote Start & Security, you must
manually assign the designated output to Anti Grind (AG) Starter Kill.
(Applicable to CORE 194+.)
7
933.NISS06 3.23.195.3 2019 Nissan Qashqai (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
1A Diode (1N4002+)
87
87a
86 85
30
2 20
3 1
15 14 13 40
(+) Starter Disable Output: Violet/Black: 8
(-) Ignition: Yellow or
Lavender/L.t Green, pin 27
19 18 17 16 15 14 13 12 11 10 9
8 7
39 38 37 36 35 34 33 32 31 30 29 28 27
BCM Connector M18
(Grey conn. at BCM)
Legend:
6 5 4 3 2 1
26 25 24 23 22 21
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
