Wiring Diagram - Directed DIRECTWIRE DIRECTECHS DB3 Installation Manual

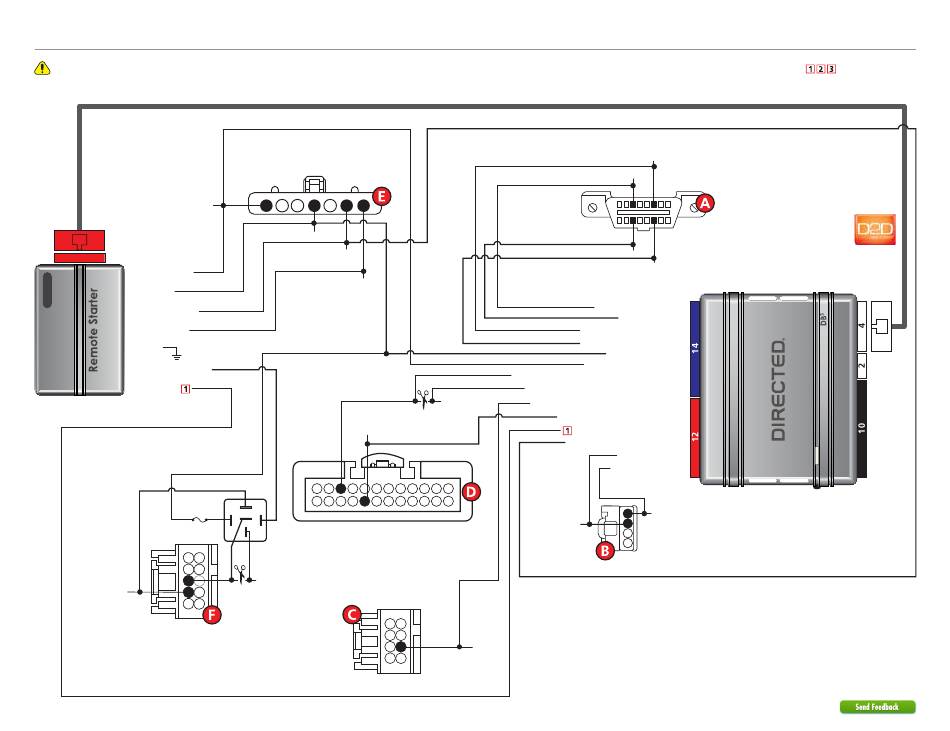

Wiring diagram

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
(+) Ignition:
Brown/Yellow,
pin 1
D2D Port
(+) Ignition Output
(+) 12V Input
(+) Accessory Output
(+) Starter Output
(-) Ground
(-) Parking Lights Output
(AC) Tach Input
Fuse 5A
5 10
4 9
3
8
2 7
(-) Parking Light:
1 6
Yellow/Blue, pin 2
Headlight Switch
(gray connector at headlight switch)
6 403.FORD7 2.13 2012 Ford Fiesta
©2023 VOXX•DEI LLC. All rights reserved.
Ignition Switch
(black connector at ignition switch)
1 2 3 4 5 6 7
(+) 12V: Red, pin 4
(+) Accessory:
Violet/Green, pin 6
(+) Starter:
Blue/White, pin 7
Driver Door
(-) Trunk Release:
Trigger:
Green/White, pin 20
Green/Violet,
pin 10
12 11 10 9 8 7 5 4 3 2 1
6
24 23 22 21 20 19 18 17 16 15 14 13
87
85
87a
86 C2280G
30
(gray connector at BCM, behind glove box)
Cut
Door Lock Switch
Parking Lights Interrupt:
(black connector)
Black/Gray, pin 3
4 8
3
7
2
6
5
1
MS CAN High: Gray/Orange, pin 3
MS CAN Low: Violet/Orange, pin 11
MS CAN High: Tan/Black: 3
HS CAN High: Orange/Green: 5
HS CAN Low: Orange/Brown: 6
(+) Ignition Output: Yellow: 8
RAP Off Interrupt (connector side): Orange/Red: 10
Cut
RAP Off Interrupt (vehicle side): Yellow/Red: 11
(-) Lock/Unlock Toggle Output: Black/White: 1
(-) Trunk Release Output: Red/Black: 4
(AC) Tach Output: Violet/White: 5
(+) Accessory Output: Gray/Black: 7
TX:
Yellow/Orange,
pin 3
(-) Lock/Unlock Toggle:
Brown/White, pin 6
OBDII
Diagnostic Connector
HS CAN High: White/Blue, pin 6
1 8
9 16
HS CAN Low: White, pin 14
MS CAN Low: Tan: 4
(+) 12V Input: Brown: 7
TX: Yellow/Black: 10
RX: Oranage/Black: 11
RX:
Violet/Gray,
4
pin 4
3
2
P.A.T.S. Transceiver
1
(black connector at ignition switch)
).
XKD2D65
