System Configuration

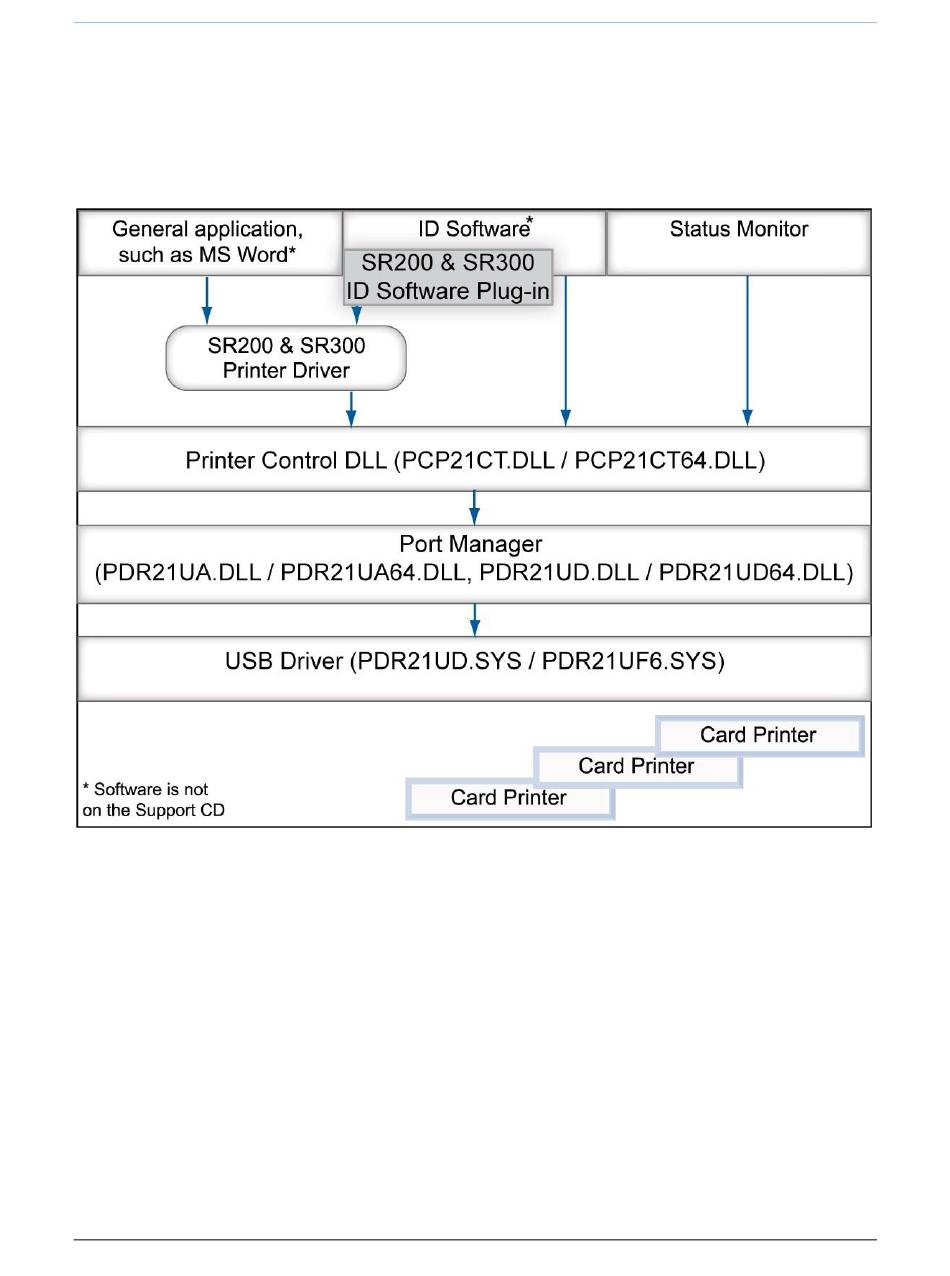

The following diagram shows the software components and their relationships.
Items with a gray background are not included with the SR200 or SR300 printer
and Support CD. Software components with a white background are installed from
the Support CD.
Tips for success
♦
Typically, the printer driver causes the printer to pick the card, and then
encodes and prints. If a card is already in the printer, the printer driver
processing is done to the card in the printer. By using the Printer Control DLL,
you can perform processes such as smart card encoding before the printer
driver's process.
♦
If you use both the Printer Control DLL and the printer driver, disable the
Windows Spooler. The Printer Control DLL controls the card printer directly,
and can cause conflicts with any printing data in the spooler.
