HIKVISION DS-K3B961TX-L User Manual

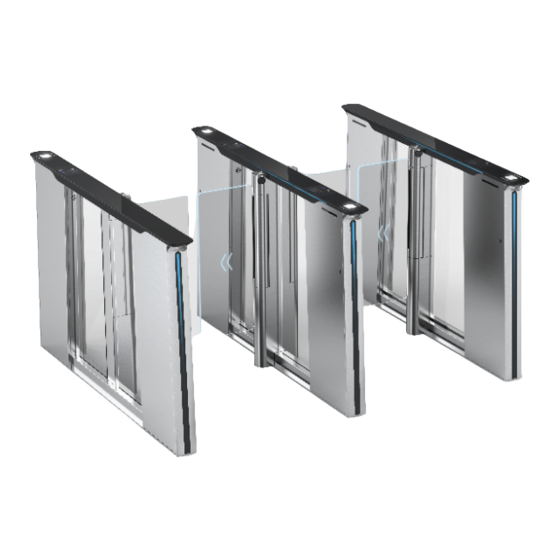

Swing barrier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DS-K3B961TX Series Swing Barrier
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K3B961TX-L and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-K3B961TX-L

Summary of Contents for HIKVISION DS-K3B961TX-L

  • Page 1 DS-K3B961TX Series Swing Barrier User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K3B961TX Series Swing Barrier User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 DS-K3B961TX Series Swing Barrier User Manual This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 6 DS-K3B961TX Series Swing Barrier User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
  • Page 7 DS-K3B961TX Series Swing Barrier User Manual Do not ingest battery, Chemical Burn Hazard. ● This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children.
  • Page 8 DS-K3B961TX Series Swing Barrier User Manual Please keep all wrappers after unpack them for future use. In case of any failure occurred, you ● need to return the device to the factory with the original wrapper. Transportation without the original wrapper may result in damage on the device and lead to additional costs. Improper use or replacement of the battery may result in hazard of explosion.
  • Page 9 DS-K3B961TX Series Swing Barrier User Manual Available Models Product Name Model Description Swing Barrier DS-K3B961TX-L Left Pedestal DS-K3B961TX-M Middle Pedestal DS-K3B961TX-R Right Pedestal viii...

  • Page 10: Table Of Contents

    DS-K3B961TX Series Swing Barrier User Manual Contents Chapter 1 Overview ........................1 1.1 Introduction ........................... 1 1.2 Main Features ........................1 1.3 Light Description ........................2 Chapter 2 System Wiring ......................4 Chapter 3 Installation ......................... 9 Chapter 4 General Wiring ......................10 4.1 Components Introduction ....................
  • Page 11 DS-K3B961TX Series Swing Barrier User Manual 5.3 Initialize Device ........................30 Chapter 6 Activation ......................... 33 6.1 Activate via Device ....................... 33 6.2 Activate via Web Browser ....................34 6.3 Activate via SADP ......................... 35 6.4 Activate Device via iVMS-4200 Client Software ..............36 Chapter 7 Operation via Web Browser ..................
  • Page 12 DS-K3B961TX Series Swing Barrier User Manual 7.8.14 Set Video and Audio Parameters ................51 7.8.15 Customize Audio Content ..................53 7.8.16 Set Image Parameters ....................55 7.8.17 Event Linkage ......................56 7.8.18 General Settings ......................57 7.8.19 Access Control Settings ..................... 62 7.8.20 Turnstile ........................
  • Page 13 DS-K3B961TX Series Swing Barrier User Manual 8.5.2 Add Template ......................89 8.6 Set Access Group to Assign Access Authorization to Persons ..........90 8.7 Configure Advanced Functions .................... 92 8.7.1 Configure Device Parameters ..................93 8.7.2 Configure Other Parameters ..................100 8.8 Door/Elevator Control ......................

  • Page 14: Chapter 1 Overview

    DS-K3B961TX Series Swing Barrier User Manual Chapter 1 Overview 1.1 Introduction The flap barrier with two barriers and 24 IR lights is designed to detect unauthorized entrance or exit. By adopting the flap barrier integratedly with the access control system, person should authenticate to pass through the lane via swiping IC or ID card, scanning QR code, etc.

  • Page 15: Light Description

    DS-K3B961TX Series Swing Barrier User Manual Custom broadcasting content ● LED indicates the entrance/exit and passing status ● White indicators for card and QR code authentication; ● Red and green arrow indicators; Adjustable brightness and color of entrance light and side light IR emergency mode and Custom Anti-pinch for Door Closing ●...
  • Page 16 DS-K3B961TX Series Swing Barrier User Manual Card Light The card light will stay white when the device detects people approaching until people pass through. Arrow Light The arrow light stays off when the device is on standby mode. ● The light on the right side will flash green ready for authentication. ●...

  • Page 17: Chapter 2 System Wiring

    DS-K3B961TX Series Swing Barrier User Manual Chapter 2 System Wiring The preparation before installation and general wiring. Steps Note The device should be installed on the concrete surface or other non-flammable surfaces. ● If the installation area is too close to the wall, make sure the distance between the pedestal and ●...
  • Page 18 DS-K3B961TX Series Swing Barrier User Manual The dimension is as follows. ●...
  • Page 19 DS-K3B961TX Series Swing Barrier User Manual Figure 2-1 Dimension 1. Draw a central line on the installation surface of the left or right pedestal. Note If the installation area is near the wall, make sure the central line is at least 78.5 mm away from the wall, or you cannot open the pedestal's top panel.
  • Page 20 DS-K3B961TX Series Swing Barrier User Manual Figure 2-2 Hole Position Diagram 4. Bury cables. Each lane buries 1 network cable, 1 high voltage cable and 1 low voltage cable. For details, see the system wiring diagram below.
  • Page 21 DS-K3B961TX Series Swing Barrier User Manual Figure 2-3 System Wiring Diagram (General Wiring) Note The supplied interconnecting cable length is 5.5 m. ● The suggested inner diameter of the low voltage conduit is larger than 30 mm. ● If you want to bury both of the AC power cord and the low voltage cable, the two cables ●...

  • Page 22: Chapter 3 Installation

    DS-K3B961TX Series Swing Barrier User Manual Chapter 3 Installation 1. Before installation, you should disassemble the pedestal with the key. 2. Keep the disassembled components and make sure the accessories are intact. 3. Prepare for system wiring and installation. For details, see System Wiring . 4.

  • Page 23: Chapter 4 General Wiring

    DS-K3B961TX Series Swing Barrier User Manual Chapter 4 General Wiring Note When you should maintain or disassemble the high voltage modules, you should remove the ● entire high voltage modules and maintain it outside the turnstile. You should unplug the cables that connected to the peripherals before maintenance to avoid destroy of the device.
  • Page 24 DS-K3B961TX Series Swing Barrier User Manual Figure 4-1 Components Diagram Note For details about wiring arrangement, refers to the actual device. The picture displayed below describes the IR adapter and the IR sending/receiving module and their corresponding number on the pedestal.

  • Page 25: Wiring

    DS-K3B961TX Series Swing Barrier User Manual Figure 4-2 IR Modules Note For details about wiring arrangement, refers to the actual device. ● If the turnstile contains two lanes, standing at the entrance position, the IR modules on the left ● pedestal are the IR sending modules.

  • Page 26: Terminal Description

    DS-K3B961TX Series Swing Barrier User Manual 4.3 Terminal Description The lane controller contains main lane controller and sub lane controller, which controls the IR beams, motor, and other components' work. 4.3.1 Main Lane Control Board Terminal Description The main lane control board contains debugging port, access control board communication interface, power interface, supercapacitor, IR adapter and ArrowBoard interface, encoder interface, power supply for motor, brake interface, user extended interface board BUS, and interconnecting interface.

  • Page 27: Sub Lane Control Board Terminal Description

    DS-K3B961TX Series Swing Barrier User Manual Figure 4-3 Main Lane Control Board Terminal 4.3.2 Sub Lane Control Board Terminal Description The sub lane control board contains debugging port, access control board communication interface, power interface, supercapacitor, IR adapter and ArrowBoard interface, encoder interface, power supply for motor, brake interface, sub user extended interface board BUS and interconnecting interface.

  • Page 28: Main Access Control Board Terminal Description

    DS-K3B961TX Series Swing Barrier User Manual Figure 4-4 Sub Lane Control Board Terminal 4.3.3 Main Access Control Board Terminal Description The main access control board contains screen adapter interface, sensor interface, loudspeaker interface, IR light interface, user extended interface board and lane control board communication interface, antenna interface, network switch interface, sub access control board interface, power interface, card reader board interface, TF card slot, initialization button, debugging port and USB flash drive interface.

  • Page 29: Sub Access Control Board Terminal Description

    DS-K3B961TX Series Swing Barrier User Manual Figure 4-5 Main Access Control Board Terminal 4.3.4 Sub Access Control Board Terminal Description The sub access control board contains screen adapter interface, sensor interface, loudspeaker interface, IR light interface, user extended interface board and lane control board communication interface, sub access control board interface, power interface, card reader board interface, TF card slot, initialization button, debugging port and USB flash drive interface.
  • Page 30 DS-K3B961TX Series Swing Barrier User Manual Figure 4-6 Sub Access Control Board Terminal...

  • Page 31: Main User Extended Interface Board

    DS-K3B961TX Series Swing Barrier User Manual 4.3.5 Main User Extended Interface Board Figure 4-7 Main User Extended Interface Main User Extended Interface Description I2C Interface Reserved Event Input CASE1 Event Alarm Input 1 CASE2 Event Alarm Input 2...
  • Page 32 DS-K3B961TX Series Swing Barrier User Manual Main User Extended Interface Description Grounding RS-232 Interface 232RX Connect to Card Reader RS- 232RX 232TX Connect to Card Reader RS- 232TX RS-485 485- Connect to Card Reader RS485- 485+ Connect to Card Reader RS485+ Wiegand Card Reader 12 V...
  • Page 33 DS-K3B961TX Series Swing Barrier User Manual Main User Extended Interface Description Power Output 3 5VOUT1 5 VDC Power Output 1 5VOUT1 5 VDC Power Output 2 Grounding Exit Button Door Signal Input Grounding Fire Input ALARM IN Fire Alarm Input Grounding...

  • Page 34: Sub User Extended Interface Board

    DS-K3B961TX Series Swing Barrier User Manual 4.3.6 Sub User Extended Interface Board Figure 4-8 Sub User Extended Interface Main User Extended Interface Description Event Input CASE1 Reserved CASE2...
  • Page 35 DS-K3B961TX Series Swing Barrier User Manual Main User Extended Interface Description RS-232 Interface 232RX Connect to Card Reader RS- 232RX 232TX Connect to Card Reader RS- 232TX RS-485 485- Connect to Card Reader RS485- 485+ Connect to Card Reader RS485+ Wiegand Card Reader 12 V 12 VDC Power Input...

  • Page 36: User Core Board Terminal Description

    DS-K3B961TX Series Swing Barrier User Manual 4.3.7 User Core Board Terminal Description The user core board terminal contains network interface, BUS, USB card reader interface, access control board communication interface, card receiver and RS-485 card reader interface, power interface, programming interface and debugging port. The picture displayed below is the user core board diagram.

  • Page 37: Wiring

    DS-K3B961TX Series Swing Barrier User Manual Figure 4-10 RS-485 Wiring 4.3.9 RS-232 Wiring Note The main and sub user extended interface board each has two RS-232 interface. Figure 4-11 RS-232 Wiring 4.3.10 Wiegand Wiring...

  • Page 38: Barrier Control Wiring

    DS-K3B961TX Series Swing Barrier User Manual Note Connect the OK/ERR/BZ if the access controller should control the LED and buzzer of the Wiegand card reader. 4.3.11 Barrier Control Wiring According to the barrier control interfaces and the internal relays, the device provides 2 groups of the barrier control signals on the main user extended interface board, including 1 remaining open interface and 1 remaining closed interface.

  • Page 39: Alarm Input Wiring

    DS-K3B961TX Series Swing Barrier User Manual Figure 4-14 Alarm Output Wiring 1 Figure 4-15 Alarm Output Wiring 2 4.3.13 Alarm Input Wiring On the main user extended interface board, you can wire the fire alarm input interface. Figure 4-16 Remaining Open...
  • Page 40 DS-K3B961TX Series Swing Barrier User Manual Figure 4-17 Remaining Closed...

  • Page 41: Chapter 5 Device Settings

    DS-K3B961TX Series Swing Barrier User Manual Chapter 5 Device Settings After installation and wiring completed, the turnstile will study the open and closed position automatically. After the learning, the turnstile is in the normal mode. You can also set the turnstile to study mode, normal mode, and pair the keyfob, initialize the hardware via the main user extended interface board (middle/right pedestal).

  • Page 42: Pair Keyfob (Optional)

    DS-K3B961TX Series Swing Barrier User Manual 5. Set the No.1 switches of the 4-digit DIP Switch on the main user extended interface board by referring to the following figure. Figure 5-2 Normal Mode 6. Power on the device again. Note For details about the DIP switch value and meaning, see DIP Switch Description.

  • Page 43: Initialize Device

    DS-K3B961TX Series Swing Barrier User Manual Figure 5-3 Enable Keyfob Paring Mode 3. Power on the turnstile and it will enter the keyfob pairing mode. 4. Hold the Close button for more than 10 seconds. The keyfob's indicator of the will flash twice if the pairing is completed. 5.
  • Page 44 DS-K3B961TX Series Swing Barrier User Manual Figure 5-4 Initialization Button Position 2. Power off and reboot the device. The device buzzer buzzes a long beep. 3. When the beep stopped, release the initialization button. Caution The initialization of the device will restore all the parameters to the default setting and all the device events are deleted.
  • Page 45 DS-K3B961TX Series Swing Barrier User Manual Note Make sure no persons are in the lane when powering on the device. The initialization is completed.

  • Page 46: Chapter 6 Activation

    DS-K3B961TX Series Swing Barrier User Manual Chapter 6 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported. The default values of the device are as follows: The default IP address: 192.0.0.64 ●...

  • Page 47: Activate Via Web Browser

    DS-K3B961TX Series Swing Barrier User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 48: Activate Via Sadp

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 49: Activate Device Via Ivms-4200 Client Software

    DS-K3B961TX Series Swing Barrier User Manual 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP. 3) Input the admin password and click Modify to activate your IP address modification. 6.4 Activate Device via iVMS-4200 Client Software For some devices, you are required to create the password to activate them before they can be added to the iVMS-4200 software and work properly.

  • Page 50: Chapter 7 Operation Via Web Browser

    DS-K3B961TX Series Swing Barrier User Manual Chapter 7 Operation via Web Browser 7.1 Login You can login via the web browser or the remote configuration of the client software. Note Make sure the device is activated. For detailed information about activation, see Activation . Login via Web Browser Enter the device IP address in the address bar of the web browser and press Enter to enter the login page.
  • Page 51 DS-K3B961TX Series Swing Barrier User Manual You can view the status of the access control board, lane control board, extended interface board, side light board, IR adaptors and camera. Peripheral You can view the status of the RS-485 card reader, USB card reader and tamper input. Temperature You can view the pedestal temperature and the status of the motor encoder.

  • Page 52: Live View

    DS-K3B961TX Series Swing Barrier User Manual You can view the status of the access control board, lane control board, side light board, IR adaptors and camera. Peripheral You can view the status of the RS-485 card reader, RS-232 card reader, USB card reader and tamper input.

  • Page 53: Person Management

    DS-K3B961TX Series Swing Barrier User Manual Select the image size when starting live view. Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds. You can capture image when starting live view. Reserved function.

  • Page 54: Import Blocklist

    DS-K3B961TX Series Swing Barrier User Manual Set Start Time and End Time and the person can only has the permission within the configured time period. If you enable Always Valid,the permission time setting is not required. Click OK to save the settings. Set Access Control Click User →...

  • Page 55: Search Event

    DS-K3B961TX Series Swing Barrier User Manual 7.6 Search Event Click Search to enter the Search page. Figure 7-4 Search Event Enter the search conditions, including the event type, the employee ID, the name, the card No., the start time, and the end time, and click Search. The results will be displayed on the right panel.

  • Page 56: Device Management

    DS-K3B961TX Series Swing Barrier User Manual 7.7 Device Management You can manage the linked device on the page. Steps 1. Click Device Management to enter the settings page. 2. Click All to view the Device Type, Card Reader ID, Activation Status, Registration Status, IP Address, Gateway, Subnet Mask, Communication Port, Serial No., MAC Address and PoE Port.

  • Page 57: View Device Information

    DS-K3B961TX Series Swing Barrier User Manual 7.8.2 View Device Information View the device name, language, model, serial No., version, number of channels, IO input, IO output, Local RS-485, alarm input, alarm output, and device capacity, etc. Click Configuration → System → System Settings → Basic Information to enter the configuration page.

  • Page 58: Set Dst

    DS-K3B961TX Series Swing Barrier User Manual By default, the device time should be synchronized manually. You can set the device time manually or check Sync. with Computer Time to synchronize the device time with the computer's time. 7.8.4 Set DST Steps 1.
  • Page 59 DS-K3B961TX Series Swing Barrier User Manual Figure 7-7 Upgrade and Maintenance Page Click Reboot to start reboot the device. Restore Parameters Click Configuration → System → Maintenance → Upgrade & Maintenance . Restore All All parameters will be restored to the factory settings. You should activate the device before usage.

  • Page 60: Log Query

    DS-K3B961TX Series Swing Barrier User Manual Choose a module from the drop-down list and click Export. Upgrade Click Configuration → System → Maintenance → Upgrade & Maintenance . Select a module from the drop-down list. Click and select the upgrade file from your local PC. Click Upgrade to start upgrading.
  • Page 61 DS-K3B961TX Series Swing Barrier User Manual Create and Install Self-signed Certificate Steps 1. Go to Configuration → System → Security → Certificate Management . 2. In the Certificate Files area, select a Certificate Type from the drop-down list. 3. Click Create. 4.

  • Page 62: Change Administrator's Password

    DS-K3B961TX Series Swing Barrier User Manual 7.8.10 Change Administrator's Password Steps 1. Click Configuration → User Management . 2. Click 3. Enter the old password and create a new password. 4. Confirm the new password. 5. Click OK. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 63 DS-K3B961TX Series Swing Barrier User Manual Figure 7-8 TCP/IP Settings Page Set the parameters and click Save to save the settings. DHCP If you disable the function, you should set the IPv4 address, IPv4 subnet mask, IPv4 default gateway, and DNS server. If you enable the function, the system will allocate the IPv4 address, IPv4 subnet mask, the IPv4 default gateway and DNS server automatically.

  • Page 64: Set Video And Audio Parameters

    DS-K3B961TX Series Swing Barrier User Manual Select network card from the drop-down list. NIC Type Select a NIC type from the drop-down list. By default, it is Auto. DNS Server Set the preferred DNS server and the Alternate DNS server according to your actual need. Set Port Parameters Set the HTTP, RTSP and HTTPS port parmaeters.
  • Page 65 DS-K3B961TX Series Swing Barrier User Manual Set Video Parameters Click Configuration → Video/Audio → Video . Figure 7-9 Video Settings Page Set the video channel, camera name, stream type, the video type, the resolution, the bitrate type, the video quality, the frame rate, the Max. bitrate, the video encoding, and I Frame Interval.

  • Page 66: Customize Audio Content

    DS-K3B961TX Series Swing Barrier User Manual Click Save to save the settings after the configuration. Set Audio Parameters Click Configuration → Video/Audio → Audio . Select the audio channel. You can also drag the block to adjust the device output volume. Click to enable Voice Prompt.
  • Page 67 DS-K3B961TX Series Swing Barrier User Manual 5. Set the time period when authentication succeeded. 1) Click Add. 2) Set the time duration. Note If authentication is succeeded in the configured time duration, the device will broadcast the configured content. 3) Set the audio content. If you choose TTS, you need to set the language and enter the prompt content of authentication success.

  • Page 68: Set Image Parameters

    DS-K3B961TX Series Swing Barrier User Manual 8. Click Save to save the settings. 7.8.16 Set Image Parameters Set the display settings, video standard, WDR, image adjustment, supplement light, and beauty. Steps 1. Click Configuration → Image . 2. Configure the parameters to adjust the image. Display Settings Set the entrance or exit display.

  • Page 69: Event Linkage

    DS-K3B961TX Series Swing Barrier User Manual 7.8.17 Event Linkage Set linked actions for events. Steps 1. Click Configuration → Event → Basic Event → Event Linkage to enter the page. Figure 7-11 Event Linkage 2. Set event source. - If you choose Linkage Type as Event Linkage, you need to select event types from the drop- down list.

  • Page 70: General Settings

    DS-K3B961TX Series Swing Barrier User Manual Enable Linked Audio Prompt and select the play mode. If you choose TTS, you need to set language and enter the prompt content. ● If you choose Audio File, you need to select an available audio file from the drop-down list ●...
  • Page 71 DS-K3B961TX Series Swing Barrier User Manual Figure 7-12 Authentication Settings Note The functions vary according to different models. Refers to the actual device for details. Click Save to save the settings after the configuration. Card Reader Select Entrance or Exit card reader from the drop-down list. Card Reader Type/Card Reader Description...
  • Page 72 DS-K3B961TX Series Swing Barrier User Manual Get card reader type and description. They are read-only. Enable Card Reader Enable the card reader's function. Authentication Select an authentication mode according to your actual needs from the drop-down list. Recognition Interval You can set the interval between 2 continuous recognition of a same person during the authentication.
  • Page 73 DS-K3B961TX Series Swing Barrier User Manual Go to Configuration → General → Privacy Event Storage Settings The event storage type is overwriting by default. The earliest 5% events will be deleted when the system detects the stored events has been over 95% of the full space. Authentication Settings Display Authentication Result You can check Face Picture, Name, and Employee ID, to display the authentication result.
  • Page 74 DS-K3B961TX Series Swing Barrier User Manual You can enable Verify Credential Locally. After enabling the function, the device will only verify the person's permission without the schedule template, etc. Access Control Mode The device works normally and will verify the person's permission to open the barrier. 2.

  • Page 75: Access Control Settings

    DS-K3B961TX Series Swing Barrier User Manual Enable CPU Card Enable CPU card and authenticating by presenting CPU card is available. CPU Card Read Content After enable the CPU card content reading function, the device can read the CPU card content. Enable ID Card Enable ID card and authenticating by presenting ID card is available.
  • Page 76 DS-K3B961TX Series Swing Barrier User Manual Figure 7-13 Door Parameters Settings Page Click Save to save the settings after the configuration. Door No. Select the device corresponded door No. Name You can create a name for the door. Open Duration Set the door unlocking duration.
  • Page 77 DS-K3B961TX Series Swing Barrier User Manual Figure 7-14 Serial Port Settings 2. Set Serial Port Position as Main Channel or Sub Lane Control Board. 3. Set the No., Baud Rate, Data Bit, Stop Bit and Parity. 4. Set the Peripheral Type as Card Receiver, QR Code Scanner or Disable. 5.

  • Page 78: Turnstile

    DS-K3B961TX Series Swing Barrier User Manual Steps Note Some device models do not support this function. Refer to the actual products when configuration. 1. Click Configuration → Access Control → Wiegand Settings . 2. Select Entrance or Exit. 3. Check Wiegand to enable the Wiegand function. 4.
  • Page 79 DS-K3B961TX Series Swing Barrier User Manual Figure 7-15 Basic Parameters 2. View the Device Type, Device Model and Working Status. 3. Set Barrier Material, Lane Width, Opening Barrier Speed and Closing Barrier Speed. 4. Set the passing mode. - If you choose General Passing, you can select the barrier status for the entrance and exit from the drop-down list.
  • Page 80 DS-K3B961TX Series Swing Barrier User Manual Figure 7-16 keyfob 2. View the keyfob working status. 3. Set Working Mode as One-to-One or One-to-Many. 4. Add keyfob. 1) Click Add and the keyfob adding window will pop up. 2) Enter the Name and Serial No.. 3) Check to enable Remain Open Permission at your actual needs.
  • Page 81 DS-K3B961TX Series Swing Barrier User Manual Enable Custom Anti-pinch for Door Closing Anti-pinch for door closing refers that the barrier will not close if the device has detected person in the lane. Only after the person walks out of the lane, the barrier will close. If you enable the function, you can shield parts of the IR beams for closing barrier in advance.
  • Page 82 DS-K3B961TX Series Swing Barrier User Manual Figure 7-19 Light Settings 2. Set side light. 1) Set Light Brightness as Auto or Manual. If you choose Manual, you can drag the block or enter the value to adjust the light brightness manually. 2) Set inductive, prohibited and auth.

  • Page 83: Set Biometric Parameters

    DS-K3B961TX Series Swing Barrier User Manual 3) Set the color of standby light, auth. completed light, auth. failed light and alarm light. 5. Click Save. Other Settings Set other parameters. Steps 1. Click Configuration → Turnstile → Other Settings to enter the page. 2.
  • Page 84 DS-K3B961TX Series Swing Barrier User Manual Note The functions vary according to different models. Refers to the actual device for details. Figure 7-20 Smart Settings Page Click Save to save the settings after the configuration. Face Recognition Mode Normal Mode Recognize face via the camera normally.
  • Page 85 DS-K3B961TX Series Swing Barrier User Manual Deep Mode The device can recognize a much wider people range than the normal mode. This mode is applicable to a more complicated environment. Enable Face Recognition If enabling the function, the device will start face recognition. Card Reader Choose the entrance or exit card reader from the drop-down list.
  • Page 86 DS-K3B961TX Series Swing Barrier User Manual Face without Mask Detection After enabling the face without mask detection, the system will recognize the captured face with mask picture or not. You can set face with mask1:N matching threshold, it's ECO mode, and the strategy.

  • Page 87: Set Theme

    DS-K3B961TX Series Swing Barrier User Manual Click Save to save the settings. Click to record videos or capture pictures. 7.8.22 Set Theme You can set the display mode and the sleep time for the device. Click Configuration → Theme → Theme . Click Entrance or Exit to set theme, Click Save.
  • Page 88 DS-K3B961TX Series Swing Barrier User Manual If you choose picture, you can click + in Picture area and select a picture from the material ● database to display on the device screen saver. If you choose welcome message, you can select the Template, and enter the main title and ●...

  • Page 89: Chapter 8 Client Software Configuration

    DS-K3B961TX Series Swing Barrier User Manual Chapter 8 Client Software Configuration You can call the hotline to get the iVMS-4200 client software installation package. 8.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 8-1 Flow Diagram of Configuration on Client Software...

  • Page 90: Device Management

    DS-K3B961TX Series Swing Barrier User Manual 8.2 Device Management The client supports managing access control devices and video intercom devices. Example You can control entrance & exit and manage attendance after adding access control devices to the client; you can perform video intercom with the indoor stations and door stations. 8.2.1 Add Device The client provides three device adding modes including by IP/domain, IP segment, and EHome protocol.
  • Page 91 DS-K3B961TX Series Swing Barrier User Manual Enter the device password. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 92: Reset Device Password

    DS-K3B961TX Series Swing Barrier User Manual 5. Open the exported template file and enter the required information of the devices to be added on the corresponding column. Note For detailed description of the required fields, refer to the introductions in the template. Adding Mode Enter 0 or 1 or 2.

  • Page 93: Manage Added Devices

    DS-K3B961TX Series Swing Barrier User Manual All the online devices sharing the same subnet will be displayed in the list. 3. Select the device from the list and click on the Operation column. 4. Reset the device password. - Click Generate to pop up the QR Code window and click Download to save the QR code to your PC.

  • Page 94: Group Management

    DS-K3B961TX Series Swing Barrier User Manual View Online User Click to view the details of online user who access the device, including user name, user type, IP address and login time. Refresh Device Click to refresh and get the latest device information. Information 8.3 Group Management The client provides groups to manage the added resources in different groups.

  • Page 95: Person Management

    DS-K3B961TX Series Swing Barrier User Manual 2. Click Device Management → Group to enter the group management page. 3. Select a group from the group list and select the resource type as Access Point, Alarm Input, Alarm Output, etc. 4. Click Import. 5.

  • Page 96: Import And Export Person Identify Information

    DS-K3B961TX Series Swing Barrier User Manual 8.4.2 Import and Export Person Identify Information You can import the information and pictures of multiple persons to the client software in a batch. Meanwhile, you can also export the person information and pictures and save them in your PC. Import Person Information You can enter the information of multiple persons in a predefined template (CSV/Excel file) to import the information to the client in a batch.
  • Page 97 DS-K3B961TX Series Swing Barrier User Manual 2. Select an added organization in the list, or click Add in the upper-left corner to add an organization and then select it. 3. Click Import to open the Import panel and check Face. 4.

  • Page 98: Get Person Information From Access Control Device

    DS-K3B961TX Series Swing Barrier User Manual Before You Start Make sure you have added persons and their face pictures to an organization. ● Make sure you have enabled the Export Person Information function to display the Export ● button. See for details. Steps 1.

  • Page 99: Issue Cards To Persons In Batch

    DS-K3B961TX Series Swing Barrier User Manual Note If you select the enrollment station, you should click Login, and enter IP address, port No., user name and password of the device. 5. Select the Getting Mode. Note The getting mode varies according to different devices. The access control device supports getting the person information by employee ID.

  • Page 100: Set Card Issuing Parameters

    DS-K3B961TX Series Swing Barrier User Manual Steps 1. Enter Person module. 2. Select the person you want to report card loss for and click Edit to open the Edit Person window. 3. In the Credential → Card panel, click on the added card to set this card as lost card. After reporting card loss, the access authorization of this card will be invalid and inactive.

  • Page 101: Configure Schedule And Template

    DS-K3B961TX Series Swing Barrier User Manual Enable or disable the buzzing when the card number is read successfully. Card No. Type Select the type of the card number according to actual needs. M1 Card Encryption This field is only available when the model is DS-K1F100-D8, DS-K1F100-D8E, or DS-K1F180-D8E. If the card is M1 card, and if you need to enable the M1 Card Encryption function, you should enable this function and select the sector of the card to encrypt.

  • Page 102: Add Template

    DS-K3B961TX Series Swing Barrier User Manual 2) Drag the cursor to draw the time duration, which means in that duration of time, the configured access group is activated. Note Up to 8 time durations can be set to one holiday period. 3) Optional: Perform the following operations to edit the time durations.

  • Page 103: Set Access Group To Assign Access Authorization To Persons

    DS-K3B961TX Series Swing Barrier User Manual 1) Click Week Schedule tab on the lower panel. 2) Select a day of the week and draw time duration(s) on the timeline bar. Note Up to 8 time duration(s) can be set for each day in the week schedule. 3) Optional: Perform the following operations to edit the time durations.
  • Page 104 DS-K3B961TX Series Swing Barrier User Manual picture, linkage between card number and fingerprint, linkage between card number and fingerprint, card password, card effective period, etc). 1. Click Access Control → Authorization → Access Group to enter the Access Group interface. 2.

  • Page 105: Configure Advanced Functions

    DS-K3B961TX Series Swing Barrier User Manual 3) Click Apply All to Devices or Apply Changes to Devices. Apply All to Devices This operation will clear all the existed access groups of the selected devices and then apply the new access group to the device. Apply Changes to Devices This operation will not clear the existed access groups of the selected devices and only apply the changed part of the selected access group(s) to the device(s).

  • Page 106: Configure Device Parameters

    DS-K3B961TX Series Swing Barrier User Manual Note For the card related functions(the type of access control card/multi-factor authentication), only ● the card(s) with access group applied will be listed when adding cards. The advanced functions should be supported by the device. ●...
  • Page 107 DS-K3B961TX Series Swing Barrier User Manual Display the card information when authenticating. Display Person Information Display the person information when authenticating. Overlay Person Info. on Picture Display the person information on the captured picture. Voice Prompt If you enable this function, the voice prompt is enabled in the device. You can hear the voice prompt when operating in the device.
  • Page 108 DS-K3B961TX Series Swing Barrier User Manual 3. Select a door or floor to show its parameters on the right page. 4. Edit the door or floor parameters. Note The displayed parameters may vary for different access control devices. ● Some of the following parameters are not listed in the Basic Information page, click More to ●...
  • Page 109 DS-K3B961TX Series Swing Barrier User Manual Note The duress code, super code, and dismiss code should be different. ● The duress code, super password, and the dismiss code should be different from the ● authentication password. The length of duress code, super password, and the dismiss code is according the device, ●...
  • Page 110 DS-K3B961TX Series Swing Barrier User Manual When you inputting the password on the card reader, if the interval between pressing two digits is larger than the set value, the digits you pressed before will be cleared automatically. Alarm of Max. Failed Attempts Enable to report alarm when the card reading attempts reach the set value.
  • Page 111 DS-K3B961TX Series Swing Barrier User Manual Set the matching security level when authenticating via 1:N matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate when authentication. Live Face Detection Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not.
  • Page 112 DS-K3B961TX Series Swing Barrier User Manual Alarm Output Active Time How long the alarm output will last after triggered. 4. Click OK. 5. Optional: Set the switch on the upper right corner to ON to trigger the alarm output. Configure Parameters for Lane Controller After adding the lane controller to the client, you can configure its parameters for passing through the lane.

  • Page 113: Configure Other Parameters

    DS-K3B961TX Series Swing Barrier User Manual Temperature Unit Select the temperature unit that displayed in the device status. 4. Click OK. 8.7.2 Configure Other Parameters After adding the access control device, you can set its parameters such as network parameters, capture parameters, RS-485 parameters, Wiegand parameters, etc.
  • Page 114 DS-K3B961TX Series Swing Barrier User Manual Save Authenticating Face Picture If enabled, the captured face picture when authenticating will be saved on the device. MCU Version View the device MCU version. 5. Click Save. Set RS-485 Parameters You can set the access control device's RS-485 parameters including the baud rate, data bit, the stop bit, parity type, flow control type, communication mode, work mode, and connection mode.

  • Page 115: Door/Elevator Control

    DS-K3B961TX Series Swing Barrier User Manual 3. Select an access control device in the device list and click Wiegand to enter the Wiegand Settings page. 4. Set the switch to on to enable the Wiegand function for the device. 5. Select the Wiegand channel No. and the communication mode from the drop-down list. Note If you set Communication Direction as Sending, you are required to set the Wiegand Mode as Wiegand 26 or Wiegand 34.

  • Page 116: Control Door Status

    DS-K3B961TX Series Swing Barrier User Manual 8.8.1 Control Door Status You can control the status for the door(s), including unlock door, locking door, remaining the door unlock, remaining the door locked, remain all unlocked, etc. Before You Start Add person and assign access authorization to designed person, and person will have the access ●...

  • Page 117: Check Real-Time Access Records

    DS-K3B961TX Series Swing Barrier User Manual All doors in the group will be closed and locked. No person can access the doors even if he/she has the authorized credentials, except the super users. Capture Capture a picture manually. Note The Capture button is available when the device supports capture function. The picture is saved in the PC running the client.
  • Page 118 DS-K3B961TX Series Swing Barrier User Manual 2. Optional: Select an access point group from the drop-down list in the upper-right corner to show the real time access records of the selected group. 3. Optional: Check the event type and event status. The detected events of checked type and status will be displayed in the list below.

  • Page 119: Appendix A. Tips When Collecting/Comparing Face Picture

    DS-K3B961TX Series Swing Barrier User Manual Appendix A. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Expression Keep your expression naturally when collecting or comparing face pictures, just like the ● expression in the picture below. Do not wear hat, sunglasses, or other accessories that can affect the facial recognition function.

  • Page 120: Appendix B. Dip Switch

    DS-K3B961TX Series Swing Barrier User Manual Appendix B. DIP Switch B.1 DIP Switch Description The DIP switch is on the main user extended interface board. No.1 to No 4 is from the low bit to the high bit. Figure B-1 DIP Switch When the switch is towards ON, it means the switch is enabled, otherwise, the switch is off.
  • Page 121 DS-K3B961TX Series Swing Barrier User Manual Device Mode Function Decimal Value DIP Switch Address Diagram Work Mode Normal Mode Study Mode Keyfob Paring Disable Keyfob Mode Paring Mode Enable Keyfob Paring Mode...

  • Page 122: Appendix C. Event And Alarm Type

    DS-K3B961TX Series Swing Barrier User Manual Appendix C. Event and Alarm Type Event Alarm Type Tailgating Visual and Audible Reverse Passing Visual and Audible Force Accessing None Climb over Barrier Visual and Audible Overstay Visual and Audible Passing Timeout None Intrusion Visual and Audible Free Passing...

  • Page 123: Appendix D. Error Code Description

    DS-K3B961TX Series Swing Barrier User Manual Appendix D. Error Code Description The swing barrier will display the error code on the seven-segment display if error occurred. Refer to the table below to find the description of each number. Error Reason Code Error Reason Code...
  • Page 124 DS-K3B961TX Series Swing Barrier User Manual Error Reason Code Error Reason Code Lower Second IR Beam Obstruction Triggered Lower Third IR Beam Triggered 19 Exceeding Studying Range Lower Fourth IR Beam Motor Exception Triggered...

  • Page 125: Appendix E. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure E-2 Device Command...
  • Page 126 UD27483B...
