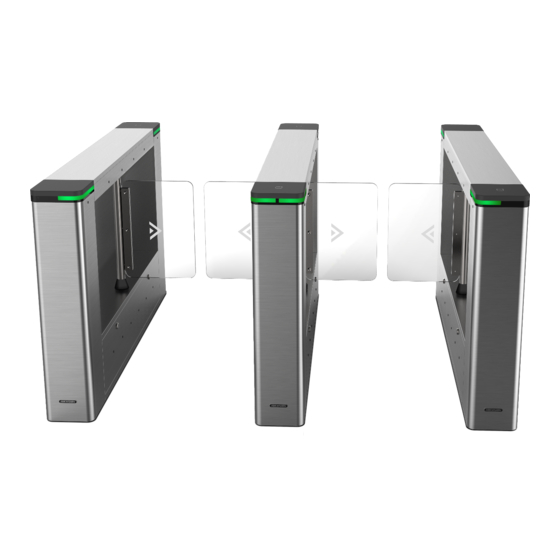

DS-K3B501SX Series Swing Barrier
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K3B501SX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-K3B501SX Series

Summary of Contents for HIKVISION DS-K3B501SX Series

  • Page 1 DS-K3B501SX Series Swing Barrier Quick Start Guide...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K3B501SX Series Swing Barrier Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 DS-K3B501SX Series Swing Barrier Quick Start Guide under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 6 DS-K3B501SX Series Swing Barrier Quick Start Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 7 DS-K3B501SX Series Swing Barrier Quick Start Guide • Do not ingest battery, Chemical Burn Hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
  • Page 8 DS-K3B501SX Series Swing Barrier Quick Start Guide • Please keep all wrappers after unpack them for future use. In case of any failure occurred, you need to return the device to the factory with the original wrapper. Transportation without the original wrapper may result in damage on the device and lead to additional costs.
  • Page 9 DS-K3B501SX Series Swing Barrier Quick Start Guide Available Models Product Name Model Description Swing Barrier DS-K3B501SX-L Left Pedestal DS-K3B501SX-M Middle Pedestal DS-K3B501SX-R Right Pedestal Scan the QR code to get User Manual of Swing Barrier. Note that mobile data charges may apply if Wi-Fi is unavailable.

  • Page 10: Table Of Contents

    DS-K3B501SX Series Swing Barrier Quick Start Guide Contents Chapter 1 Overview ........................1 1.1 Introduction ........................... 1 1.2 Main Features ........................1 Chapter 2 System Wiring ......................3 Chapter 3 Installation ......................... 6 3.1 Disassemble Pedestals ......................6 3.2 Install Supercapacitor (Optional) ................... 6 3.3 Install Pedestals ........................
  • Page 11 DS-K3B501SX Series Swing Barrier Quick Start Guide 5.3 Initialize Device ........................29 5.4 Switch to RS-485/RS-232 Mode ................... 30 5.5 Switch Relay Output Mode (NO/NC) ..................30 5.5.1 Barrier Control Relay Output Mode ................30 5.5.2 Alarm Relay Output Mode (NO/NC) ................31 Chapter 6 Activation .........................

  • Page 12: Chapter 1 Overview

    DS-K3B501SX Series Swing Barrier Quick Start Guide Chapter 1 Overview 1.1 Introduction The swing barrier with two barriers and 12 IR lights is designed to detect unauthorized entrance or exit. By adopting the swing barrier integratedly with the access control system, person should authenticate to pass through the lane via swiping IC or ID card, scanning QR code, etc.
  • Page 13 DS-K3B501SX Series Swing Barrier Quick Start Guide • Fire alarm passing When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation • Valid passing duration settings System will cancel the passing permission if a person does not pass through the lane within the valid passing duration •...

  • Page 14: Chapter 2 System Wiring

    DS-K3B501SX Series Swing Barrier Quick Start Guide Chapter 2 System Wiring The preparation before installation and general wiring. Steps 1. Draw a central line on the installation surface of the left or right pedestal. 2. Draw other parallel lines for installing the other pedestals.
  • Page 15 DS-K3B501SX Series Swing Barrier Quick Start Guide Figure 2-2 System Wiring Diagram (General Wiring) Note • The supplied interconnecting cable length is 5.5 m. • The suggested inner diameter of the low voltage conduit is larger than 30 mm. • If you want to bury both of the AC power cord and the low voltage cable at the entrance, the two cables should be in separated conduits to avoid interference.
  • Page 16 DS-K3B501SX Series Swing Barrier Quick Start Guide Figure 2-3 Wire Face Recognition Terminal Note • The left pedestal and the middle pedestal should bury interconnecting cables for connecting the face recognition terminal. • The face recognition terminal installed on the left pedestal will gain power from the sub switch, which should connect to high voltage.

  • Page 17: Chapter 3 Installation

    DS-K3B501SX Series Swing Barrier Quick Start Guide Chapter 3 Installation 3.1 Disassemble Pedestals Before installation, you should use the key to open the pedestals. View the pictures below to find the lock holes. Figure 3-1 Lock Holes 3.2 Install Supercapacitor (Optional) The supercapacitor supplies power for main lane control board and sub lane control board when the device is powered off.

  • Page 18: Install Pedestals

    DS-K3B501SX Series Swing Barrier Quick Start Guide 3. Secure the components on the device by the screws. 4. Insert the supercapacitor connecter to the interface on the lane control board. Warning There are supercapacitor interfaces on both of the main lane control board and sub lane control board.
  • Page 19 DS-K3B501SX Series Swing Barrier Quick Start Guide Figure 3-3 Wall Distance • The dimension of two-lane turnstile with barrier is as follows. Figure 3-4 Dimension 1. Prepare for the installation tools, check the components, and prepare for the installation base.
  • Page 20 DS-K3B501SX Series Swing Barrier Quick Start Guide 3. According to the entrance and exit marks on the pedestals, move the pedestals to the corresponded positions. Note Make sure the installation holes on the pedestals and the base are aligned with each other.

  • Page 21: Chapter 4 General Wiring

    DS-K3B501SX Series Swing Barrier Quick Start Guide Chapter 4 General Wiring 4.1 Components Introduction By default, basic components of the turnstile are connected well. The pedestals can communicate by wiring the interconnecting cables. And the turnstile supports wiring the AC electric supply for the whole system's power supply.

  • Page 22: Wiring Electric Supply

    DS-K3B501SX Series Swing Barrier Quick Start Guide Figure 4-2 Components 2 Note If the turnstile contains two lanes, standing at the entrance position, the IR modules on the left pedestal are the IR sending modules. The IR modules on the right pedestal are the IR receiving modules.

  • Page 23: Wire Interconnecting Cable

    DS-K3B501SX Series Swing Barrier Quick Start Guide Note • The cable bare part should be no more than 8 mm. It is suggested that you can immerse the bare part into the liquid tin. If possible, wear an insulation cap at the end of the bare cable.

  • Page 24: Wire Network Switch

    DS-K3B501SX Series Swing Barrier Quick Start Guide Figure 4-4 Connect Interconnecting Cable 4.4 Wire Network Switch Connect the network cable and the network switch. Steps 1. Use M4 hexagonal wrench (L shaped) to unscrew the upper screws. Figure 4-5 Unscrew the Upper Screws...
  • Page 25 DS-K3B501SX Series Swing Barrier Quick Start Guide Figure 4-6 Open Top Cover The network switch's position is shown as follows.

  • Page 26: Terminal Description

    DS-K3B501SX Series Swing Barrier Quick Start Guide Figure 4-7 Network Switch Position 3. Lead out 12 V power supply from the main switch and connect it to the network switch's power interface. 4. Connect the network cable with the network switch.

  • Page 27: Sub Control Board Terminal Description

    DS-K3B501SX Series Swing Barrier Quick Start Guide 4.5.2 Sub Control Board Terminal Description The sub lane control board contains interconnecting interfaces, BUS, motor encoder interface, debugging port, door closed position interface, seven-segment display, strip light interface (reserved), supercapacitor, power interface, and motor drive interface.

  • Page 28: Access Control Board Terminal Description

    DS-K3B501SX Series Swing Barrier Quick Start Guide 4.5.3 Access Control Board Terminal Description Table 4-1 Access Control Board Terminal Description Access Controlling Board Terminal Description Power Output 1 +12 V Power Output Grounding Wiegand Card Indicator of Card Reader Control Output (Invalid Card...
  • Page 29 DS-K3B501SX Series Swing Barrier Quick Start Guide Access Controlling Board Terminal Description RS-485 Interface Grounding RS-485 B- Connect to Card Reader RS485- RS-485 B+ Connect to Card Reader RS485+ Grounding RS-485 C- Connect to Card Reader RS485- RS-485 C+ Connect to Card Reader RS485+...

  • Page 30: Access Control Board Serial Port Id Description

    DS-K3B501SX Series Swing Barrier Quick Start Guide Access Controlling Board Terminal Description Alarm Output NO/NC1 Alarm Output Relay 1 (Dry Contact) COM1 NO/NC2 Alarm Output Relay 2 (Dry Contact) COM2 NO/NC3 Alarm Output Relay 3 (Dry Contact) COM3 NO/NC4 Alarm Output Relay 4 (Dry Contact)
  • Page 31 Use the jumper cap to switch the serial port communication mode with the lane controller. By default, the interface is wired and it is in RS-485 communication mode. If wiring other controllers (compatible with Hikvision communication protocol), use the jumper cap to switch between RS-485 and RS-232 communication mode.
  • Page 32 DS-K3B501SX Series Swing Barrier Quick Start Guide UART4 The serial port is in the wiring interface according to the picture above, which has a fixed RS-232 communication mode to communicate with the main lane controller. It contains no jumper cap and cannot change the communication mode.

  • Page 33: Rs-485 Wiring

    DS-K3B501SX Series Swing Barrier Quick Start Guide 4.5.5 RS-485 Wiring Note • There are four RS-485 interfaces, which are for connecting ID card reader, IC card reader, QR code scanner, fingerprint and card reader, card recycler, text screen, fingerprint reader, and face recognition terminal.

  • Page 34: Rs-232 Wiring

    DS-K3B501SX Series Swing Barrier Quick Start Guide 4.5.6 RS-232 Wiring Note • There are three RS-232 interfaces (UART4, UART7, and UART8). UART7 and UART8 can connect QR code scanner, card recycler, and text screen, while UART4 can connect QR code scanner, card recycler, text screen, and face recognition terminal.

  • Page 35: Wiegand Wiring

    DS-K3B501SX Series Swing Barrier Quick Start Guide 4.5.7 Wiegand Wiring Note Connect the OK/ERR/BZ if the access controller should control the LED and buzzer of the Wiegand card reader. 4.5.8 Barrier Control Wiring By default, the barrier has connected with the access control board. The lane control board can control the barrier status.
  • Page 36 DS-K3B501SX Series Swing Barrier Quick Start Guide Entering Wiring Exiting Wiring...

  • Page 37: Alarm Output Wiring

    DS-K3B501SX Series Swing Barrier Quick Start Guide 4.5.9 Alarm Output Wiring Note For details about changing the relay output status via the jumper cap, see Alarm Relay Output Mode (NO/NC) .

  • Page 38: Chapter 5 Device Settings

    DS-K3B501SX Series Swing Barrier Quick Start Guide Chapter 5 Device Settings After installation and wiring completed, you should set the barriers closed position (study mode) before entering the working mode. You can also set the test mode, normal mode, passing mode and memory mode, pair the keyfob,...

  • Page 39: Pair Keyfob (Optional)

    DS-K3B501SX Series Swing Barrier Quick Start Guide 5. Set the No.1 and No.2 switches of the 8-digit DIP Switch on the main control board by referring to the following figure. 6. Power on the device again. Note For details about the DIP switch value and meaning, see DIP Switch Description.

  • Page 40: Initialize Device

    DS-K3B501SX Series Swing Barrier Quick Start Guide Note • Only one turnstile can pair the keyfob. If multiple turnstiles are in the pairing mode, the keyfob will select only one of them to pair. • For details about DIP switch value and meaning, see DIP Switch .

  • Page 41: Switch To Rs-485/Rs-232 Mode

    DS-K3B501SX Series Swing Barrier Quick Start Guide 5.4 Switch to RS-485/RS-232 Mode Take the Serial Port 4 and on the access control board as an example. If the Jumper cap's position is like the picture displayed below. (The black part is the jumper cap.) The serial port is in RS-485 communication mode.

  • Page 42: Alarm Relay Output Mode (No/Nc)

    DS-K3B501SX Series Swing Barrier Quick Start Guide The jumper cap's position of barrier opening for exit (NO) is as below: The jumper cap's position of barrier closing for entrance (NC) is as below: The jumper cap's position of barrier closing for exit (NC) is as below: 5.5.2 Alarm Relay Output Mode (NO/NC)

  • Page 43: Chapter 6 Activation

    • Get the SADP software from the supplied disk or the official website http:// www.hikvision.com/en/ , and install the SADP according to the prompts. • The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 44: Activate Device Via Client Software

    DS-K3B501SX Series Swing Barrier Quick Start Guide Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.
  • Page 45 DS-K3B501SX Series Swing Barrier Quick Start Guide three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product.

  • Page 46: Appendix A. Tips For Scanning Fingerprint

    DS-K3B501SX Series Swing Barrier Quick Start Guide Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 47 DS-K3B501SX Series Swing Barrier Quick Start Guide Others If your fingerprint is shallow, or it is hard to scan your fingerprint, we recommend you to use other authentication methods. If you have injuries on the scanned finger, the scanner may not recognize. You can change another...

  • Page 48: Appendix B. Dip Switch

    DS-K3B501SX Series Swing Barrier Quick Start Guide Appendix B. DIP Switch B.1 DIP Switch Description The DIP switch is on the main lane control board. No.1 to No 8 is from the low bit to the high bit. When the switch is towards ON, it means the switch is enabled, otherwise, the switch is off. If you set the DIP switch like the figure displayed below, its binary value is 00001100, and its decimal value is 12.
  • Page 49 DS-K3B501SX Series Swing Barrier Quick Start Guide Device Mode Function Decimal Value DIP Switch Address Diagram Keyfob Paring Enable Keyfob Mode Paring Mode Disable Keyfob Paring Mode 5 to 8 Passing Mode Controlled Bi- direction Controlled Entrance and Prohibit Exit...

  • Page 50: Appendix C. Event And Alarm Type

    DS-K3B501SX Series Swing Barrier Quick Start Guide Appendix C. Event and Alarm Type Event Alarm Type Tailgating Visual and Audible Reverse Passing Visual and Audible Force Accessing None Climb over Barrier Visual and Audible Overstay Visual and Audible Passing Timeout...

  • Page 51: Appendix D. Table Of Audio Index Related Content

    DS-K3B501SX Series Swing Barrier Quick Start Guide Appendix D. Table of Audio Index Related Content Index Content Authenticated. Card No. does not exist. Card No. and fingerprint mismatch. Climbing over the barrier. Reverse passing. Passing timeout. Intrusion. Force accessing. Tailgating.

  • Page 52: Appendix E. Error Code Description

    DS-K3B501SX Series Swing Barrier Quick Start Guide Appendix E. Error Code Description The swing barrier will display the error code on the seven-segment display if error occurred. Refer to the table below to find the description of each number. Error Reason...
  • Page 53 DS-K3B501SX Series Swing Barrier Quick Start Guide Error Reason Code Error Reason Code The Third IR Beam on Lower IR Lower IR Board 8 Offline Board Triggered The Fourth IR Beam on Lower Lower IR Board 9 Offline IR Board Triggered...

  • Page 54: Appendix F. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure F-2 Device Command...
  • Page 55 UD22503B...
