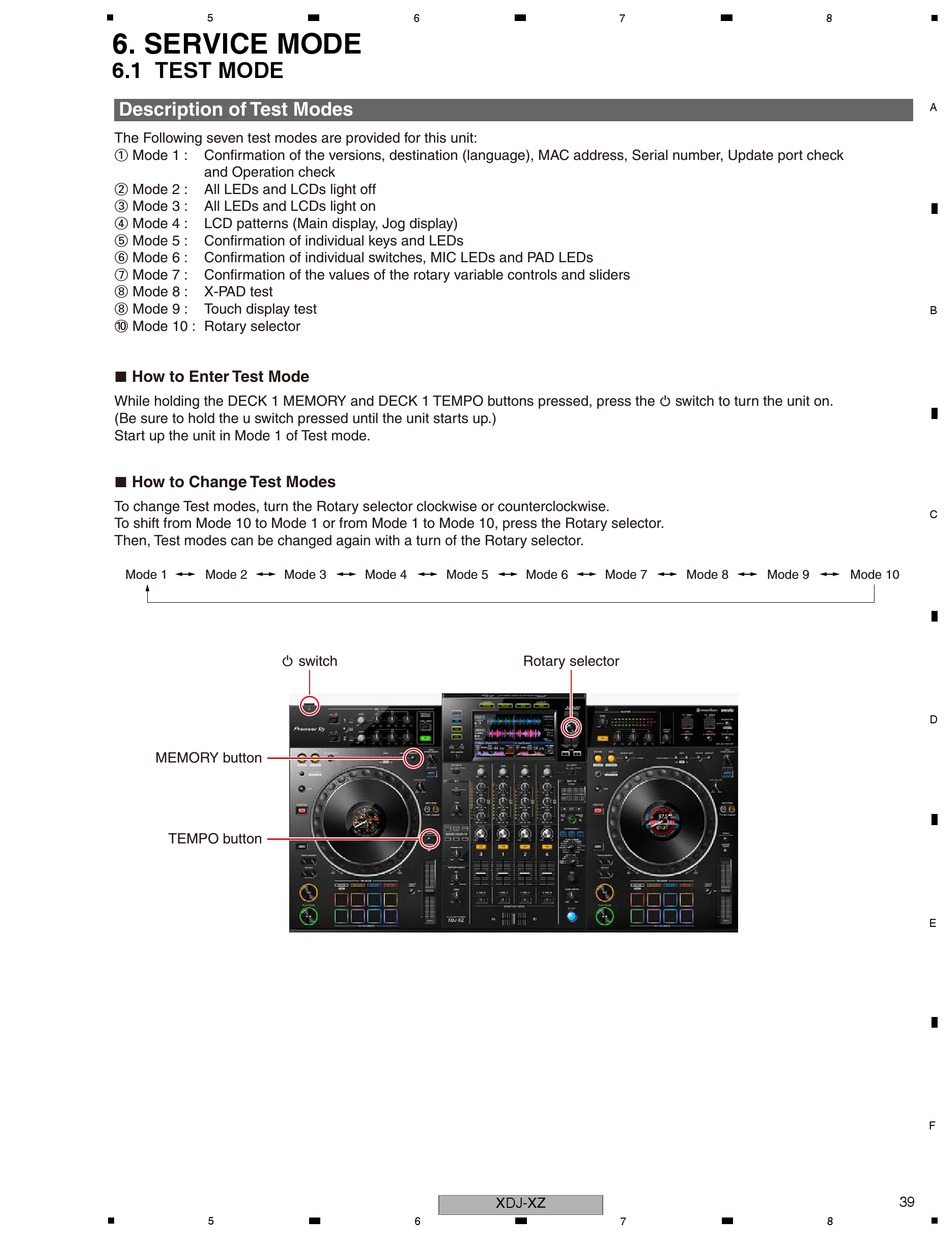

6. SERVICE MODE

6.1 TEST MODE

Description of Test Modes
The Following seven test modes are provided for this unit:
1 Mode 1 :
Confirmation of the versions, destination (language), MAC address, Serial number, Update port check
and Operation check
2 Mode 2 :
All LEDs and LCDs light off
3 Mode 3 :
All LEDs and LCDs light on
4 Mode 4 :
LCD patterns (Main display, Jog display)
5 Mode 5 :
Confirmation of individual keys and LEDs
6 Mode 6 :
Confirmation of individual switches, MIC LEDs and PAD LEDs
7 Mode 7 :
Confirmation of the values of the rotary variable controls and sliders
8 Mode 8 :
X-PAD test
8 Mode 9 :
Touch display test
0 Mode 10 : Rotary selector
How to Enter Test Mode
While holding the DECK 1 MEMORY and DECK 1 TEMPO buttons pressed, press the
(Be sure to hold the u switch pressed until the unit starts up.)
Start up the unit in Mode 1 of Test mode.
How to Change Test Modes
To change Test modes, turn the Rotary selector clockwise or counterclockwise.
To shift from Mode 10 to Mode 1 or from Mode 1 to Mode 10, press the Rotary selector.
Then, Test modes can be changed again with a turn of the Rotary selector.
Mode 1 Mode 2 Mode 3
MEMORY button
TEMPO button
5
6
Mode 4 Mode 5
switch
6
7
switch to turn the unit on.
Mode 6 Mode 7
Rotary selector
XDJ-XZ
7
8
Mode 8 Mode 9 Mode 10
