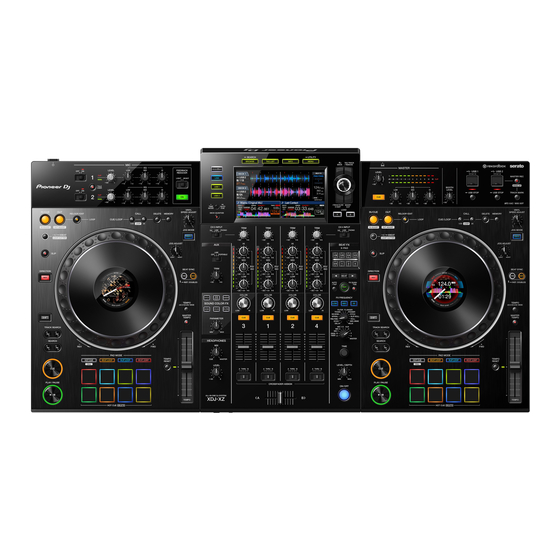

All-In-One DJ System
XDJ-XZ
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
XDJ-XZ
AXJ
XDJ-XZ
LWSYXJ
XDJ-XZ
UXJCB
THIS SERVICE MANUAL SHOULD BE USED TOGETHER WITH THE FOLLOWING MANUAL(S).
Model
XDJ-XZ
6F, Yokohama i-Mark Place, 4-4-5 Minatomirai, Nishi-ku, Yokohama, Kanagawa 220-0012 JAPAN
© 2019 Pioneer DJ Corporation
Power Requirement
AC 220 V
AC 110 V to 240 V
AC 120 V
Order No.
RRV4699
SCHEMATIC DIAGRAM, PCB CONNECTION DIAGRAM, PCB PARTS LIST
XDJ-XZ
Remarks
ORDER NO.
RRV4698
Remarks
K-ZZZ OCT. 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XDJ-XZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PIONEER DJ XDJ-XZ

Summary of Contents for PIONEER DJ XDJ-XZ

  • Page 1 THIS SERVICE MANUAL SHOULD BE USED TOGETHER WITH THE FOLLOWING MANUAL(S). Model Order No. Remarks XDJ-XZ RRV4699 SCHEMATIC DIAGRAM, PCB CONNECTION DIAGRAM, PCB PARTS LIST 6F, Yokohama i-Mark Place, 4-4-5 Minatomirai, Nishi-ku, Yokohama, Kanagawa 220-0012 JAPAN © 2019 Pioneer DJ Corporation K-ZZZ OCT. 2019...

  • Page 2: Table Of Contents

    9. EXPLODED VIEWS AND PARTS LIST..........................82 9.1 PACKING SECTION ..............................82 9.2 BOTTOM SECTION ..............................84 9.3 CHASSIS SECTION ..............................86 9.4 CONTROL PANEL SECTION (1/3)..........................88 9.5 CONTROL PANEL SECTION (2/3)..........................90 9.6 CONTROL PANEL SECTION (3/3)..........................92 9.7 JOG DIAL SECTION..............................94 9.8 LCD SECTION ................................96 XDJ-XZ...

  • Page 3: Service Precautions

    REGULATOR IC (AUDIO power supply) IC with heat-pad NJM7805DL1A IC6609, IC6610 REGULATOR IC (AUDIO power supply) IC with heat-pad NJM78M15DL1A IC6611 REGULATOR IC (AUDIO power supply) IC with heat-pad NJM79M15DL1A IC6612 REGULATOR IC (AUDIO power supply) IC with heat-pad XDJ-XZ...

  • Page 4: Service Notice

    " When there is no block, place the whole surface of the control panel to the curing mat, and attach the chassis part according to the screw tightening order manually. " Take care not to press the screwdriver strongly to the product in any case. " Do not use the electric screwdriver. XDJ-XZ...
  • Page 5 When there is no above type LED, take measures the following method. Step 1: After the power is turned off, wait 2 minutes. Step 2: Connect the Register Jig and leave the unit as it is, for 10 seconds. XDJ-XZ...

  • Page 6: Specifications

    LOW ..........–12 dB to +12 dB (100 Hz) MASTER equalizer characteristic HI ............–26 dB to +6 dB (20 kHz) MID ............. –26 dB to +6 dB (1 kHz) LOW ........... –26 dB to + 6 dB (20 Hz) XDJ-XZ...

  • Page 7: Basic Items For Service

    No scratches or dirt on its appearance after receiving it for service. See the table below for the items to be checked regarding audio. Item to be checked regarding audio Distortion Volume too high Noise Volume fluctuating Volume too low Sound interrupted XDJ-XZ...

  • Page 8: Jigs List

    Lubricating oil GYA1001 Used for "9.4 CONTROL PANEL SECTION (1/3)", "9.5 CONTROL PANEL SECTION (2/3)" and "9.7 JOG DIALSECTION". Refer to "7. DISASSEMBLY". Lubricating oil GEM1106 Used for "9.7 JOG DIAL SECTION". Refer to "7. DISASSEMBLY". (Dry surf HFD-1610) XDJ-XZ...
  • Page 9 XDJ-XZ Service check sheet Check contents Check target Operation part, Setting Display part (LED) Display part (LCD) Status Check VERSION INFORMATION Version display Firmware etc. ———— ———— SYSTEM Ver. Ver. PANEL M Firmware version display Ver. JOG LCD(DECK1) Ver. JOG LCD(DECK2) Ver.
  • Page 10 "Touch test OK" Rotary selector Select operation ———— SELECTOR TEST ROTARY SELECTOR SELECTOR xx Display the value (00 to FF hexadecimal) to the position of selector. TIME TIME xx Display the value (00 to FF hexadecimal) to the position of selector. XDJ-XZ...

  • Page 11: Pcb Locations

    Only printed information is different, because their part numbers and wiring numbers are different. CHF4 ASSY They are handled similarly in their production management. Therefore, either 1, 2, 3 or 4 Assy of the respective Assys is assembled in the respective place. XDJ-XZ...
  • Page 12 DWX4301 2..CHF4 ASSY DWX4306 2..MCTR ASSY DWX4302 2..JOG1 ASSY DWX4317 2..CHF1 ASSY DWX4303 2..JOG2 ASSY DWX4318 2..CHF2 ASSY DWX4304 2..STL4 ASSY DWX4322 2..PLAY1 ASSY DWX4307 > 2..PLAY2 ASSY DWX4308 1..SW POWER SUPPLY DWR1548 2..SER1 ASSY DWX4310 2..SER2 ASSY DWX4314 XDJ-XZ...

  • Page 13: Block Diagram

    4. BLOCK DIAGRAM Note: The 1 and 2 Assys of JLCD, PLAY, SER, TMP and JOG Assys have the same circuitry, parts, and board shapes. Only printed information is different, because their part numbers and wiring numbers are different. They are handled similarly in their production management. EFSW ASSY (DWX4297) Therefore, either 1 or 2 Assy of the respective Assys is assembled in the respective place.

  • Page 14: Overall Wiring Diagram (2/2)

    When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. : The power supply is shown with the marked box.

  • Page 15: Overall Block Diagram

    (400 MHz) Trim MIC2 Booth AK5358AET DAC_LRCLK MCIN ASSY MCTR ASSY ADDA_xRST ADAT_AUX AUX_GAIN_SEL ADAT_HP IC5603 ADC_BCLK AK5358AET ADC_LRCLK IC5801 ADDA_xRST AK4384ET-TBB MCLK OSCIN EMIFB Interface HPJK ASSY 95.962 MHz IC2502 W9812G6KH-6-K SDRAM Parallel 16bit Bus 128 Mbit AUDIO ASSY XDJ-XZ...

  • Page 16: Power Block Diagram

    JLCD1 ASSY AUDIO ASSY V+3R3D2 MCIN ASSY JOG LCD CN5601 BL CNT DCDC CN4515 JOG RING V+12A V+18A V+15A IC7601 IC3007 C.M. BD9851EFV NJM78M15DL1A V+12A IC7602 SDRAM IC6611 OpAmp V+3R3D2 IC6606 MIC1-2 V-18A V-15A IC3002 NJM79M15DL1A BD00IC0WEFJ V+1R25L JOG LCD CN7602 uCOM IC6612...

  • Page 17: Matrix Information

    TIME PNLM JLCD1 JLCD2 JOG1 JOG1 JLCD1 JLCD2 JOG2 JOG2 DIRECT AD PAD1&2 CHF1 to 4/CRF MIXER Control UCOM Control UCOM Control UCOM PAD(1 to 8) CHFADER_1 to 4 MIXER PNLM CH1 to 4_CFX_VR CROSS FADER MIXER PNLM AUX_VR XDJ-XZ...
  • Page 18 MASR Lv 0 PNLM MXRDCK2_LED6 MASL Lv -3 MASR Lv -3 MXRDCK2_LED7 MASL Lv -6 MASR Lv -6 MXRDCK2_LED8 MASL Lv -9 MASR Lv -9 MXRDCK2_LED9 MASL Lv -15 MASR Lv -15 MXRDCK2_LED10 MASL Lv -24 MASR Lv -24 MXRDCK2_LED11 MAS_CLIP XDJ-XZ...
  • Page 19 QTZ(Quantize) PAD1 BLUE(1 to 8) CUE CH1 USB2 PAD2 BLUE(1 to 8) CUE CH2 PNLM USB1 CUE CH3 LINK CUE CH4 RKB(rekordbox) BROWSE MAIN(I.MX) TAG LIST INFO MENU BROWSE ENC(ILM) DCK1 DCK2 XPAD Control UCOM CDC_LED1 CDC_LED2 PNLM CDC_LED3 XDJ-XZ...

  • Page 20: Diagnosis

    Operation of the power supply monitoring ERP UCOM (P8_4) Does the abnormality of the power supply occur? It executes the mute of the audio. Flashes LED of MASTER_REC in red. It stops the SW POWERSUPPLY output with PWR_ON signal as "Low". XDJ-XZ...

  • Page 21: Troubleshooting

    ERP UCOM (IC4502) and PANELM UCOM (IC4505) on UCOM Assy have not been established. startup procedure stops in mid-course, with Check the connection between MAIN Assy and UCOM Assy. the message "PIONEER DJ rekordbox" If no problem, replace MAIN Assy. displayed on the LCD.
  • Page 22 ROM or microcomputer? the MAIN Assy. Check the connection between MAIN Assy and UCOM Assy. If no problems are found in ERP UCOM/PANELM UCOM peripheral circuits, connectors, or cables, replace ERP UCOM (IC4502) and PANELM UCOM (IC4505). XDJ-XZ...
  • Page 23 MAIN Assy may be in failure. by the PC/Mac? Check the power supply to each IC. If no problem, replace the MAIN Assy. Check and correct the settings of the application used on the PC/Mac. (This unit operates properly.) XDJ-XZ...
  • Page 24 If the voltage changes normal, replace the Is the voltage at each block normal? LCD module. If not improve, replace LCDB Assy. Replace MAIN Assy. If the problem is not improve, replace LCDB Assy. If it still not improve, replace LCD module. XDJ-XZ...
  • Page 25 Refer to "10. 70 WAVEFORMS" 2. As a problem in the Touch panel is Will the waveform be output suspected, replace the Touch panel. when operating the touch panel? Replace LCDB Assy. If not improve, replace the MAIN Assy. XDJ-XZ...
  • Page 26 If no problem, replace the microcomputer, as follows: ! ERP UCOM UCOM Assy: Replace IC4502 ! PANELM UCOM UCOM Assy: Replace IC4505 ! MIXER UCOM MAIN Assy: Replace IC2302 XDJ-XZ...
  • Page 27 0 V and 3.3 V around 1.65 V. If it has The slide VRs are inoperable. defective, replace the parts. If not improve, TEMPO slider, Channel fader, Crossfader check the parts on the signal line. If no problem, replace the microcomputer. ! MAIN Assy: IC2302 XDJ-XZ...
  • Page 28 Check the LED connection with the microcomputer (IC4502/IC4503/IC701/ Is the segment signal normal? IC3002/IC3202) controlling the LED. If no problem, then replace the microcomputer. Replace the LED of the abnormal part. XDJ-XZ...
  • Page 29 AUDIO Assy: Replace IC6001, IC6002 • If only MASTER2 has no audio signal output, check the periphery of IC6003, the capacitor or resistor is damaged or if any circuit is open. If not improve, replace AUDIO Assy. XDJ-XZ...
  • Page 30 AUDIO Assy? transistors in the AUDIO Assy? be replaced. ! AUDIO Assy: Replace Q6401, Q6402 Check for a point in the AUDIO Assy where the audio signal is interrupted. And, replace it. If not improved, replace AUDIO Assy. XDJ-XZ...
  • Page 31 Check Pins 1 and 4 of CN7701 in the HPJK Assy. If no waveform, check the connection cable. If no problem, the audio circuit in the AUDIO Assy may be in failure. Replace the AUDIO Assy. If the waveform is detected, replace the HPJK Assy. XDJ-XZ...
  • Page 32 Check where the signal is interrupted. Check the periphery of IC5601 and IC5602. If no problem, replace the Ope amplifier. ! AUDIO Assy: Replace IC5601, IC5602 If not improve, the AUDIO Assy may be in failure. Replace AUDIO Assy. XDJ-XZ...
  • Page 33 MCIN Assy and MCTR Assy. Check the periphery of the Ope amplifier (IC7601, IC7602). If no problem, replace the Ope amplifier. ! MCIN Assy: Replace IC7601, IC7602 If not improve, replace MCIN Assy. If it still does not improve, replace AUDIO Assy. XDJ-XZ...

  • Page 34: Simplified Diagnostic Procedure For Audio Signal

    HP MINI LINE/PHONO HPJK ASSY LINE/PHONO MIC1 MIC2 MCIN ASSY Possible defective locations when both phenomena Possible defective locations when either phenomenon or neither can be confirmed (Input section is abnormal) phenomena can be confirmed (Output section is abnormal) XDJ-XZ...

  • Page 35: Voltage Monitoring Circuit

    Low : Abnormal PMIC V+5D Voltage Detection Monitoring V+3R3E Circuit ERP UCOM V+12E V+5E (IC4502) Regulator Regulator Logic Inversion (Q6601) xEUPSW PWR_ON High : V+12D/V+12L/V+12A Output Low : V+12D/V+12L/V+12A No Output WAKEUP_LED DCK2 ASSY MASTER_REC Abnormal : /WAKEUP Flashing(Red) (D9026) XDJ-XZ...
  • Page 36 PU near ERP UCOM F_DET R 3 4 6 F A U L T _ D E T 1:9C Q 3 0 6 F_DET GNDD Normal R 3 4 1 A _ F D E T 1:3B Power failure XDJ-XZ...
  • Page 37 Voltage decrease/Voltage limit 0.70 V 3.30 V MAIN Assy V+4R2D Voltage limit – 5.16 V V+3R3D Voltage decrease 2.31 V – V+5LED current limit – 2.4 A V+9LED current limit – 1.5 A UCOM Assy V+12BL current limit – 0.9 A XDJ-XZ...

  • Page 38: Error Display

    ! HUBS ARE NOT SUPPORTED. ! Hubs are not supported. Either of the three error types will be displayed. E-8309 LINK ACCESS ERROR Link access failed due to timeout errors. E-8709 COMMUNICATION ERROR Cannot communicate with the Display microcomputer. XDJ-XZ...

  • Page 39: Service Mode

    Then, Test modes can be changed again with a turn of the Rotary selector. Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 Mode 8 Mode 9 Mode 10 switch Rotary selector MEMORY button TEMPO button XDJ-XZ...
  • Page 40 ! The following 8 items cannot be light off completely because they are light on dimly by hardware. rekordbox, LINK, USB1, USB2, BROWSE (SEARCH), TAGLIST, INFO, MENU (UTILITY) 3 Mode 3: All LEDs and LCDs light on (Background: white) Main display and Jog display XDJ-XZ...
  • Page 41 CUE/LOOP CALL (LOOP 2X) CH1 CallNext ----- LOOP OUT (OUT ADJUST) DELETE CH1 CueDelete ----- RELOOP/EXIT MEMORY CH1 CueMemory ----- Jog ring illumination SYNC (INST. DOUBLES) CH1 Sync white MASTER CH1 Master amber JOG MODE (VINYL) CH1 Vinyl blue XDJ-XZ...
  • Page 42 Performance Pad 1 CH2 Pad1 Performance Pad 2 CH2 Pad2 Performance Pad 3 CH2 Pad3 Performance Pad 4 CH2 Pad4 Performance Pad 5 CH2 Pad5 Performance Pad 6 CH2 Pad6 Performance Pad 7 CH2 Pad7 Performance Pad 8 CH2 Pad8 XDJ-XZ...
  • Page 43 Light off d Red d Green d Blue d White d Light off d (repeat) The Power switch ( ) is also subject to key check. So when the power is turned off in this Mode 5, first "Power" is displayed on the LCD and then it is turned off after 1 minute. XDJ-XZ...
  • Page 44 : All the PAD MODE buttons and Performance Pads light on in blue. PAD MODE (BEAT JUMP) ON : All the PAD MODE buttons and Performance Pads light on in white. (Red, green and blue light on at the same time) XDJ-XZ...
  • Page 45 CROSS FADER CROSS FADER XXX LEVEL/DEPTH LEVEL DEPTH XXX BOOTH LEVEL BOOTH LEVEL XXX MASTER LEVEL MASTER LEVEL XXX MASTER EQ HI MASTER EQ HI XXX MASTER EQ MID MASTER EQ MID XXX MASTER EQ LOW MASTER EQ LOW XXX XDJ-XZ...
  • Page 46 Even when the upper row or the lower row of the X-PAD is touched, SLICER position information is displayed. Even when the SLICER of the X-PAD is touched, the position information of the upper row or the lower row is displayed. XDJ-XZ...
  • Page 47 ! Press the 4 "+" marks one by one to complete the calibration. ! When the calibration is completed, the setting is saved and the mode returns to the touch panel Test mode. ! Turn the Rotary selector to cancel, and the mode changes. XDJ-XZ...
  • Page 48 AUTO CUE : OFF Vinyl MODE : OFF TIME MODE : REMAIN DECK QUANTIZE : ON TEMPO RANGE : ±10% MASTER TEMPO : OFF FX QUANTIZE : ON UTILITY (except language setting) XDJ-XZ...

  • Page 49: Lcd Calibration Mode

    When saving is completed, the Jog ring illumination LED light off. By saving the result on the left and right decks, the JOG LCD calibration status changes to "END". To make adjustment again, press TEMPO RESET button. The Jog ring illumination LED flashes after entering the adjustment status. XDJ-XZ...

  • Page 50: About The Device

    3.5 inch liquid crystal module for JOG LCD DWX4228 Connect to CN3006/CN3206 (LCD) LCD Backlight IC Backlight control IC IS31BL3555-ZLS4 IC302 MAIN Assy Note on DYW**** The "****" part of the part number changes each time the firmware is updated. XDJ-XZ...

  • Page 51: Disassembly

    (rubber) Black Black (rubber) (rubber) DAC3539 DAC2685 DNK5888 DAC3238 DAC2685 DNK6440 DAA1305 DNK5981 ×12 ×2 ×4 ×4 ×4 ×1 ×1 ×1 White Black (rubber) DAC2685 DAC2685 White Black White White White Black DAC3539 DAC3238 Black Gray Gray DNK5888 DNK6440 XDJ-XZ...
  • Page 52 Therefore, when locking or unlocking, it is necessary to work so that the force equally CN4508 CN4508 applies to both sides with both hands. CN4505 CN4505 Also, we need to be careful not to overpower. Control panel Section Cord clamper Cord clamper XDJ-XZ...
  • Page 53 Remove the 2 screws and then remove the USBA Assy Section. (BBZ30P060FTC) CN1801 CN1801 ×2 ×2 CN1802 CN1802 [1-4] Diagnosis of Chassis Section Remove the 18 screws and then remove the Shield case Shield case Shield case ×18 ×18 3 Shield cases. (BBZ30P060FTC) XDJ-XZ...
  • Page 54 It cannot watch BtoB connector part when install MCTR Assy Section. The connector may be damaged if it is forcibly attached these parts. Remove the 15 screws and then remove the ×15 ×15 Chassis Section. (BPZ30P080FNI) Screw tightening order Chassis Section XDJ-XZ...
  • Page 55 Remove the 4 screws. The other screws are random order. (PPZ30P080FTB) Remove the 4 screws. MAIN Assy k l AUDIO Assy l l MCIN Assy (PPZ30P080FTB) 2 3 4 Remove the 4 screws. (PPZ30P080FTB) Be sure to tighten this screw first. XDJ-XZ...
  • Page 56 Bend FFC in conformity to the line. conformity to the line. Fasten the jumper wire Fasten the jumper wire FFC pass the bottom of the PCB. FFC pass the bottom of the PCB. with wire clip. with wire clip. XDJ-XZ...
  • Page 57 • Bottom view Remove the 4 screws and then remove the ×4 ×4 Angle. (BBZ30P060FTB) Angle • Bottom view Remove the 5 screws. Shield case (BBZ30P060FTB) Remove the 4 screws and then remove the Shield case. (BPZ26P080FTC) • Bottom view XDJ-XZ...
  • Page 58 FFC pass the slit of the barrier. Bend the FFC 90 degrees Bend the FFC 90 degrees in the backside (bottom). in the backside (bottom). FFC pass the slit of the barrier. FFC pass the slit of the barrier. XDJ-XZ...
  • Page 59 Remove the 4 Silider knobs 2, 4 Knobs, 4 Stoppers. (See below.) Remove the Silider knob 2, Knob, Stopper. (See below.) The reference of the direction ×4 ×4 Side on which the line reaches the bottom Stopper (front direction) Stopper (right direction) XDJ-XZ...
  • Page 60 Remove the 2 screws and then remove the HPJK Assy Section. Cord clamper Cord clamper (BBZ30P060FTC) Disconnect the 1 connector. (CN4514) Remove the 3 screws and then remove the Crossfader Section. (BPZ30P080FNI) Crossfader Section HPJK Assy Section • Bottom view XDJ-XZ...
  • Page 61 CN4511 CN4511 CN4513 CN4513 applies to both sides with both hands. CN4504 CN4504 CN4510 CN4510 CN4512 CN4512 Also, we need to be careful not to overpower. CN4516 CN4516 Remove the 7 screws and then remove the UCOM Assy. (BPZ30P080FNI) XDJ-XZ...
  • Page 62 Bend FFC in conformity to the line. conformity to the line. Put FFC to the hook. Put FFC to the hook. Put FFC to the hook. Put FFC to the hook. Put FFC to the hook. Put FFC to the hook. XDJ-XZ...
  • Page 63 Remove the 2 Caps. ×4 ×4 Remove the 8 screws and then remove the Channel fader Section. (BSZ20P040FTB) Stay Screw tightening order ×2 ×2 MIXER Assy CN7002 CN7002 CN7003 CN7003 CN7001 CN7001 ×4 ×4 EFSW Assy CN4901 CN4901 Slide SW Cap (W) XDJ-XZ...
  • Page 64 (0.4 to 1 mg per point × 8 points) After applying grease, move the slider base back and forth from one end to the other for approximately 10 to 20 strokes, Top & Bottom Top & Bottom in order to fully spread the grease. XDJ-XZ...
  • Page 65 ×6 ×6 ×6 ×6 PLAY2 Assy PLAY1 Assy • Bottom view Disconnect the 2 flexible cables and SER1/2 Assy 2 connectors. (CN7951, 7952, 8001, 8002, 8301, 8302, 9401, 9402) CN8302/9402 CN8302/9402 PLAY1/2 Assy CN8301/9401 CN8301/9401 CN7952/8002 CN7952/8002 CN7951/8001 CN7951/8001 XDJ-XZ...
  • Page 66 Disconnect the 1 flexible cable. (CN8351, 9451) CN8351/9451 CN8351/9451 TMP1/2 Assy [3-12] PAD1 and PAD2 Assys Remove the 24 screws and then remove the ×12 ×12 ×12 ×12 PAD1 and PAD2 Assemblies. (BPZ30P080FNI) PAD2 Assy PAD1 Assy • Bottom view XDJ-XZ...
  • Page 67 Remove the 1 washer and 1 nut and then Stay remove the VR stay S. Remove the 3 Caps. Disconnect the 4 flexible cables and ×2 ×2 1 connector. VR Stay S (CN8101 to 8105) CN8105 CN8105 CN8103 CN8103 CN8102 CN8102 CN8101 CN8101 CN8104 CN8104 DCK1 Assy XDJ-XZ...
  • Page 68 Reconnect the PCB Assemblies on the Control panel Section. Extension jig FFC (GGD1903) Connect the JOG dial Section with extension jig FFC. Caution: JOG dial rotary load adjustment executes CN3001/CN3201 of JLCD Assy in a state of non-connection. CN3005/3205 CN3005/3205 CN4503 CN4503 Adjustment XDJ-XZ...
  • Page 69 The other screws are random order. CN3004/3204 CN3004/3204 • Bottom view • Top view Remove the Barrier. Barrier • Bottom view Remove the 4 screws and then remove the ×4 ×4 LCD Section. (BPZ30P080FNI) Screw tightening order Section • Bottom view XDJ-XZ...
  • Page 70 And, stick the new double side tape And, stick the new double side tape ((NITTO No. 500) 10 mm × 53 mm) at the ((NITTO No. 500) 10 mm × 53 mm) at the position shown in the figure. position shown in the figure. XDJ-XZ...
  • Page 71 Remove the JOG dial A Assy Section. JOG B JOG dial A Assy Section Remove the 2 screws and then remove the ×2 ×2 JOG1/2 Assy. (IPZ20P080FTC) Notes for Reassembling The plate can be inserted between the slit properly, and turn smoothly. JOG1/2 Assy Plate XDJ-XZ...
  • Page 72 SW and adhere a new sheet SW. Do NOT reuse the removed sheet SW. 5 When making a connection, be sure to first release the lock of the connector then securely relock the connector after making the connection. Holder XDJ-XZ...
  • Page 73 Lubricating oil Lubricating oil (GEM1106) (GYA1001) ×9 ×9 Base Roller " Gear/LD " JOG dial A Assy Lubricating oil Lubricating oil (GEM1106) (GEM1106) Only outside : Do not apply Only outside • Top • Bottom Only outside Only outside XDJ-XZ...

  • Page 74: Each Setting And Adjustment

    " Touch panel " Confirmation of the Touch panel operation (6.1 TEST MODE 9 MODE 9: Touch panel Test) " Tempo slider VR " TEMPO ZERO POINT ADJUSTMENT VR8352 (TMP1 Assy) (8.4 TEMPO ZERO POINT ADJUSTMENT) VR9452 (TMP2 Assy) XDJ-XZ...

  • Page 75: Updating Of The Firmware

    CUE/LOOP CALL (LOOP 2X) button 3 Insert the USB device into the USB 1 slot which you wrote in an update file at with step 1. 4 Update is started. 5 Update is completed, and displayed "Firmware update is complete." XDJ-XZ...

  • Page 76: Jog Dial Rotation Load Adjustment

    (6) Perform measurement 5 times. Confirm that a judgment indicated by a display is "OK". (value of standard: 170 ±20 msec) When the rotation decreace time is coming off from spec (NG), the adjustment value of Adjust plate is changed, and confirm it again. XDJ-XZ...
  • Page 77 The measurement data (2, 3, and 4 above) from each measurement session will be stored in memory for up to 99 sessions. To display measurement data, turn the Rotary selector while holding the SHIFT button of each DECK pressed. XDJ-XZ...

  • Page 78: Tempo Zero Point Adjustment

    SIDE GNDD 2 Match the knob section of slide VR with Pin 4: ADCT CENTER POSITION. Pin 2: ADIN Knob section of slide VR TMP_RST GNDD_AD_DCK V+3R3D2_AD_DCK VR8352 or VR9452 ZERO POINT (ZERO POINT ADJ) CENTER POSITION SIDE A XDJ-XZ...

  • Page 79: Writing The Serial Number Of The Unit

    If enter by handwork, enter “ ' ” before serial number. (AXJ model: CHINESE)" and "SERIAL" is the same as the serial (If forgot, displayed error) number of the unit. If enter by barcode reader, need to connect for PC in advance. *Reference screen XDJ-XZ...

  • Page 80: User Setable Items

    TIME MODE TIME / REMAIN Key status DECK QUANTIZE / OFF ±6 / ±10 / ±16 / WIDE TEMPO RANGE MASTER TEMPO ON / FX QUANTIZE / OFF +: A factory shipment initial value is changed to “ON” after Ver1.10. XDJ-XZ...
  • Page 81 -10 dB -5 dB PHONO LINE PHONO LINE PAD/BUTTON BRIGHTNESS LCD BRIGHTNESS JOG LCD BRIGHTNESS SCREEN SAVER AUTO STANDBY AUTO CUE Vinyl MODE TIME MODE DECK QUANTIZE TIME REMAIN TEMPO RANGE MASTER TEMPO FX QUANTIZE ±6 ±10 ±16 WIDE XDJ-XZ...

  • Page 82: Exploded Views And Parts List

    For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) 9.1 PACKING SECTION LWSYXJ only UXJCB only UXJCB only LWSYXJ, Front UXJCB only UXJCB only XDJ-XZ...
  • Page 83 See Contrast table (2) (Quick nStart Guide) 12 Operating Instructions See Contrast table (2) (Quick nStart Guide) (2) CONTRAST TABLE XDJ-XZ/AXJ, LWSYXJ and UXJCB are constructed the same except for the following: Mark Symbol and Description XDJ-XZ/AXJ XDJ-XZ/LWSYXJ XDJ-XZ/UXJCB Power Cord...

  • Page 84: Bottom Section

    9.2 BOTTOM SECTION Refer to Refer to "9.4 CONTROL PANEL SECTION (1/3)". "9.8 LCD SECTION". ×2 ×2 Accessories of VR ×2 ×4 ×5 ×6 ×3 ×3 Refer to "9.3 CHASSIS SECTION". ×6 ×3 ×4 ×3 ×2 ×4 ×2 ×2 ×3 ×2 XDJ-XZ...
  • Page 85 12 Stay DNH3311 13 Base DNK6708 14 Chassis DNK6862 15 Insulator Assy DXB2131 (2) CONTRAST TABLE XDJ-XZ/AXJ, LWSYXJ and UXJCB are constructed the same except for the following: Mark Symbol and Description XDJ-XZ/AXJ XDJ-XZ/LWSYXJ XDJ-XZ/UXJCB Rear Panel DAH3271 DAH3268 DAH3269...

  • Page 86: Chassis Section

    9.3 CHASSIS SECTION ×3 ×8 ×7 ×2 ×3 ×3 ×2 ×3 ×2 ×2 ×2 ×2 ×2 ×2 XDJ-XZ...
  • Page 87 26 • • • • • 27 • • • • • 28 Nut (M12) NKX2FNI 29 Washer WA32F100Q050 30 Spring Lock Washer WS40FNI 31 Screw BBZ30P060FTC 32 Screw IBZ30P080FTB 33 Screw PMH40P080FTC 34 Screw PPZ30P080FTB 35 Screw (M3 * 5) DBA1340 XDJ-XZ...

  • Page 88: Control Panel Section (1/3)

    • Top view Refer to "7. DISASSEMBLY" ×7 Lubricating oil (GYA1001) ×4 ×2 ×8 ×8 ×2 ×2 ×8 Accessories of VR ×24 ×11 ×2 ×8 ×7 Accessories ×4 of VR ×2 ×2 Refer to "9.5 CONTROL PANEL SECTION (2/3)". XDJ-XZ...
  • Page 89 DNK5888 36 Knob/SLD DNK5981 37 Stopper DNK6440 38 Nut M12 DBN1018 39 Screw BBZ30P060FTC 40 Screw BPZ30P080FNI 41 Screw BPZ30P100FTB 42 Screw BSZ20P040FTB 43 • • • • • 44 • • • • • 45 CHF1 Assy DWX4303 XDJ-XZ...

  • Page 90: Control Panel Section (2/3)

    "9.8 JOG DIAL SECTION". ×2 ×4 Refer to Refer to ×6 "9.8 JOG DIAL SECTION". "9.8 JOG DIAL SECTION". ×3 • Top view ×2 Refer to "7. DISASSEMBLY" ×2 Refer to Lubricating oil ×2 ×2 (GYA1001) "9.6 CONTROL PANEL SECTION (3/3)". XDJ-XZ...
  • Page 91 36 • • • • • 37 CRFD Assy DWX4295 38 Connector Assy PF03PP-B15 NSP 39 Cushion DEC3356 40 Lever DNH3211 41 Stay DNH3301 42 Holder DNK6425 43 Slider DNK6426 44 Guide Bar VLL1514 45 Screw BBZ30P060FTC 46 Screw BPZ20P050FTC 47 Screw CPZ26P080FTC XDJ-XZ...

  • Page 92: Control Panel Section (3/3)

    9.6 CONTROL PANEL SECTION (3/3) • Bottom view 19 2/2 15 1/2 19 1/2 15 2/2 15 2/2 19 2/2 19 1/2 19 1/2 15 1/2 19 2/2 19 1/2 19 2/2 18 2/2 1/4 24 2/4 24 3/4 24 • Top view XDJ-XZ...
  • Page 93 DEH1108 34 Frame DNH3423 NSP 14 2..DS Tape DEH1109 35 Ring Rens (PLAY) DNK5315 15 Button/TMP DAC2845 36 Lens DNK5862 16 Button/CAL DAC3020 37 Button Unit DXB2198 17 Button/DLT DAC3021 18 Button/RVL DAC3023 19 Button/MT DAC3029 20 Button/REL DAC3030 XDJ-XZ...

  • Page 94: Jog Dial Section

    9.7 JOG DIAL SECTION • Bottom view Refer to "7. DISASSEMBLY" Lubricating oil • Top view ×4 AA AB • Top view ×4 ×9 ×3 DS tape ×2 ×4 ×6 ×3 ×2 ×9 AC AD ×8 ×2 XDJ-XZ...
  • Page 95 39 Stay Assy/JOG DXB2133 40 JOG Dial A Assy DXA2159 41 Roller DXB2178 42 • • • • • 43 • • • • • 44 Screw BPZ20P100FTC 45 Screw BPZ30P080FNI 46 Screw IPZ20P060FTC 47 Screw IPZ20P080FTC 48 Screw (FE) DBA1265 XDJ-XZ...

  • Page 96: Lcd Section

    Incidentally, width of original tape is 10 mm, but width of service parts tape is 25 mm. " Acetate cloth tape for Service Width: 25 mm Length: 10 mm " Pasting position Width: 25 mm Reference position Acetate cloth tape (Lenth: 10 mm) Stay Reference position XDJ-XZ...
  • Page 97 23 Holder DNK6467 24 Lens DNK6468 25 Panel DNK6864 26 Cover DNK6865 27 Barrier DEC3888 28 Plate DAH3264 29 • • • • • 30 • • • • • 31 Screw BBZ30P060FTB 32 Screw BPZ26P080FTC 33 Screw BBZ30P060FTC XDJ-XZ...
