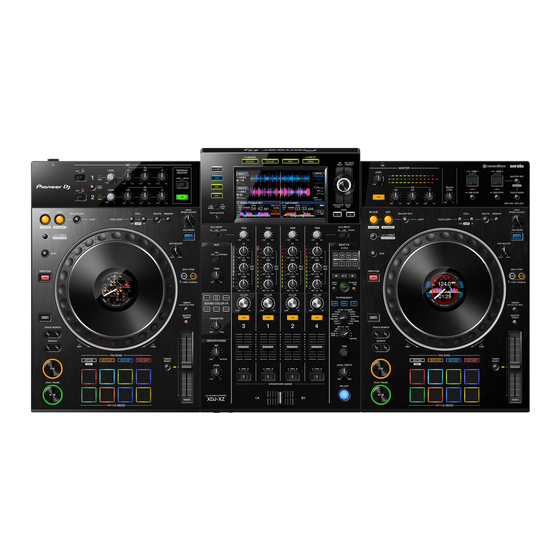

PIONEER DJ XDJ-XZ Operating Instructions Manual
Hide thumbs
Also See for XDJ-XZ:
- Operating instructions manual (136 pages) ,
- Service manual (97 pages) ,
- Service manual (116 pages)
Subscribe to Our Youtube Channel
Related Manuals for PIONEER DJ XDJ-XZ
Summary of Contents for PIONEER DJ XDJ-XZ

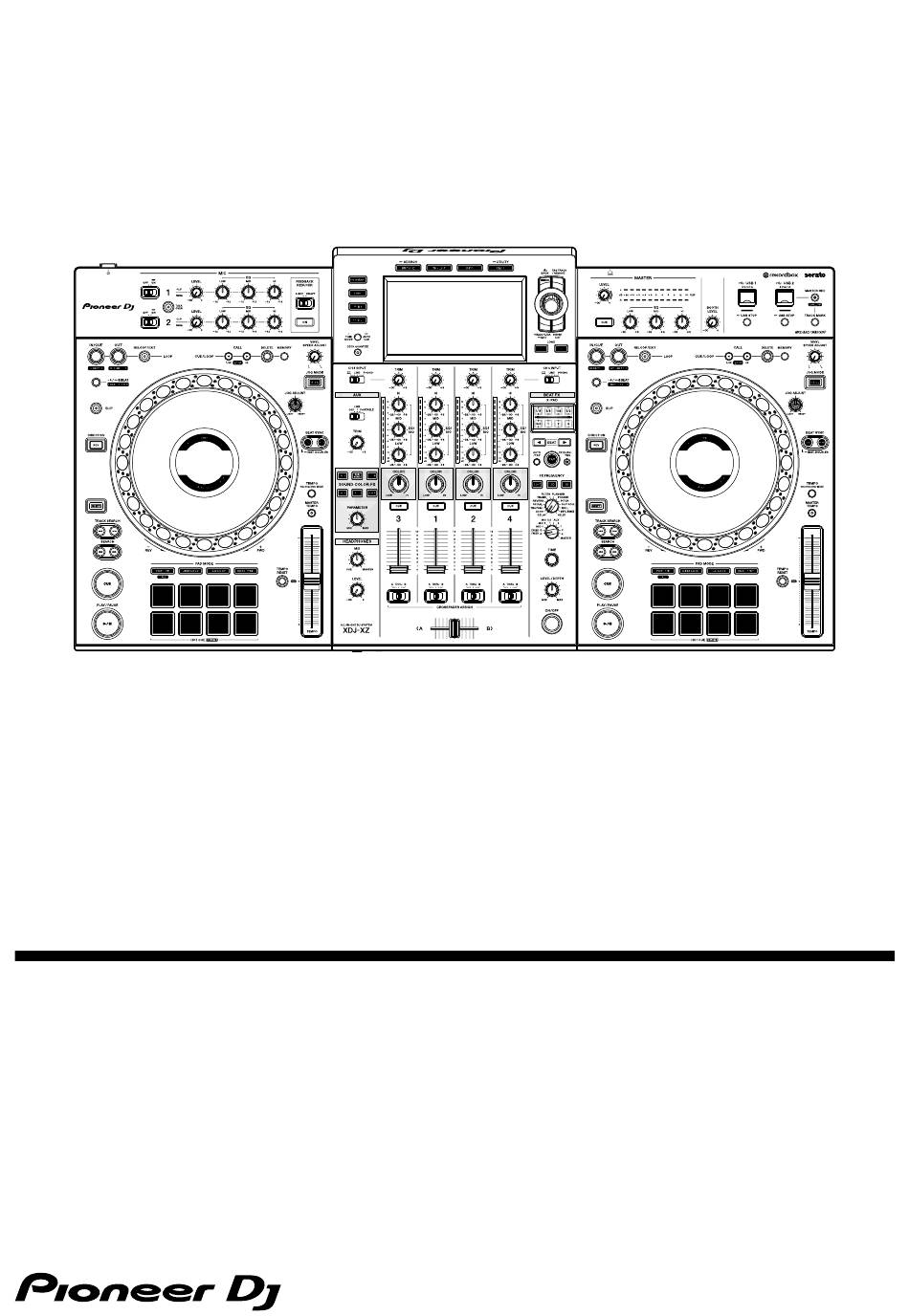

- Page 1 Operating Instructions (Quick Start Guide) All-In-One DJ System XDJ-XZ pioneerdj.com/support/ rekordbox.com For the latest software information, FAQs and other support information for this product, visit the above websites.
- Page 2 IMPORTANT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, CAUTION: The exclamation point within an equilateral within an equilateral triangle, is intended to TO PREVENT THE RISK OF ELECTRIC triangle is intended to alert the user to the alert the user to the presence of SHOCK, DO NOT REMOVE COVER (OR presence of important operating and...
- Page 3 WARNING AVERTISSEMENT This equipment is not waterproof. To prevent a fire or Cet appareil n’est pas étanche. Pour éviter les risques shock hazard, do not place any container filled with d’incendie et de décharge électrique, ne placez près de liquid near this equipment (such as a vase or flower lui un récipient rempli d’eau, tel qu’un vase ou un pot de pot) or expose it to dripping, splashing, rain or fleurs, et ne l’exposez pas à...
- Page 4 (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name: ALL-IN-ONE DJ SYSTEM Model Number: XDJ-XZ Responsible Party Name: Pioneer DJ Americas, Inc. OPERATIONS DIVISION Address: 2050 W, 190th Street, Suite 109, Torrance, CA 90504, U.S.A Phone: 1-424-488-0480 URL: https://www.pioneerdj.com/en-us/...
- Page 5 The Safety of Your Ears is in Your Hands Get the most out of your equipment by playing it at a safe level – a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.
-
Page 6: Table Of Contents
! This manual briefly explains procedures from connecting the unit to equipment, through to outputting sound. For more details on how to use the unit, refer to the “Operating Instructions” on the Pioneer DJ website. ! In this manual, the names of channels, buttons and terminals that appear on the product, and the names of menus, etc. -
Page 7: Before You Start
This unit is a system integrating a DJ player and DJ mixer in a single the screen. unit and inherits the technology of the Pioneer DJ CDJ series and DJM series, the club standard DJ equipment. You can enjoy authentic 2 Hover the cursor over [Support]. -
Page 8: Supported Media
Obtaining the driver software Don’t connect the unit to your Mac using the USB cable until the installation is complete. Launch a web browser on your PC/Mac and visit the Pioneer DJ ! Close all programs on your Mac. support page. -
Page 9: Part Names
Deck section Part names For further details on each button and knob, refer to the “Part names and functions” section in the “Operating Instructions.” 1 Power section (page 9 ) 2 USB device section (page 9 ) 3 Deck section (page 9 ) 1 LOOP OUT (OUT ADJUST) button 4 Browse section (page 10 ) 2 LOOP IN/CUE (IN ADJUST) button... -
Page 10: Browse Section
q BEAT LOOP button Mixer/effect section r SLIP LOOP button s BEAT JUMP button t Performance Pads u TEMPO RESET button, TEMPO RESET indicator Browse section 1 DECK QUANTIZE button 2 TIME MODE (AUTO CUE) button 3 USB 1, 2 buttons 4 LINK button 5 rekordbox button 6 BROWSE (SEARCH) button... - Page 11 k CROSSFADER ASSIGN (A, THRU, B) switches l X-PAD m BEAT c, d buttons n AUTO/TAP button o TAP button p FX QUANTIZE button q FX FREQUENCY buttons r BEAT FX selector switch s BEAT FX channel selector switch t TIME knob u LEVEL/DEPTH knob v BEAT FX ON/OFF button w Crossfader...
-
Page 12: Connections
! Use the shielded LAN cable supplied with the connecting device when you connect to the [LINK (CH3/CH4)] terminal. ! When sharing music files or information using PRO DJ LINK, don’t disconnect the LAN cable. ! For more information, refer to the “Operating Instructions” on the Pioneer DJ website. Connecting input/output terminals... - Page 13 7 MASTER1 output terminals a SIGNAL GND terminal ! Don’t connect a device that provides phantom power, or the b PHONO input terminals power cord of another product, to these terminals. ! Be sure to use the [MASTER1] output terminals for a balanced c LINE input terminals output.
- Page 14 PRO DJ LINK (LINK Export) ! You can select and play tracks managed on rekordbox on this unit by plugging the unit into your PC/Mac running the app using a USB cable, LAN cable (CAT5e) or wireless LAN (Wi-Fi) router. You can make performances using information such as playlists, cues, loop points and hot cues prepared on rekordbox.
-
Page 15: Operation
For more information, refer to the “Operating Instructions” on the = Connecting input/output terminals (page 12) Pioneer DJ support page. Adjust the volume of the power amplifier or powered speakers connected to the [MASTER1] and [MASTER2] output terminals to an Playback appropriate level. -
Page 16: Quitting The System
Also, the USB device may not be recognized on the unit. 2 Disconnect the USB device. 3 Close the USB slot cover. 4 Press the [u] switch. The unit turns off. Changing the settings For details, refer to the “Operating Instructions” on the Pioneer DJ support page. -
Page 17: Additional Information
Additional information Troubleshooting ! If you think something is wrong with the unit, refer to the [FAQ] for the [XDJ-XZ] on the Pioneer DJ support page. pioneerdj.com/support/ Also, check any connected devices. If you can’t solve the problem, ask your nearest Pioneer authorized service center or your dealer to carry out repair work. - Page 18 Functions and operations Problem Check Remedy The crossfader doesn’t work. Is the [CROSSFADER ASSIGN (A, THRU, B)] Set the [CROSSFADER ASSIGN (A, THRU, B)] switch to the proper position switch set to the proper position? for each channel. The Back Cue function doesn’t work. Is a cue point set? Set a cue point.
-
Page 19: Error Messages
(terrestrial, satellite, cable or other types of broadcasting), streaming on the Internet, Intranet (a corporate ! Pioneer DJ is a trademark of PIONEER CORPORATION and network) or other types of networks or distributing of electronic is used under license. rekordbox™ is a registered trademark or information (online digital music distribution service). -
Page 20: Specifications
MASTER1 output terminal Specifications XLR connector ................1 set MASTER2 output terminal Power requirements ............AC 120 V, 60 Hz RCA pin jacks ................1 set Power consumption ................55 W BOOTH output terminal Power consumption (standby)............0.3 W 1/4” TRS jack ................1 set Main unit weight ............ - Page 23 Within 40 days of receiving your complaint, Pioneer DJ will investigate the dispute and will either: (1) respond to your complaint in writing informing you what action Pioneer DJ will take, and in what time period, to resolve the dispute; or (2) respond to your complaint in writing informing you why it will not take any action.
- Page 24 URL suivantes : In the USA/Aux Etats-Unis or In Canada/Aux Canada http://www.pioneerelectronics.com S018_C1_EnFr_PSV © 2019 Pioneer DJ Corporation. All rights reserved. PDJ_001_all <DRH1539-A> Printed in Malaysia...
