Master/Slave Instruction Manual
2
1
3
7

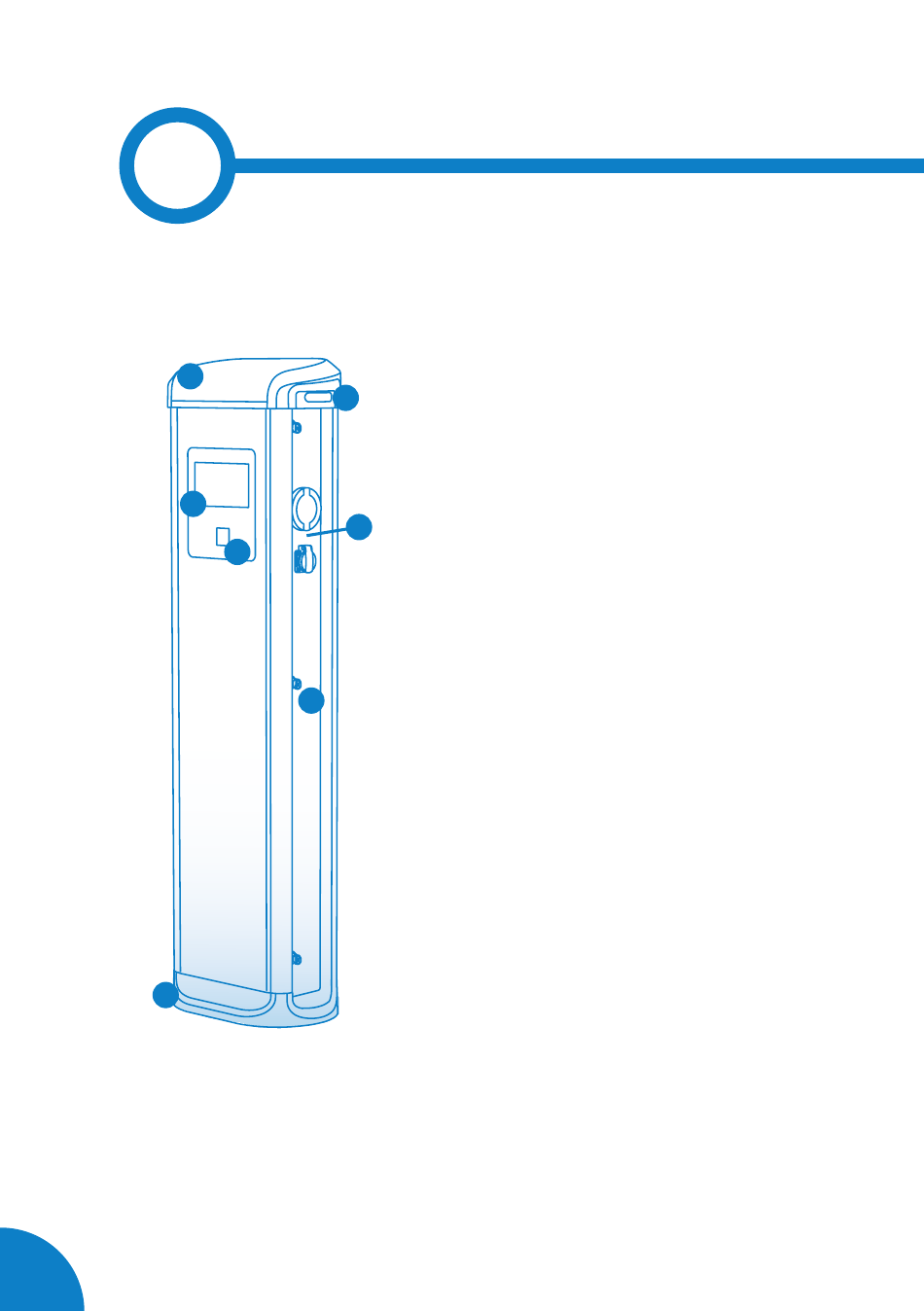

1 - Hat
3 - Touch screen
5 - Plugs*
7 - Base
(*) Plugs may vary depending on the model
06
Master
2
5
4
6
2 - LED Beacons
4 - RFID Reader
6 - Key lock
• HMI: 8'' colour touch screen as the interface
between the Charge Point and the user. Provides
detailed information about ongoing charge
transactions and the instructions of how to
interact with the Charge Point.
• Connector Lock: Type 2 connector has a lock
system to avoid disconnection of EV meanwhile is
charging.
• Light beacon: Three colour led indicates the
status of the connectors.
• RFID: User authentication.
• Ethernet: TCP/IP communication for remote
supervision and configuration.
• 4G Modem (optional): For those places where
wired communications are not sufficient.
• Energy metering: Integrated meter built is
measuring power and energy consumed by the EV
during a charge transaction.
• Remote access: For supervision and control from
everywhere.
• Charge transaction historics: Charge Point is
capable of storing information about the charge
transactions.
• OCPP: Open standard communication protocol,
allows communication between the Charge Point
and the Central System.
