Software-side
•
Open the menu:
•
The overview screen appears. This menu shows, how much alarm-outputs
are available and how the alarm outputs are occupied.
At the overview screen all alarm-outputs are listed. The amount of the alarm-
outputs is dependent from the amount of the installed IO-modules. Every IO
module has 2 alarm-outputs. If two IO modules are installed, the entire
amount of alarm-outputs is four. At the list, the user finds the information
which alarm signal is carry out at which alarm-output channel. The follow list-
notation can be found (example):
Reference:
1. The number of the IO module. 1 means, first IO module.
2. The value of the alarm-output. 3 means, the second alarm-output.
3. The sample point, from where the signal come. SP1 means, the first sample
point.
4. The signal-name. CH4 means, that this alarm-output monitors the CH4 channel.
This example means: At the second channel of the first IO module, the CH4 signal
from the first sample point will be transferred.

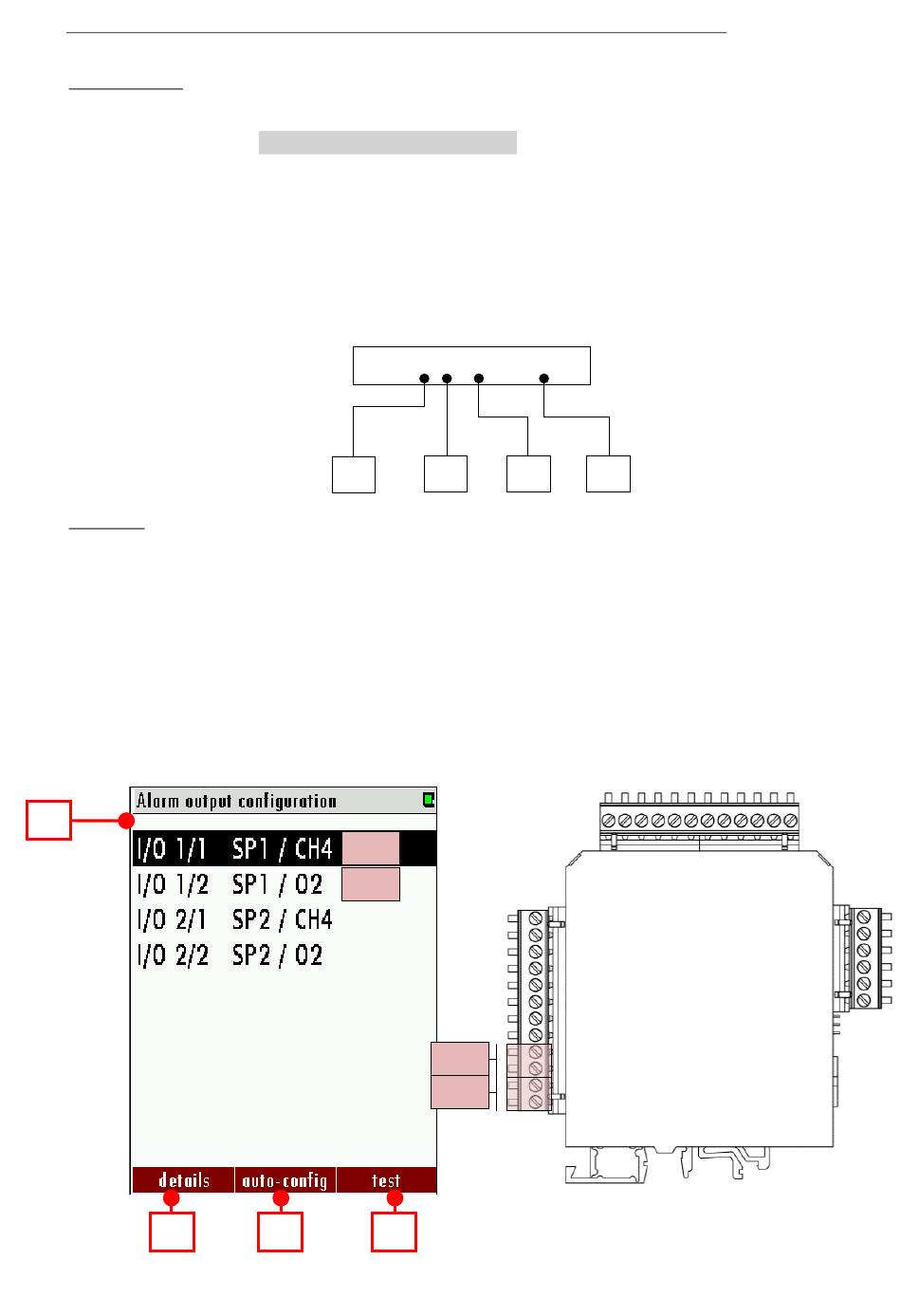

At the sketch below, the menu-screen and the analog-outputs at the first, of two IO
modules are shown.
1
2
Extras/Analog output configura
I/O 1/2 SP1 / CH4
1
AL1
AL2
3 4
