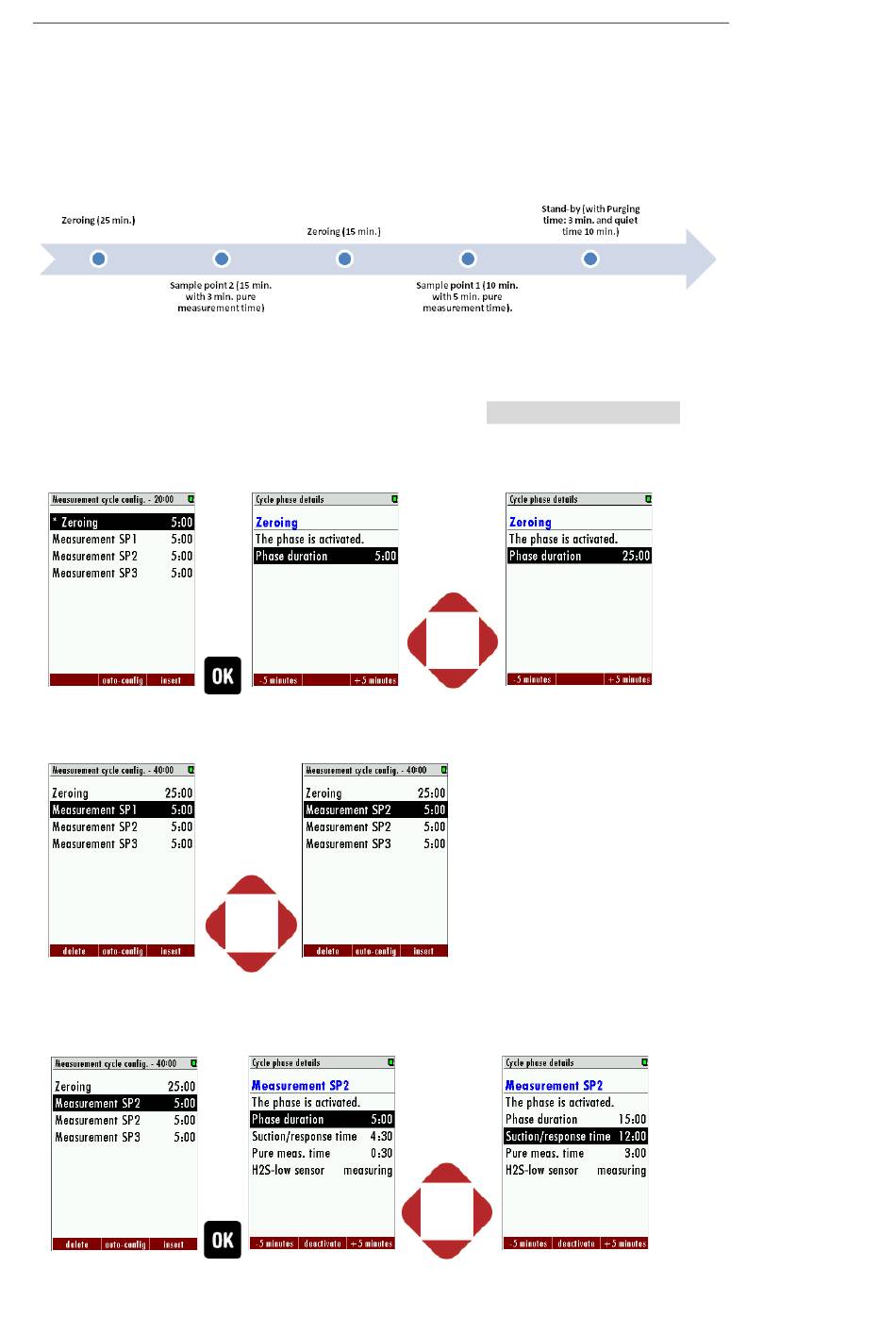

Example for a measurement cycle configuration
In this chapter an individual measurement cycle should be created with the features
described at the chapters below.
The measurement cycle should have the following sequence:
Following points must be done to configure the individual measurement cycle:
1. Open the measurement cycle config. menu: Path:
2. The default measurement cycle will appear. Open the cycle phase detail of the
first zeroing and adjust the phase duration at 25 min.
3. Leave the cycle phase detail and select the second point. Switch with the
left/right arrow keys
4. Open with the
the duration-phase at 15 min. and the suction/response time until the pure
meas. time has the value of 3 min. Use for this operation the
until the measurement SP2 is selected.
Or
F1/F3
OK key the cycle phase detail of the measurement SP2. Adjust
SWG 100 BIO Ex User Manual
E /
XTRA MEASUREMENT CYCLE CONFIG
Or
F1/F3
arrow
Or
F1/F3
Page 35
.
keys.
