Analog inputs (4-20 mA)
The analog inputs are on the top of the IO module. They are marked with a blue
label. Through the help of the analog inputs, the IO module can read all common 4-
20 mA transducer in the analyzer directly. The IO module has a separate 12 V power

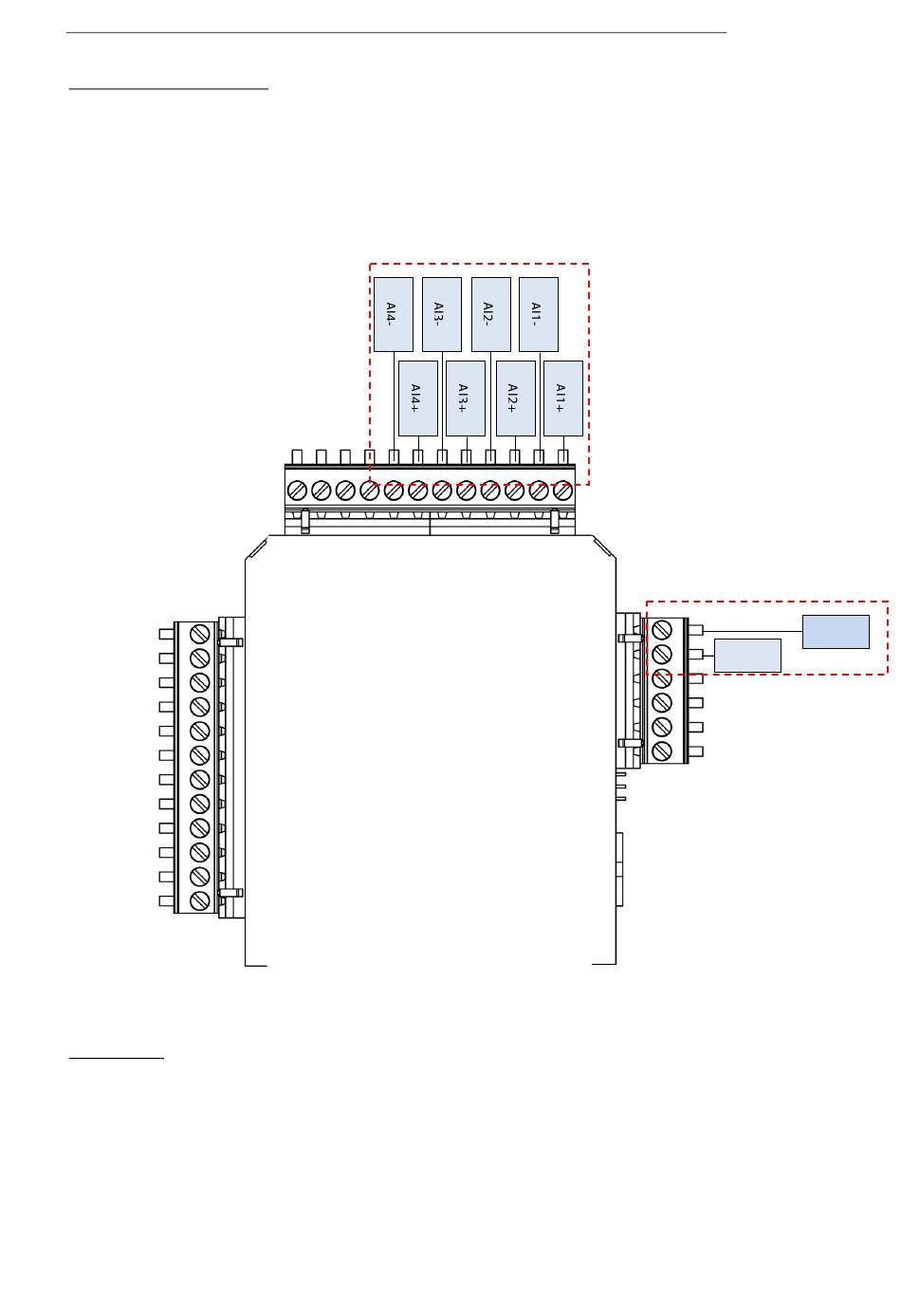

source, for the supply of the transducer. At the sketch below, the inputs and the
power supply, for the transducer are marked.
Information:
Internal Load:
Power supply for transducer:
The sketches below show how the common transducer can connect to the IO
module.
SWG 100 BIO Ex User Manual
Analog inputs
50 Ohm
12VDC / 200 mA
Power supply for transducer
V12+
Page 77 of 150
GND
