Depending on the analyser type, the first or the first and second phase cannot be
deleted, deactivated or moved to another position.
Delete a phase
With F1 a phase can be deleted. To do this, select the phase, which should be
deleted and press F1.
Insert a phase
F3
With a new phase is inserted in the measurement cycle. With the
arrow keys the different phase types can be selected.
In the title-bar the entire cycle time is shown. It is called "Measurement cycle
config."
OK
With the "Cycle phase details" can be shown and changed.
Configuration of the phase details
In this chapter the different cycle phase details will be explained.
SWG 100 BIO Ex User Manual

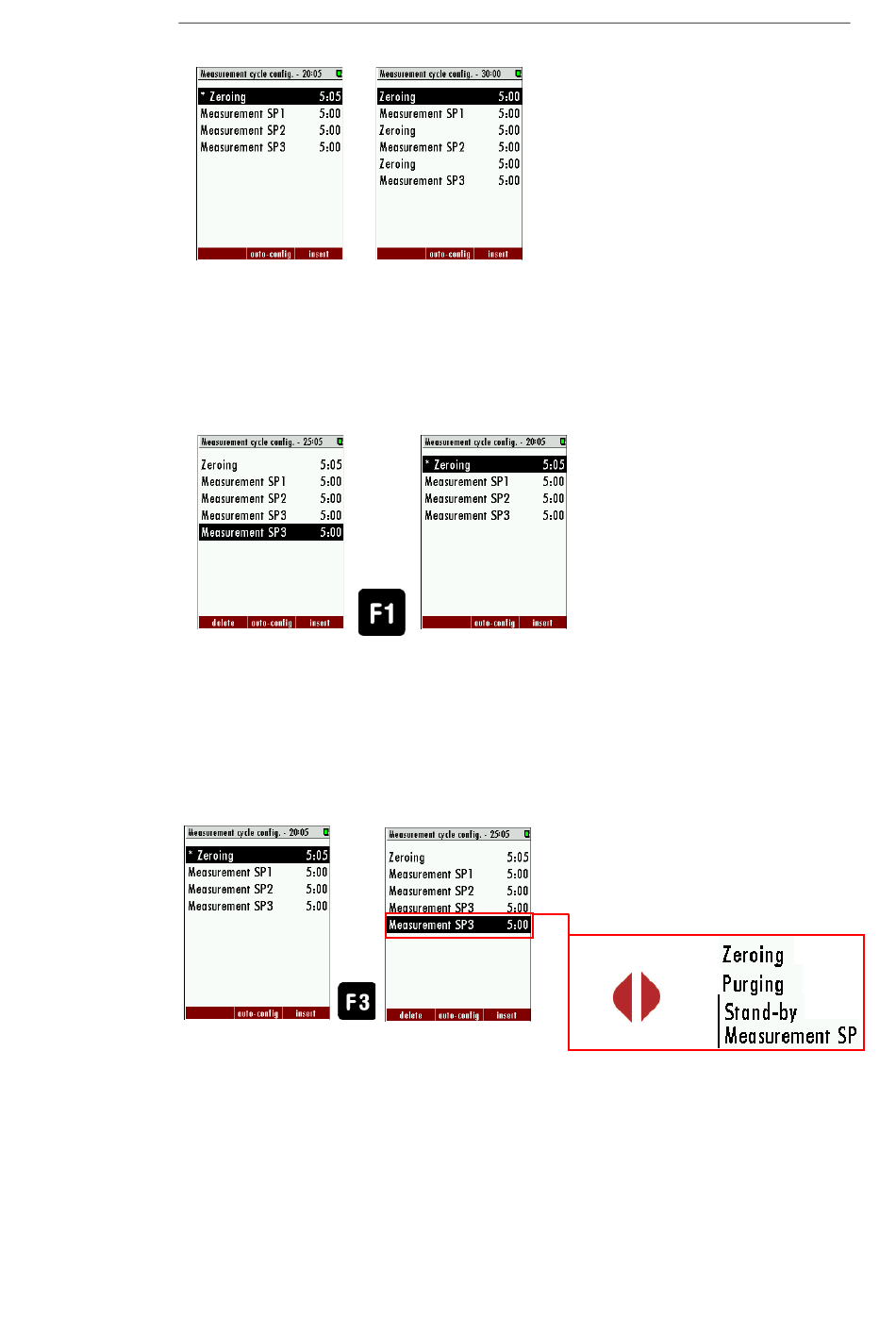

The two auto-configurations, which can be
selected.
Screenshot shows how a
phase can be deleted. In
this example the last
phase "Measurement
SP3" is deleted.
+ =
right/left
of
