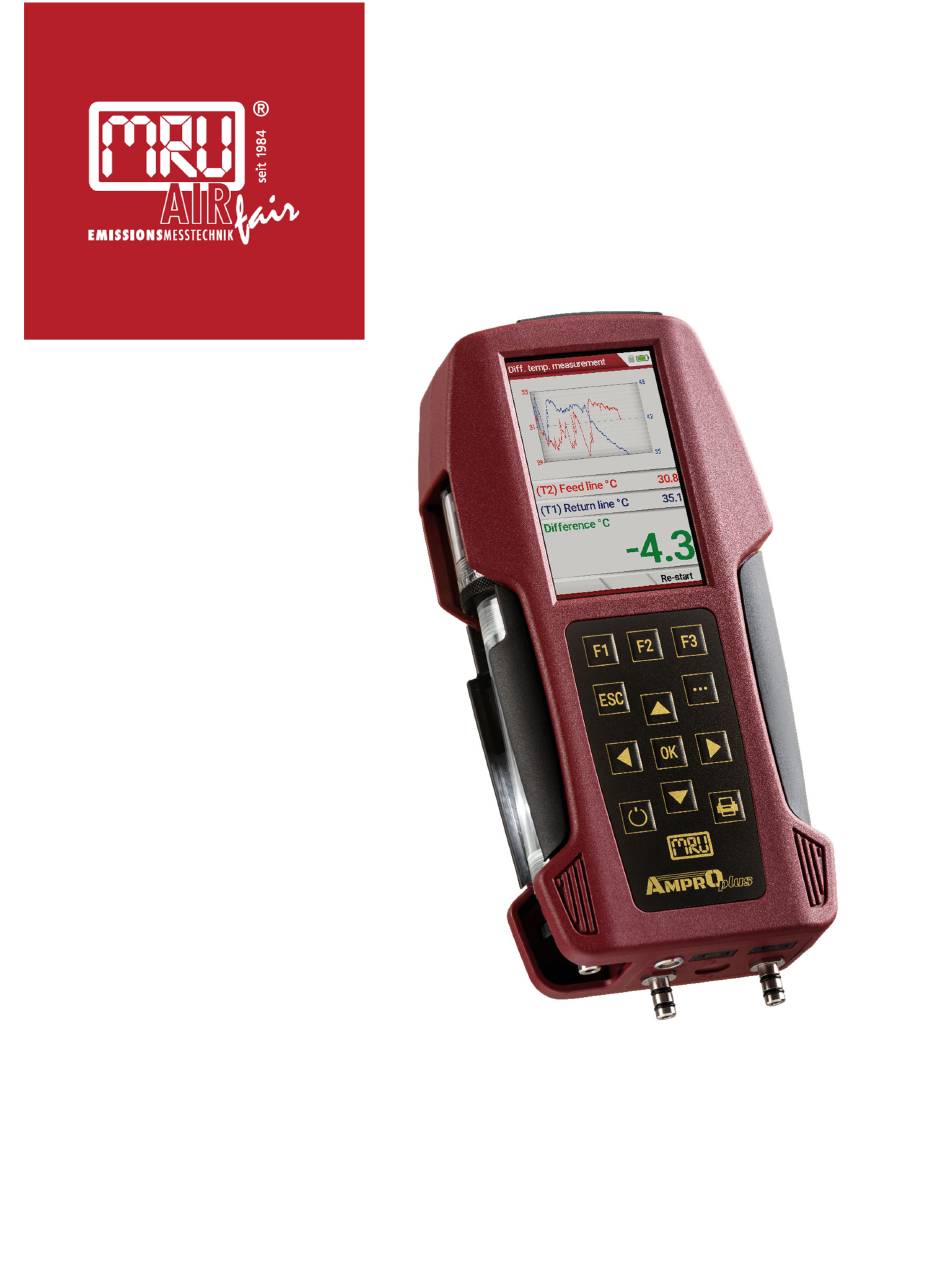

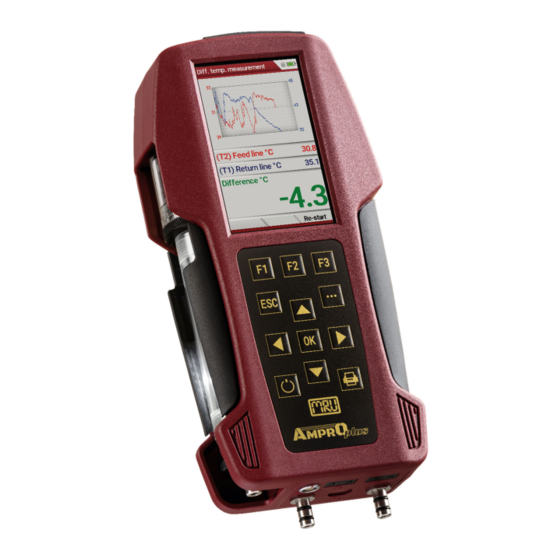

- Page 1 plus AMPRO USER MANUAL 4202DE...
- Page 2 USER MANUAL AMPROplus Producer: Legal notices / Intellectual property rights comments Original user manual © 2021 by MRU No part of this manual my be published in any form (print, fotocopy, electronic media or any other publication form) without a written approval by the publisher.
-
Page 3: Table Of Contents
USER MANUAL AMPROplus Table of contents Information for product and safety ............. 6 1.1. Safety manual ......................6 1.2. Safety precautions ....................6 1.3. Ensure safety ......................7 1.4. User guideline for rechargeable batteries ........... 7 ... - Page 4 USER MANUAL AMPROplus 6.4. Measuring with grid power supply / Battery charging......36 6.5. Measurements in battery mode (battery monitoring) ......36 6.6. Operating temperature ................... 37 6.7. Control Condensate separator ..............37 ...
- Page 5 USER MANUAL AMPROplus View measurements....................65 Delete measurements ....................66 8.6. Messergebnisse als OR-Code ................68 Livemessung als QR-Code ..................68 Gespeicherte Messung als QR-Code ..............69 Extras / Adjustment ................70 ...
-
Page 6: Information For Product And Safety
USER MANUAL AMPROplus Information for product and safety 1.1. Safety manual All general information and safety precautions of MRU products are listed in the supplied separate safety manual. Therefore, this manual must be read and observed before the first use of the instrument . -
Page 7: Ensure Safety
USER MANUAL AMPROplus 1.3. Ensure safety ► Please read the user manual completely before the first use. ► Only use the analyser for the intended use and within the parameters specified in the technical data. ► Do not use any violence. - Page 8 USER MANUAL AMPROplus ► The rechargeable battery must not be used in or under water. ► Do not expose the rechargeable battery to strong mechanical forces and do not throw it. ► Do not cut or squeeze the connecting cables of the rechargeable battery.
-
Page 9: Introduction
USER MANUAL AMPROplus Introduction This manual enables you to understand and safely operate this MRU Ana- lyser. Please read this manual with great vigilant and get familiar with the prod- uct before using it. This Analyzer may only be operated by competent personnel and for its intended use. -
Page 10: About Us
► Modifications or changes to the measuring device are not allowed. 2.2. About us The analyzer is produced by the MRU GmbH in Neckarsulm, Germany (Founded in 1984), a medium sized company that specializes in developing, producing and marketing high quality emission monitoring analyzers. -
Page 11: Important General Information (En 50379 And Vdi 4206)
Save the original carton and packing materials to prevent damage in transit in case you need to return the unit to the factory. 2.5. Return of hazardous materials Waste Disposal/Returns/Warranty - MRU is required to accept the return of hazardous waste such as electro-chemical sensors that cannot be disposed of locally. -
Page 12: Return Of Electronic Equipment
USER MANUAL AMPROplus 2.6. Return of electronic equipment MRU is required to accept the return, for proper disposal, of all analyzers de- livered after 13th of August 2005. Analyzers must be returned to MRU pre- paid. MRU GmbH, D-74172 Neckarsulm... -
Page 13: Description
Available options for this and other analysers can be found on the MRU Homepage or speak to a member of our sales team. 3.1. Gas flow diagram... - Page 14 USER MANUAL AMPROplus The analyzer consists of a compact and robust glass-fiber reinforced plastic hous- ing. All connections relevant for the measurement are located on the bottom of the analyzer. MRU GmbH, D-74172 Neckarsulm 14 / 100...
-
Page 15: Condensate Seperator (Water Trap)
USB-Port / Charging port Sampling probe connec- tion Condensate separator SD-card reader (Only by us- Pressure connection 1 ing an MRU-SD card we (Differential Pressure) can assure the compatibil- ity of all analyzer functions Analyzer feet Pressure connection 2 (op-... - Page 16 USER MANUAL AMPROplus Condensate separator with- out water stop filter Remove the condensate separator by lifting it out from the groove (1) of the analyzer. Then pull out the condensate separator downwards (2). Liquid discharged from the condensate separator may be slightly acidic.
- Page 17 USER MANUAL AMPROplus Condensate separator with- out water stop filter MRU GmbH, D-74172 Neckarsulm 17 / 100...
- Page 18 USER MANUAL AMPROplus The water stop filter protects the analyzer from moisture. The water stop filter closes as soon as there is a risk that condensate is sucked into the analyzer. A closed water stop filter can be indicated, for example, by the fact that the flow rate is too low.
-
Page 19: Extraction Probes
USER MANUAL AMPROplus 3.4. Extraction probes In combination with the analyzer, gas sampling probes are offered in differ- ent versions with fixed probe tube or with exchangeable probe tube. For a complete overview of accessories, see the company's current price list. -
Page 20: Operating
USER MANUAL AMPROplus Operating 4.1. Display All the information needed for the operation of the analyzer can be obtained from the analyzer's display, which contains the following information. Position Description Menu bar Display panel Menu Measurement values Function key bar... -
Page 21: Keypad
USER MANUAL AMPROplus 4.2. Keypad Description of the keys and their functions: Function A short press switches the an- ON/OFF alyzer on without delay. Switching off the device is de- layed to protect the sensor when no ambient air is pre- sent. -
Page 22: First Usage
USER MANUAL AMPROplus analyzer. In particular, all installed measuring tasks are listed here and can be selected. Menu Storage All available storage options will be displayed and can be selected here. Menu Extra All other actions are available here to manage and customize the an- alyzer. -
Page 23: Preparatory Steps
USER MANUAL AMPROplus 5.1. Preparatory steps ► Unpack the analyser. ► Read the User Manual completely. ► The analyser leaves the factory assembled and ready for use. Nevertheless, check the device for completeness and integrity. ► Charge the battery of the analyser for about 8 hours. -
Page 24: Export And Import Settings
USER MANUAL AMPROplus Setting Range Description LCD brightness 5 – 100 % Setting the display contrast Country Option By switching the country, the set O2 reference values are lost. The fuel list is reset. Country-specific de- fault settings and measuring procedures are also set. -
Page 25: Export User Settings
USER MANUAL AMPROplus Export user settings ► Make sure that there is an SD card in the analyzer. ► Go to the menu Settings. See also chapter 5.2 Customize settings, Page 23. ► Press the menu key. A selection list appears. -
Page 26: Import User Settings
USER MANUAL AMPROplus Import user settings ► Insert the SD card with the exported settings into the desired analyzer. ► Go to the menu Settings. See also chapter 5.2 Customize settings, Page 23. ► Press the menu key. A selection list appears. - Page 27 USER MANUAL AMPROplus In the menu "Measurement settings" menu you can make the following cus- tomizations: Setting Range Description Temperature unit °C, °F Select temperature unit Diff. press. unit hPa/Pa, hPa, kPa/Pa, Select pressure unit kPa, mbar, mmH2O, cmH20, inchH2O, mmHG,...
-
Page 28: Set Bluetooth Parameters
USER MANUAL AMPROplus 5.5. Set Bluetooth parameters Depending on the features, the analyzer can be used to exchange measure- ment data wirelessly with external devices: With MRU4U (App for Android and iOS Smartphones) With MRU4Win With MRU Bluetooth-Printer Depending on the software version of the danalyzer and the technical reali- zation of the Bluetooth interface, settings for data transfer may be required. -
Page 29: Setting Date And Time
USER MANUAL AMPROplus 5.6. Setting date and time If the built-in rechargeable battery is completely discharged, a new setting of these values is required ► Press F3. The Extra menu appears. ► Select Date / Time. ► Press OK. -
Page 30: Set Co-Limit
USER MANUAL AMPROplus 5.8. Set CO-Limit ► Select Gas measurements. ► Press OK. The menu Selection meas. program appears. ► Select the desired measuring program from which the CO limit value is to be set ► Press F1. The menu Co-Limit appears. -
Page 31: Add Fuels To Fuel Type Selection
USER MANUAL AMPROplus Note that you can only select the Fuel type selection if the combustion calculation has been switched on. Each time a See also chapter 5.4 Set measurement, Page 26 measuring program for flue gas measurement is called up, a fuel can be selected from a list. Which fuel is available for selection can be selected from a fuel type list. -
Page 32: Set O2-Reference
USER MANUAL AMPROplus Set O2-reference ► Gehen Sie in das Menü Brennstoffliste. Siehe auch Kapitel Error! Reference source not found., S. Error! Bookmark not defined.. ► Go the menu Fuel type list. See also chapter Add fuels to fuel type selection, Page 31. - Page 33 USER MANUAL AMPROplus NOTE The last 4 fuels in the menu Fuel type list are the user fuels. The user fuels are indicated in the menu Fuel Type list in green colour. ► Go the menu Fuel type list. See also chapter Add fuels to fuel type selection, Page 31.
-
Page 34: Define Measurement Window
USER MANUAL AMPROplus ► Select the desired fuel parameter. ► Change the desired fuel parameter. ► Press OK. The defined user fuel appears in the menu Fuel type list. You can add the defined user fuel to the menu Fuel type selection. -
Page 35: Configure Zoom Window
USER MANUAL AMPROplus 5.13. Configure zoom window In each measuring program, a zoom window is available for the enlarged display of measured values. You can choose between two zoom views. ► Press the arrow key at the top to display four measured values with the respective curve. -
Page 36: Prepare Measurement
6.2. Ensure power supply The analyser can be used with: with the internal MRU battery (provided) with the MRU battery charger (provided) External equipment may only be connected while the analyser is switched off! 6.3. -
Page 37: Operating Temperature
USER MANUAL AMPROplus 6.6. Operating temperature If the analyser has been stored at low temperatures, it will require some time to equilibrate to the ambient temperature before being switched on. If it does not equilibrate, condensation will occur inside the analyser! -
Page 38: Automatic Zero Point
USER MANUAL AMPROplus Check all hoses, hose connections, condensate containers (from the probe tip to the gas connection on the analyser) for tightness. The analyser has a built-in automatic test to check the tightness of the gas paths. See also chapter 9.4Performing leak test, Page 73 6.9. -
Page 39: Repeat Zeroing
USER MANUAL AMPROplus Repeat zeroing The zeroing can be repeated at any time as long as the probe is not inside the stack ► Go to the Measurement menu ► Select Zeroing ► Press OK. Zeroing is started. MRU GmbH, D-74172 Neckarsulm... -
Page 40: Performing Measurement
USER MANUAL AMPROplus Performing measurement In the basic configuration, each analyser has the complete functionality you need for gas measurement. The process of gas measurement is described below. The description of other optionally available measuring programs can be found in the appendix or on separate supplementary sheets. -
Page 41: Select Measurement Program
USER MANUAL AMPROplus Insert the probe pipe slowly into the stack and position your probe pipe when you have reached the maximum flue gas temperature that is dis- played. Maximum temperature has been reached when the arrows (left picture) dis- appear, max. - Page 42 USER MANUAL AMPROplus ► Go to the Measurement menu. ► Select Gas measurements. ► Press OK. The menu Selection meas. program appears. ► Select the desired measurement program. ► If necessary, change the CO-Limit. See also chapter 5.8 Set CO-Limit, Page 30.
-
Page 43: Perform Annular-Gap Test
► Press F3. The currently measured values for Draft and T-gap are displayed. The MRU annular gap multi-hole probe No. 56352 is suitable for annular gap measurement. The silicone hose is attached to the condensate separator of the analyzer. -
Page 44: Perform Test Program
USER MANUAL AMPROplus Perform Test program The test program is used by test facilities to check the analyzer by means of test gas in the measuring program. No calculations are performed during the test program. ► Select Gas Measurements. ► Press OK. -
Page 45: Store Values Into Temporary Buffer
USER MANUAL AMPROplus Store values into temporary buffer During a running measurement you can store the store the current values in the temporary memory. ► Start a Gas measurement. See also chapter 7.1 Perform Gas measurement, Page 40. ► Press the menu key. - Page 46 USER MANUAL AMPROplus ► Stop the Measurement. The measuring window is greyed out. ► Press F3. The measured values stored in the temporary memory are displayed. If you have stopped a measurement without first storing the measured values in the temporary buffer, you can store the measured values directly in the temporary buffer from the function key bar.
-
Page 47: Overwrite Measured Values In Temporary Buffer
USER MANUAL AMPROplus Overwrite measured values in temporary buffer You can overwrite the measured values stored in the temporary buffer with the currently displayed measured values ►Press the menu key. A selection list appears. ► Select overwrite clipboard. ► Press OK. -
Page 48: Perform Pressure Measurement
USER MANUAL AMPROplus 7.3. Perform pressure measurement Pressure (4 values) is measured and saved to the selected measurement name. The actual measured value is displayed in the middle of the dis-play. The 4 measurement names can be changed as desired. -
Page 49: Perform Differential Temperature Measurement
► Plug a temperature sensor into the T1 connection. ► Plug a temperature sensor into the T2 connection. NOTE The accuracy of the difference temperature measure-ment is guaranteed only on use of the MRU temperature sen- sors. ► Go to the Measurement menu. ► Select Diff. Temp. measurement. -
Page 50: Store Measurement Values
USER MANUAL AMPROplus ► Press the menu key. A selection list appears. ► Select the desired item from the selection list. For example, select the print-out (Pr) item to print the measurement. 7.5. Store measurement values If "store" is displayed in the function key bar, you can save measurement re- sults to the data memory using the related function key F2 or F3. -
Page 51: Enter T-Boiler, Soot And Derivative
USER MANUAL AMPROplus Enter T-boiler, Soot and Derivative The analyzer does not have a soot measurement. ► However, you can enter determined soot data to save or print them to- gether with the measurement data. NOTE Before you can enter the soot data, you have to activate the setting “Add soot &... -
Page 52: Print Measurement Values
USER MANUAL AMPROplus 7.6. Print measurement values You have the possibility to print measurement results via the following op- tionally available printers. Speed printer (IR desktop printer) HSP 580 (Highspeed-Bluetooth-Thermoprinter) NOTE Before you can print measurement results, you must select and configure the appropriate printer (printer type) in the menu printout. -
Page 53: Print Measurement Results With Speedprinter
USER MANUAL AMPROplus Setting Description Printer type Selection of the printer type Print site lines Line 1 (plant number) is required. The other lines (free text lines) can be printed if required. Print analyzer info Measurement printouts can be made shorter by omitting the analyzer. - Page 54 USER MANUAL AMPROplus ►Press the printer key. Optionally, press the context menu key and select Printout (Pr.) A print-out is created. Further technical specifications as well as battery and paper rolls changes please see separate printer manual. MRU GmbH, D-74172 Neckarsulm...
-
Page 55: Print Measurement Results With Highspeed-Bluetooth-Thermoprinter
USER MANUAL AMPROplus Print measurement results with Highspeed-Bluetooth-Thermoprinter ► Go to the menu print-out. See also chapter Open menu print-out, Page 52. ► Select Bluetooth-HSP as Printer type. ► Press F2. The connection between analyzer and the printer is established. -
Page 56: Stop Measurement
USER MANUAL AMPROplus 7.7. Stop measurement A running measurement can be stopped at any time by pressing the F1 key. The window changes colour and the measured values are frozen. All measured val- ues available at the time of stopping are available in the analyser and can still be displayed. -
Page 57: Data Storage
USER MANUAL AMPROplus Data storage 8.1. Organize data storage The basis for the data storage of the analyzer is saved sets of sites inside the ana- lyzer. Each site has a distinct site number as well as 8 additional free text lines for names and address. -
Page 58: Sites Administration
USER MANUAL AMPROplus 8.3. Sites administration In the sub menu Sites administration, you can: Im Menüpunkt Anlagenstamm können Sie View all data of the stored sites Create new sites Change data on existing sites Delete sites... -
Page 59: Change Sites
USER MANUAL AMPROplus ► Go to the Storage menu. ► Select Sites administration. The menu Sites administration appears. Each stored site is displayed on a page with the colored site number and eight additional free text lines. ► If necessary, scroll through the sites until you have found the desired site. - Page 60 USER MANUAL AMPROplus ► Go to the Storage menu. ► Select Sites administration. ► Press OK. The menu Sites administration appears. ► Select the site you want to delete. ► Press F3. A message appears. ► Select continue to delete the site.
-
Page 61: Transfer Data Via Using Sd Card
USER MANUAL AMPROplus Delete all sites ► Go to the Storage menu. ► Select Delete all sites. ► Press OK. A message appears. ► Select continue to delete all sites. ► Select abort to retain all sites. ► Press OK. -
Page 62: Import Sites
USER MANUAL AMPROplus Import sites With this function you can import Sites which have been created on a com- puter or another Analyzer. The File name must have the name “anlagen.csv“(anlagen = German for sites). The file has no column heading that means that the first line al-ready has user data. -
Page 63: Export Sites
USER MANUAL AMPROplus Export sites This function can be used for an analyser back up or if you wish to sup-ply the analyser information to a computer program or another ana-lyser. This is very handy if you have made some modifications inside the analyser... -
Page 64: Export Measurements
USER MANUAL AMPROplus Export measurements With this function, the analyzer can make its stored measurements available to a PC. Attention, this function is not suitable as a backup or for transferring the measurements to other measuring devices, as the measurements cannot be imported again. -
Page 65: Measurements In Data Storage
USER MANUAL AMPROplus 8.5. Measurements in Data storage View measurements ► Go to the Storage menu. ► Select View measurements. The menu View measurements appears. An overview of the number of stored measurements depending on the measurement type appears. -
Page 66: Delete Measurements
USER MANUAL AMPROplus Delete measurements You can Delete single measurements Delete all measurements or delete all measurements of a measurement type Delete single measurements ► Go to the Storage menu. ► Select View measurements. ► Drücken Sie OK. - Page 67 USER MANUAL AMPROplus Delete all measurements ► Go to the Storage menu. ► Select Delete measurements. ► Press OK. The menu Delete measurements appears. ► Select which measurement type you want to delete. ► Press F2. A message appears.
-
Page 68: Messergebnisse Als Or-Code
Messung) in einer Anlage können als QR-Code im Gerät angezeigt werden. Vor einer Nutzung muss das geeignete Dateiübertragungsprotokoll eingestellt werden - ZIV oder MRU. Das ZIV-Protokoll ist i.d.R. geeignet für den Datenaustausch mit Fremdsoftware, das MRU-Protokoll kommuniziert mit MRU-Software (MRU4u) ►... -
Page 69: Gespeicherte Messung Als Qr-Code
► Wählen Sie eine gespeicherte Messung aus. ► Drücken Sie die Menütaste. Eine Auswahlliste erscheint. ► Wählen Sie OR-ZIV oder QR-MRU. Beachten Sie, dass die Darstellung abhängig vom zuvor eingestellten Dateiübertragungsprotokoll ist. ► Drücken Sie OK. Der QR-Code erscheint. -
Page 70: Extras / Adjustment
The Service menu is protected by a PIN code against unauthorized access. For the PIN code, contact an MRU service center (www.mru.eu). If you have started the PIN code query by mistake, press the ESC key. You will return to the Extras menu. -
Page 71: Default Settings
USER MANUAL AMPROplus 9.2. Default settings The analyzer is reset to the default settings. NOTE With the default settings, all individual settings are lost. ►Go to the Extras menu. ► Select Default settings. ► Press OK. A window appears. -
Page 72: Service Values
In this menu you will see all ser- vice values of the sensors and also other parameters. In case of a defect contact the MRU service department. The MRU ser-vice technician will ask you about these values or he will ask you to send them by fax or email. -
Page 73: Performing Leak Test
USER MANUAL AMPROplus NOTE For the PIN code, contact an MRU service center (www.mru.eu) ► Enter the Pin-Code. The selected function test is switched on or off. 9.4. Performing leak test During the leak test, the system (including the condensate separator) is checked for leaks by the analyzer. -
Page 74: Contents Sd Card
If the leak proof test is not passed, you must check the probe including the tubing and the condensate separator. If no leakage is detected on these external parts, the analyzer has to be check service center (service centers at www.mru.eu). 9.5. Contents SD card ► Go to the Extras menu. -
Page 75: Device Info
USER MANUAL AMPROplus 9.6. Device info ► Go to the Extras menu. ► Select Device info. ► Press OK. The menu Device info appears. Information about the analyzer is displayed, for example serial num- ber and firmware version. -
Page 76: Option: Solid Fuel Measurement
USER MANUAL AMPROplus 10 Option: Solid fuel measurement The Solid fuel measurement allows the measurement of solids such as dry wood, coal and pellets. With this option, a special CO sensor for solids measurement is also installed. During the measurement, the other CO sensor is purged. -
Page 77: Filter Unit For Solid Fuel Measurement (# 11153)
USER MANUAL AMPROplus ► Press F3. The 15 minutes averaging starts. A 15-minute countdown is shown in the display ► If necessary, press F2 to switch between the average values and the cur- rent values. After the 15-minute countdown has elapsed, averaging stops auto- matically. - Page 78 For this work protective clothing carry, granulates can be weakly acid! The old granulates is special refuse! MRU commits itself to take all special refuse parts back, which cannot to be disposed on the "normal" way, supplied by us. The return must take place for us free of charge...
- Page 79 USER MANUAL AMPROplus MRU GmbH, D-74172 Neckarsulm 79 / 100...
-
Page 80: Option: Humidity Measurement With Hygrometer
USER MANUAL AMPROplus 11 Option: Humidity measurement with hygrometer With the optionally available hygrometer you can determine the relative hu- midity (%), the dew point and the temperature. The hygrometer is connected to the AUX-connector of the analyzer via a SMARTplus adapter. -
Page 81: Option: Leak Detection (External Hc Probe)
USER MANUAL AMPROplus 12 Option: Leak detection (external HC probe) The external HC probe is used for leak detection on gas pipelines in non EX environment. The external HC probe is used to locate CH4 (methane). The measuring range of the HC probe is 5-20,000 ppm ►... - Page 82 USER MANUAL AMPROplus ► Set the desired alarm threshold. ► If necessary, press F2 to take a zero point. ► If necessary, press F3 to switch on an acoustic alarm. If activated, an acoustic alarm signal sounds as soon as the measured HC environment [ppm] exceeds the value of the set alarm threshold.
-
Page 83: Option: Flow Measurement With Vane / Anemometer
USER MANUAL AMPROplus 13 Option: Flow measurement with vane / anemometer With the optionally available vane wheel/anemometer you can measure the flow velocity. The vane / anemometer is connected to the AUX-connector of the analyzer via a SMARTplus adapter. ► Plug the corresponding connector of the SMARTplus adapter into the AUX-connector of the analyzer. -
Page 84: Set Units And Cross Section Area
USER MANUAL AMPROplus 13.2. Set units and cross section area ► Press F1. The menu Settings appears. ► Set the desired meas. units. ► Set the desired cross section area. ► Geben Sie die gewünschten Seitenlängen/ Durchmesser ein. ► Enter the desired lengths/diameter. -
Page 85: Perform Measurement
USER MANUAL AMPROplus 13.3. Perform measurement ► Perform the measurement for measuring point no. 1. ► Press F2 as soon as the measurement for Measuring point no. 1 is fin- ished. The measured values for measuring point no. 1 are accepted. -
Page 86: Option: Monitoring Flow Rate
USER MANUAL AMPROplus 14 Option: Monitoring flow rate The flow rate is continuously monitored. In the event of an error, the follow- ing message appears in the display: If the flow rate is too low, this message is displayed every 8 seconds. -
Page 87: Option: Auto-Measurement
USER MANUAL AMPROplus 15 Option: Auto-measurement With the automatic measurement option, the analyzer can log continuous measurements independently. You can largely adapt the properties of the automatic measurement to your individual requirements. The data is stored in the internal data memory and can then be transferred to the SD card. - Page 88 USER MANUAL AMPROplus No: Analyzer stores the values being measured at the end of the interval. The measurement starts. The display shows the remaining time of the measurement. After the set measuring time has elapsed, the measurement stops au- tomatically.
-
Page 89: Appendix
USER MANUAL AMPROplus 16 Appendix 16.1. Technical data General data Operating temperature +5°C … +45 °C / +41°F … +113 °F Rel. Humidity, non-condensing Storage Temperature -20°C - +50°C / -4°F … 122° F Internal Battery Pack, operating hours (typical) - Page 90 USER MANUAL AMPROplus Auflösung 1 ppm Genauigkeit absolut / vom Messwert ± 10 ppm 5% (0 – 4000 ppm) 10% (> 4000 ppm) Ansprechzeit T90 < 40s Elektrochemischer Sensor CO high (Option #63057, # 63295) Nominaler Messbereich 0 - 4000 ppm Überlastbereich...
- Page 91 USER MANUAL AMPROplus Differenzdruck Messbereich ± 100 hPa Genauigkeit abs. / vom Messwert 0,02 hPa oder 1% Berechnete Werte Messbereich (Brennstoffabhängig) 0 - CO Genauigkeit abs. ± 0,3 Vol. % Lambda (Luftverhältniszahl) Messbereich 1 - 20 Luftüberschuss Messbereich 0 - 999%...
-
Page 92: Analyse Und Berechnung
USER MANUAL AMPROplus 16.2. Analyse und Berechnung Kontinuierliche Umrechnungen zu CO [ ppm ] bez. auf 0% Rest O (unverdünnt) [ ppm ] bez. auf brennstoffabhängigen O Bezugswert [ mg/m [mg/kWh] [ mg/MJ] [ mg/m ] bez. auf brennstoffabhängigen O... -
Page 93: Brennstofflisten
USER MANUAL AMPROplus 16.3. Brennstofflisten Deutschland O2 ref Fw CO_kWh ETAcond Brennstoff (*) CO2max A2 fact Messgas 0,00 0,000 1000 Erdgas BImSchV 11,8 0,66 0,009 8730 1110 Erdgas L 11,8 0,66 0,009 8730 1110 Erdgas H 12,1 0,64 0,009 8730 1110 Heizöl EL... -
Page 94: Fehlerbehandlung
USER MANUAL AMPROplus 16.5. Fehlerbehandlung Fehlerdiagnosen am Messgerät Auswirkung Fehler Ursache Lösung Gerät zeigt Gerät reagiert auf keine ESC und Power-ON keine Reaktion Touchbedienung. Tasten gleichzeitig betätigen Unterkühlung Displayanzeige: z.B. Gerät im Winter im Bei Unterkühlung “Gerät zu kalt” Kofferraum. -
Page 95: Fehlerdiagnosen Kondensatabscheider
USER MANUAL AMPROplus Fehlerdiagnosen Kondensatabscheider 1. Auswirkung 2. Ursache 3. Lösung Schmutz und / oder Schmutzige und / oder Filter öfters Feuchtigkeit im Geräteinnern nasse Feinfilter. überprüfen keine Filterwirkung ggf. austauschen Ausfall der Sensoren (weiß = O.K. Ausfall der Pumpe... -
Page 96: Update Firmware
USER MANUAL AMPROplus 16.6. Update firmware Check current firmware version ► Go to the Extras menu. ► Select Device info. The menu Device info appears. The current firmware version appears. In this example, the firmware version is 3.00.02. -
Page 97: Check New Firmware Version
USER MANUAL AMPROplus ► Select install firmware. ► Press OK. The update is performed. After the update has been performed, a message appears. ►Confirm the message with OK. ► Switch the analyzer off again after the successful update. - Page 98 USER MANUAL AMPROplus ► Go to the Extras menu. ► Select Device info. ► Press OK. The menu Device info appears. The new Firmware version is displayed. ► Repeat the update process if the old firmware version is still displayed.
-
Page 99: Konformitätserklärung
USER MANUAL AMPROplus 17 Konformitätserklärung MRU GmbH, D-74172 Neckarsulm 99 / 100...
