I Copying Memory Contents - Icom IC-R1500 Instruction Manual

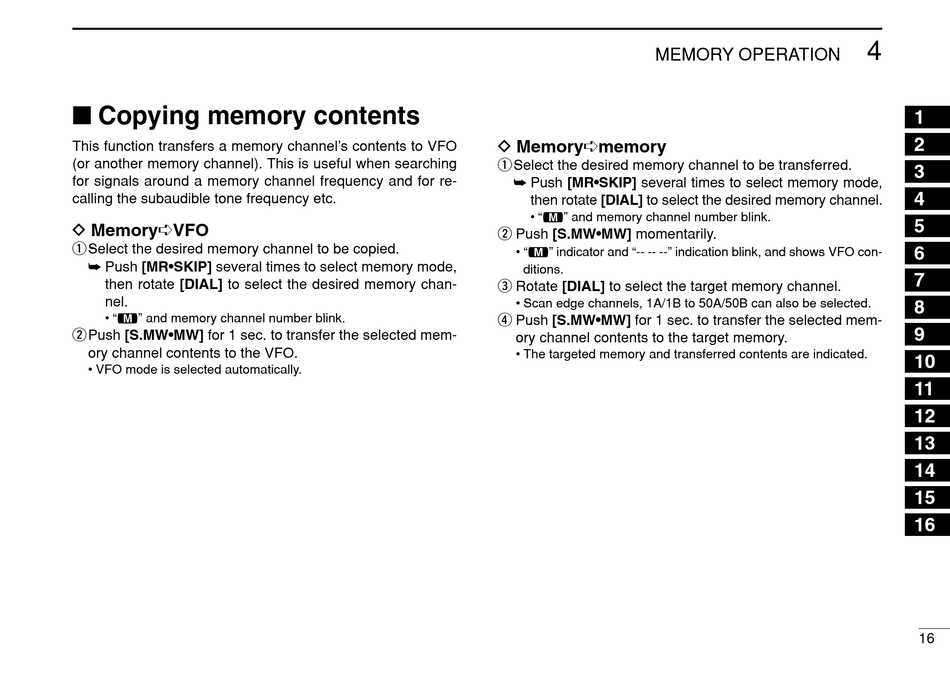

I Copying memory contents

This function transfers a memory channel's contents to VFO
(or another memory channel). This is useful when searching
for signals around a memory channel frequency and for re-
calling the subaudible tone frequency etc.
D Memory➪VFO
q Select the desired memory channel to be copied.
➥ Push [MR•SKIP] several times to select memory mode,
then rotate [DIAL] to select the desired memory chan-
nel.
• "!" and memory channel number blink.
wPush [S.MW•MW] for 1 sec. to transfer the selected mem-
ory channel contents to the VFO.
• VFO mode is selected automatically.
MEMORY OPERATION
D Memory➪memory
q Select the desired memory channel to be transferred.
➥ Push [MR•SKIP] several times to select memory mode,
then rotate [DIAL] to select the desired memory channel.
• "!" and memory channel number blink.
w Push [S.MW•MW] momentarily.
• "!" indicator and "-- -- --" indication blink, and shows VFO con-
ditions.
e Rotate [DIAL] to select the target memory channel.
• Scan edge channels, 1A/1B to 50A/50B can also be selected.
r Push [S.MW•MW] for 1 sec. to transfer the selected mem-
ory channel contents to the target memory.
• The targeted memory and transferred contents are indicated.
