PANEL DESCRIPTION

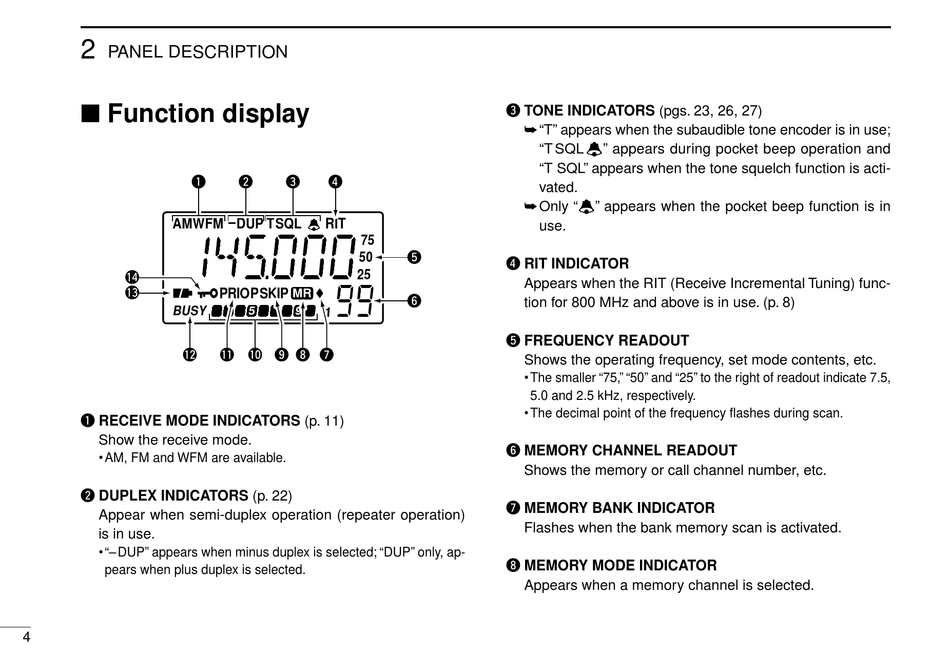

Function display

q
AM FM DUP TSQL W
!4
!3
BUSY
!2
q RECEIVE MODE INDICATORS (p. 11)
Show the receive mode.
• AM, FM and WFM are available.
w DUPLEX INDICATORS (p. 22)
Appear when semi-duplex operation (repeater operation)
is in use.
• "– DUP" appears when minus duplex is selected; "DUP" only, ap-
pears when plus duplex is selected.
4
w e r
RIT
PRIOPSKIP MR
!1 !0 o i u
e TONE INDICATORS (pgs. 23, 26, 27)
"T" appears when the subaudible tone encoder is in use;
"T SQL ë" appears during pocket beep operation and
"T SQL" appears when the tone squelch function is acti-
vated.
Only "ë" appears when the pocket beep function is in
use.
t
r RIT INDICATOR
Appears when the RIT (Receive Incremental Tuning) func-
y
tion for 800 MHz and above is in use. (p. 8)
t FREQUENCY READOUT
Shows the operating frequency, set mode contents, etc.
• The smaller "75," "50" and "25" to the right of readout indicate 7.5,
5.0 and 2.5 kHz, respectively.
• The decimal point of the frequency flashes during scan.
y MEMORY CHANNEL READOUT
Shows the memory or call channel number, etc.
u MEMORY BANK INDICATOR
Flashes when the bank memory scan is activated.
i MEMORY MODE INDICATOR
Appears when a memory channel is selected.
