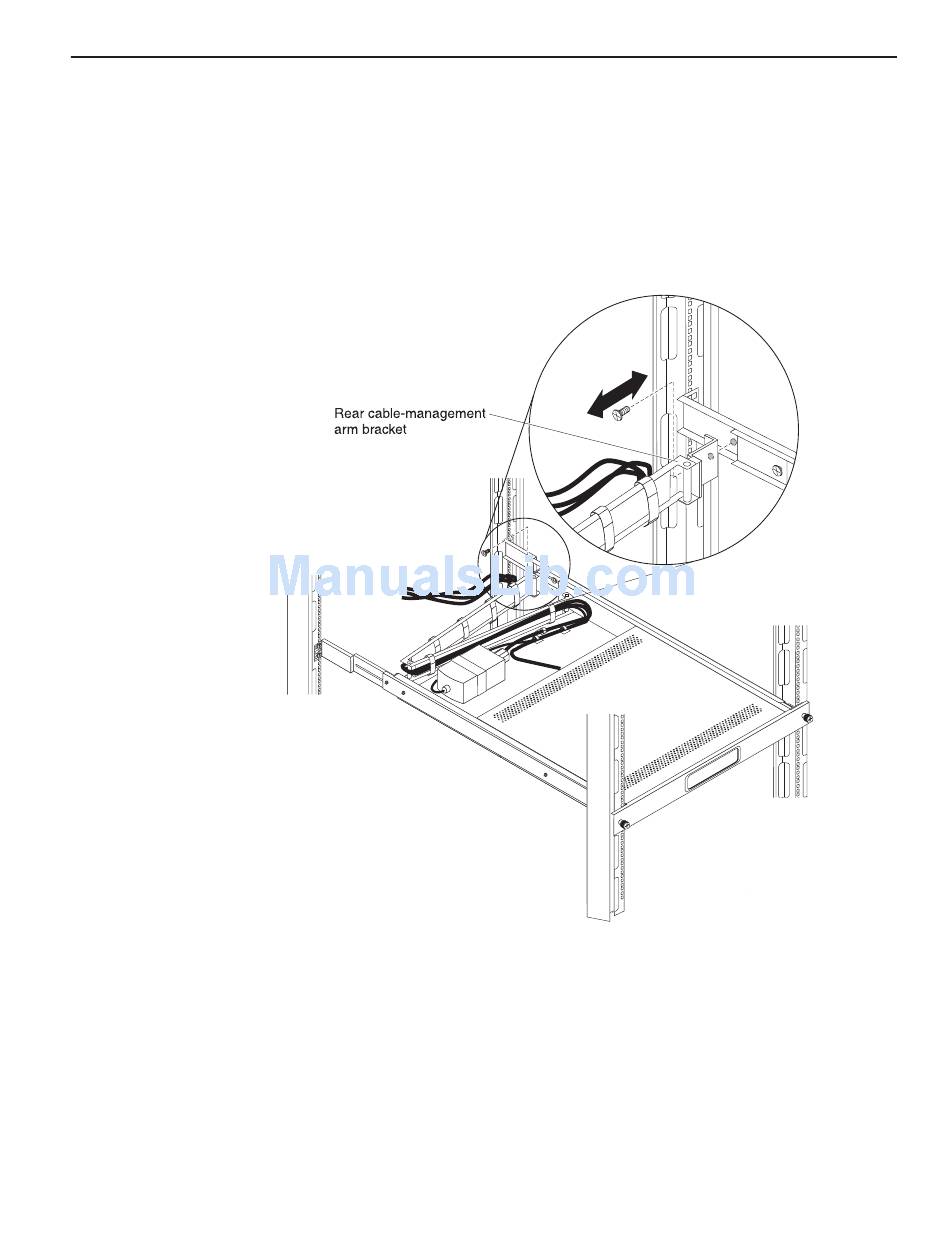

Replacing the cable-management arm

If you installed a console switch in the rear of the rack cabinet, it might be easier to
replace the cable-management arm if you remove the console switch first. To
replace the cable-management arm, complete the following steps:
1. Turn off the display and disconnect the power from the display.
2. Disconnect the keyboard, mouse, and video connectors from the server or
console switch.
3. Remove the screw that attaches the cable-management arm to the outer
slide-rail bracket. Save the screw for use later in the procedure.
4. Fully extend the console unit, and then temporarily remove the
keyboard-and-mouse, video, and power cables from the cable-management
arm.
Chapter 4. Hardware maintenance information
33
