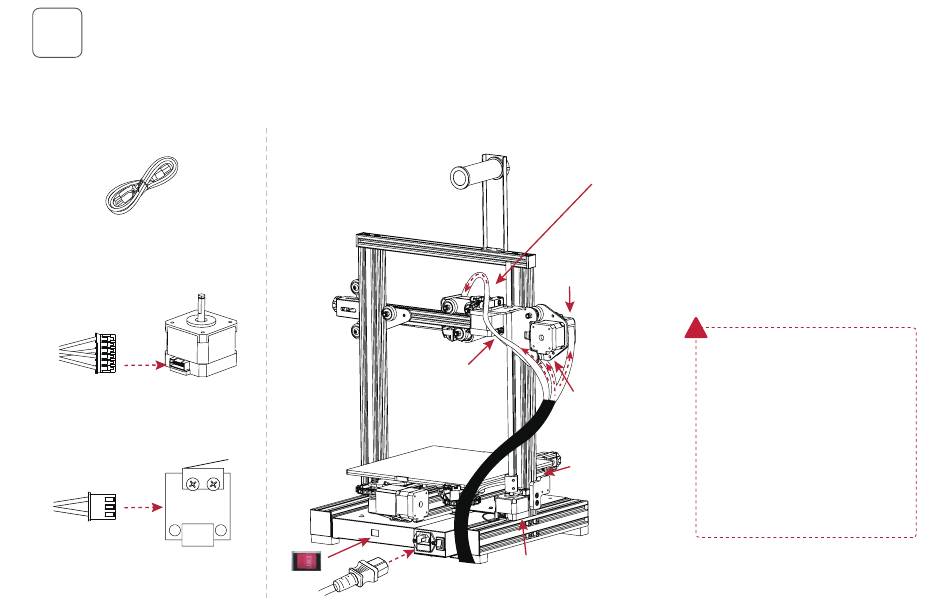

Wire connection
9
Connect X, E, Z-axis stepper motors according to the yellow label on the 6pin (4 wires) port
Connect X, Z-axis limit switches according to the yellow label on the 3pin (2 wires) port
Plug in the power cord (as showed) and toggle the switch to turn on the power
Power cable *1
X、E、Z-axis motor port
X、Z-axis limit switch
Insert the teflon tube into the pneumatic connector
X-axis limit switch
E motor
X motor
Z-axis limit switch
Z motor
16
！
Attention
· Damage might occur if voltage setting
is incorrectly. Make sure the current
input voltage matches to your local
power supply (115/230V).
· Plug in power cord and turn power
switch to 1 to turn it on.
· Do not disconnect the cables when
Aquila is powered on.
