Install synchronous belt, extruder kit and Z-axis passive block
X axis kit
Extruder kit *1
Z-axis passive block *1
Synchronous belt *1
Hexagon socket flat round
head screw M5x14 *1

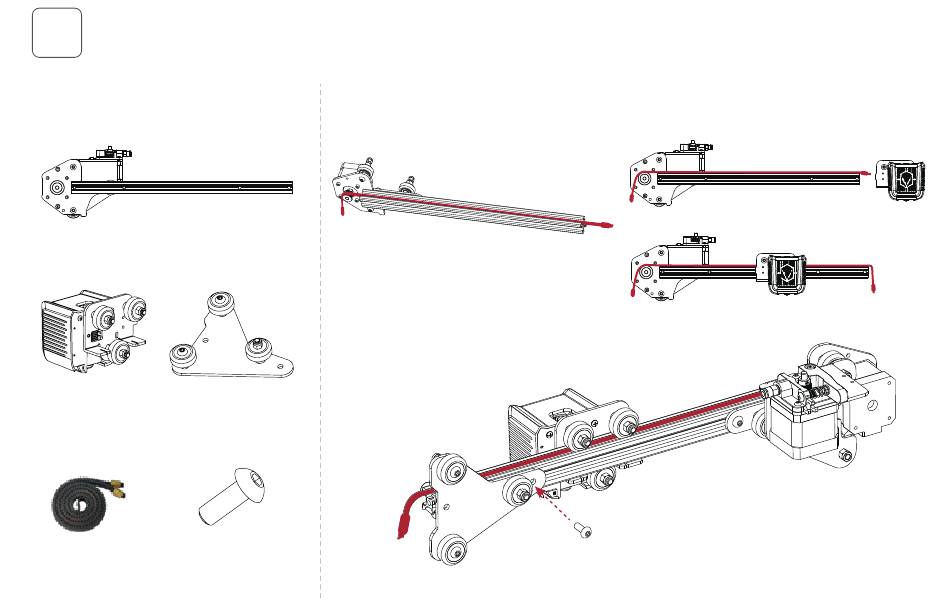

Put the synchronous belt into the profile along the v-wheel of the extruder kit.
(The belt is on the top of the profile and under the v wheel) When pushing it into the middle.
The highlighted red stripe refers to synchronous belt.
Install Z-axis passive block.
