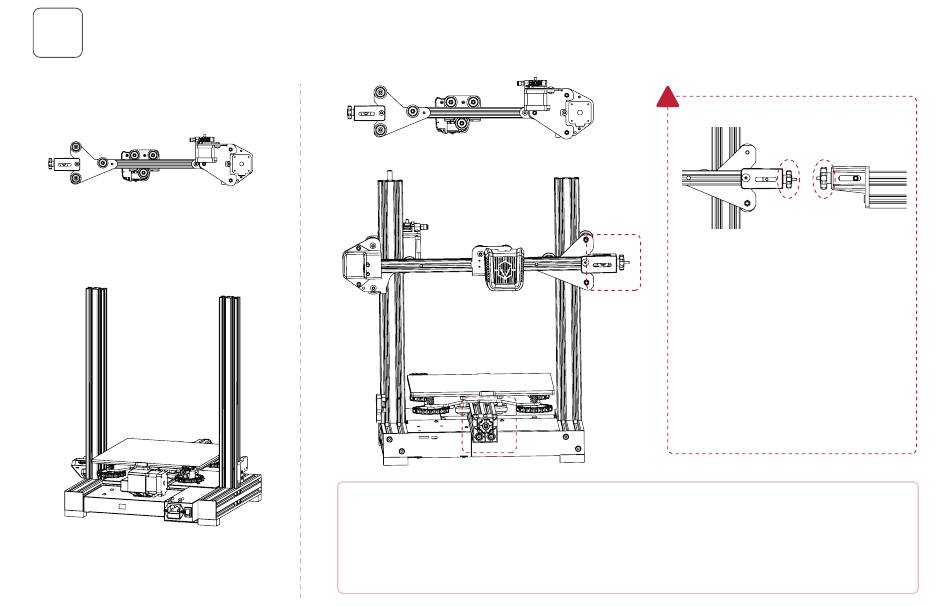

Install the Z-axis moving kit and adjust the tightness of X-axis and Y-axis tensioners
Take the first step: assembled components
Take the second step: assembled components
Back
Front
B
Step：
1. Make the Z-axis kit move along the V-wheel to be inserted into the two ends of the Z-axis profile
(as showed in the figure above).
2. After installation, slide the extruder to see whether the X-axis can be touched and adjust the
synchronous belt to its proper status. Synchronous belt moves smoothly without noise.
13
！
A
Tips: Manually rotate the X-axis and
A
Y-axis tensioners to be the approprate
tightness. Refer to A and B: the
difference between the nut and the
screw (protrusion) is 0-2mm. The
reference standard is to press the
synchronous belt will a little tension.
Too loose or tight belt will affect the
printing effect, and too tight belt will
break.
B
