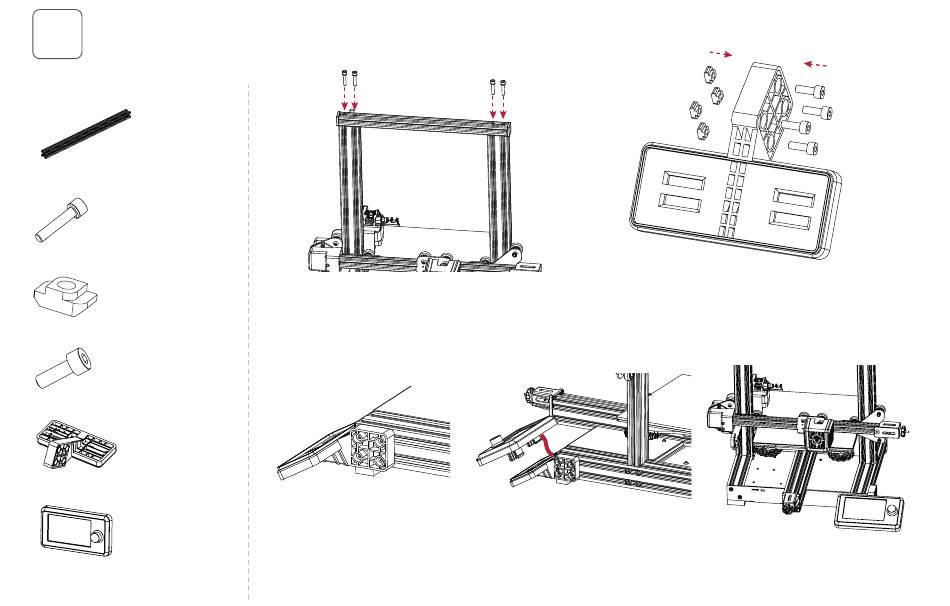

Install the gantry profile, screen kit
Gantry profile *1
Hexagon socket head spring
washer combination screw
M5x25 *4
M4 T nuts *6
Hexagon socket head spring
washer combination screw
M4x12 *4
Screen bracket *1
Screen kit *1
M5x25
1. Fix the profile on the upper end of the gantry with four
hexagon sock head cap screws M5x25.
3.
Use the hexagon wrench to lock the
four screws on the left side of the
screen bracket with the machine.
M4 T nuts
2. Tighten lightly the M4 T-nut and the M4-12 screw
in turn by hexagon wrench, for a total of 4 sets.
4.
Connect the display screen kit with
screen cable.Buckle the screen kit
directly into the screen bracket.
14
M4x12
