Install X-axis Tensioner
X-axis tensioner *1
X-axis limit switch kit *1
Hexagon socket flat round
head screw M5x14 *2
Hexagon socket head spring
washer combination screw
M4x8 *2

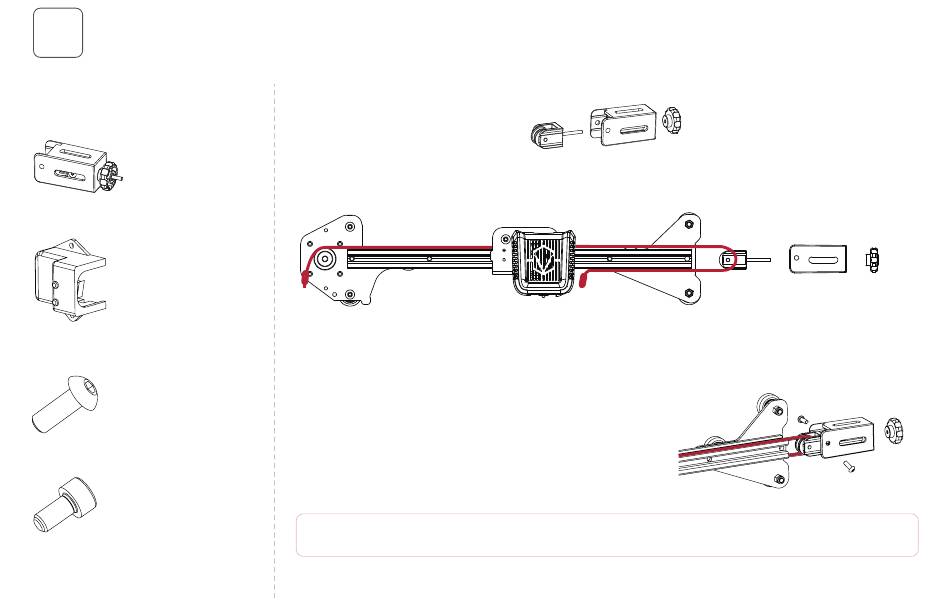

1. Disassemble the X-axis tensioner.
2. Insert the synchronous belt into the tensioner block, and put it into the X-axis tensioner together with the
synchronous belt.
3. Tighten it with a plastic hand screw nut, lock Z-axis passive
block with ①M5x14 screw first, and then lock the ②M5x14 screw.
Attention: During the current operation, please do not tighten the X-axis tensioner screws with too much force.
11
①M5x14
②M5x14
