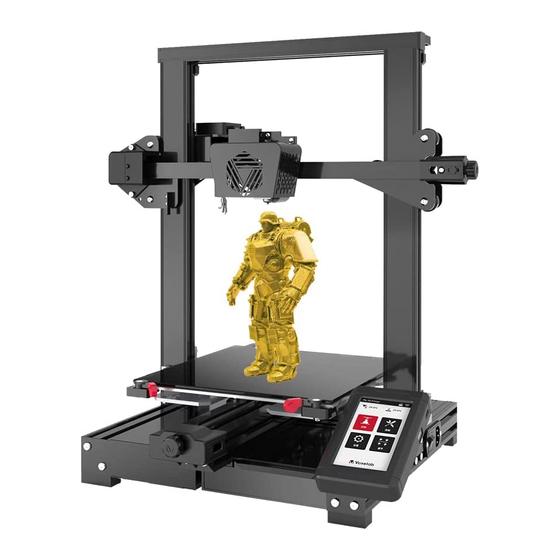

Voxelab Aquila Pro User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
3D Printer User Manual
3D打印机使用说明书
Aquila Pro
Note: Each printer is tested before leaving factory. It is normal if there are some
residues in extruder or some tiny scratches on the build plate. It won't affect the
printing quality.
注：每台 3D 打印机在出厂前都经过打印测试，若设备喷头内存在耗材残留或打印平台有
轻微划痕，都属正常现象，不影响使用。
V1.3.2-20210926

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aquila Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Voxelab Aquila Pro

Summary of Contents for Voxelab Aquila Pro

  • Page 1 3D Printer User Manual 3D打印机使用说明书 Aquila Pro Note: Each printer is tested before leaving factory. It is normal if there are some residues in extruder or some tiny scratches on the build plate. It won’t affect the printing quality. 注：每台 3D 打印机在出厂前都经过打印测试，若设备喷头内存在耗材残留或打印平台有...
  • Page 3 Thank you for choosing Voxelab products. For your convenience, please read the manual carefully before using it. Operate the printer accordingly. 使用须知 Voxelab team is always at your service; contact us at any time if you need Product Introduction any assistance.
  • Page 4 Notes 使用须知 Do not make any modifications to the printer. To avoid personal injury or property damage please ensure your operation followed by the Guide. Dress properly. Do not wear loose clothing or jewelry. Keeping your hair, clothing and gloves away from moving parts. Do not directly touch the nozzle and build plate to avoid high-temperature burn.
  • Page 5 Product Introduction 18 19 Voltage regulator 电压调节档 XE-axis assembly XE轴组件 Material rack and spool holder 料架及料管筒 Y-axis limit sensor Y轴限位传感器 X-axis limit sensor X轴限位传感器 X-axis right fixed block X轴右固定块 Y-axis motor Y轴电机 Print platform 打印平台 X-axis tensioner X轴张紧器 E-axis motor E轴电机...
  • Page 6 Equipment Parameters 设备参数 Model | 型号 Voxelab Aquila Pro Print volume | 成型尺寸 235*235*250 mm Forming technology | 成型技术 Extruder quantity | 喷头数量 Layer thickness | 层厚 0.1 mm - 0.4 mm Nozzle diameter | 喷嘴直径 Standard | 标配 0.4 mm Print precision | 精度...
  • Page 7 Spare Parts 零部件清单 Printer base *1 Gantry Frame *1 Screen *1 龙门架*1 显示屏*1 底座组件*1 Material pipe and Filament *1 Material rack *1 Nozzle *1 nut *1 耗材*1 料架*1 喷嘴*1 料架筒及料架螺母*1 Remove tool *1 Needle *1 USB flash disk*1 Power cable *1 金属铲刀*1 通针*1 U盘*1...
  • Page 8 Install the gantry frame Installation video can be found on Voxelab Youtube channel 安装龙门架 Printer base *1 底座组件*1 Gantry Frame *1 龙门架*1 M5x45 Hexagon socket head spring washer combination screws M5x45 *4 内六角圆柱头弹垫组合螺钉 M5x45 *4 Step: First lift the X-axis assembly up at least 15 cm to the position as shown, then use four M5x45 screws to fix gantry frame with the base.
  • Page 9 Install the screen 安装显示屏 Hexagon socket button head screws M5x8 *2 内六角平圆头螺钉M5x8 *2 Pass the display cable through the cable fixed buckle firstly, then connect it to the screen. Finally install the screen onto printer base side with two M5x8 screws (as shown). 请先将显示屏线穿过固线扣，与屏幕连接好后，...
  • Page 10 Install spool holder 安装料架 M4x6 Material rack *1 Install it on the right 料架 *1 靠设备顶部右侧安装 M4 T nut Material pipe and nut *1 料架筒及料架螺母 *1 M4 T型螺母 Connect the filament tube Hexagon socket button 连接导丝管 head screws M4x6 *2 内六角平圆头螺钉M4x6 *2 M4 T nuts *2 M4 T型螺母...
  • Page 11 Adjust the synchronous belt 调节同步带 ！ Tips: Manually rotate the X-axis and Y-axis tensioners to the appropriate tightness. Reference standard: Press the synchronous belt Front to feel its tension. It is best when the belt is 正面 neither too loose nor too tense. Belt being too loose or too tight both affect the printing effect, and being too tight may cause belt break.
  • Page 12 Wire connection 设备接线 1. Connect the yellow-labeled cables with "Z1" and "Z2" on 6 pin(4 wires) ports to Z-axis motors; 将6针（4线）端口上带有黄色标签丝印“Z1”，“Z2” 的线分别与左右两个Z轴电机连接； 2. Connect the port of black cable to Z-axis limit sensor; 黑色线端口与Z轴限位传感器端口对插； 3. Insert the XE-axis assembly zcable; 插上XE轴组件转接排线；...
  • Page 13 Level Leveling operation video can be found on Voxelab Youtube channel 调平 请浏览优酷“Voxelab3d打印”自频道，查看最新调平视频。 Check the steadiness of the build plate before leveling. If the build plate is unsteady, please use an open-end wrench to adjust the V-wheel to steady it.
  • Page 14 Level 调平 1. Move the nozzle to the top of the leveling nut. Screw the nut and adjust the distance between the nozzle and the printing platform to about 0.1 mm (Thickness of a piece of A4 paper). 2. We can use a piece of A4 paper to assist in leveling, so that the nozzle only scratches on the A4 paper. Adjust the four leveling nuts in turn until you feel slight resistance from the nozzle when pulling the A4 paper.
  • Page 15 Z-axis calibration Note: The UI information is only for reference, the actual UI may be different. Z轴校准 注意：界面仅供参考，实际以UI为准。 Tap【Level】-【Z Calibration】, the leveling sensor starts to test the build plate one by one. When it finished, the Z-axis calibration is done. 依次点击【调平】-【Z轴校...
  • Page 16 Preheat Note: The UI information is only for 预热 reference, the actual UI may be different. 注意：界面仅供参考，实际以UI为准。 Note: If you need to adjust temperature for some reasons, please tap [Settings] - [Temperature] - [PLA/ABS preheat setting] to adjust parameter. 注意：若因打印材料或其他原因需要调整温度，可以在界面首页 【设置】- 【温度】-【PLA/ABS预热设置】调整参数。...
  • Page 17 Note: The UI information is only for reference, the actual UI may be different. Load the filament 注意：界面仅供参考，实际以UI为准。 装料 1. When waiting for preheating, please hang the filament on the material rack. 在等待温度上升时，将耗材挂在料架上。 2. Press the handle to let filament pass through. 按压送丝机构处的把手，将丝料穿过送丝机构。...
  • Page 18 Note: The UI information is only for reference, the actual UI may be different. 注意：界面仅供参考，实际以UI为准。 The methods of replacing filament: 1. Tap [Unload], waiting for the filament unload completed, pull filament out from the feeding assembly; repeat the load process. 2.
  • Page 19 Start printing 首次打印 1. Ensure that the build plate has been leveled before printing. 2. Ensure that the filament has been loaded in an appropriate approach. 3. Please clean extruder before printing (Load the filament for a while to extrude all the melted filament printed last time). 4.
  • Page 20 Print Note: The UI information is only for reference, the actual UI may be different. 打印 注意：界面仅供参考，实际以UI为准。...
  • Page 21 Wi-Fi connection Note: The UI information is Wi-Fi连接 only for reference, the actual UI may be different. 注意：界面仅供参考，实际以 UI为准。 Tap [Settings] - [Wi-Fi], open the Wi-Fi function, choose the Internet and save the password. 依次点击【设置】-【Wi-Fi】， 打开WIFI功能，选择一组Wi-Fi， 并输入密码，连接Wi-Fi。...
  • Page 22 Connect printer by Wi-Fi Wi-Fi连接电脑 1. After Wi-Fi connected successfully, tap [Info] and check the IP address. 2. Open VoxelMaker, click [Print] - [Connect Machine], 192.168.2.192:8899 input the Printer IP address and click [Connect]. There is a connect icon when it connected successfully.
  • Page 23 Firmware upgrade 固件更新 Get the firmware files: Enter the official website <www.voxelab3dp.com> and download them at <Download Center>. 固件下载：请联系售后邮箱 support@voxelab3dp.com 售后电话：0579-82238189 Method 1: 1. Copy the firmware into the blank U disk. 2. Plug in the U disk into the USB port of printer and reboot the printer, waiting for the upgrade process finished. 3.
  • Page 24 Note: The UI information is only for reference, the actual UI may be different. 注意：界面仅供参考，实际以UI为准。...
  • Page 25 Mainboard Information Y-axis motor and 主板信息 Z-axis motor port limit sensor port Z轴电机 Y轴电机及限位传感器 Motor switch port 电机转接排线 Debug port 调试接口 Nozzle wire port 喷头排线 Screen port 显示器接口 Power port Reserved port 电源 预留接口 Z-axis limit Platform temperature The back PCB cooling Fuse Hotbed wire port...
  • Page 26 Printing Notice ！ 打印注意事项 The adhesion of glass build plate may decrease after long time using. Please apply proper amount of glue to keep and improve the adhesion. Warping issues may occur when print ABS filament in cold environment, you may use glue to enhance the adhesion. It's not recommended to print ABS filament at extremely low temperature environment, as print will fail when printed model getting away from the build plate.
  • Page 27 Trouble Shooting 故障检修 Q： What if the model warps or is unable to stick to the build plate? Q： What if the nozzle cannot be heated? 喷嘴不加热。 打印模型起翘，粘不住打印平台怎么办？ A： 1. Please check the temperature on display screen; if the temperature is A：...
  • Page 28 Trouble Shooting 故障检修 Q： Printer gets broken at the time of turning it on? Q：Unable to resume printing from power failure? 机器通电就烧坏了。 断电续打功能不能使用。 A： It might be caused by dialing to the wrong voltage. Please check whether A：It might be caused by different usb flash disk. Make sure you are using the the voltage is dialed correctly.
  • Page 29 售后服务登记表 Please fill in this form carefully, cut out this form and mail it back to Voxelab together with the printer, or download this form from www.voxelab3dp.com, fill in this form and mail it to support@voxelab3dp.com. After-sales service shall not be provided without this form.
  • Page 30 Voxelab grants all end-users a 12-month limited warranty for all Voxelab 3D printers (except the Voxelab extruder) and a 3-month warranty for Voxelab FFF Extruder. If Voxelab 3D printer fails during normal and proper use within the warranty period (judged by Voxelab engineers), Voxelab will provide users with free maintenance services or remote after-sales support.
  • Page 31 售后服务卡 <SAC20200804> Voxelab采用谁销售谁服务的原则，如您的3D打印机是在非Voxelab官方平台购买，请向您购买的商家获取相关支持。 1. Voxelab所有3D打印机均为用户提供12个月整机有限质保。其中FFF技术3D打印机的喷头质保时间为3个月。 2. 质保期内若设备出现非人为损坏（由Voxelab工程师评定），您将获得免费配件及售后技术支持。 3. 售后服务周期以产品出厂日期为起始。如能提供清晰的发票，则以发票开具日期为起始。 4. 维修零配件可能为非全新配件，但甲方保证配件功能完全正常。维修配件质保时间与其整机质保时间相同。 以下配件不列入质保范围 以下情况不在质保范围内 · 无法提供有效质保卡或序列号（遗失、涂改、模糊无法确认）； 平台贴纸 打印平台 · 整机及部件已经超过质保有效期； 平台金属板 金属铲刀 · 设备曾经在未经Voxelab授权的维修店维修； 平台玻璃 内六角扳手 · 设备在非产品规定的工作环境下使用而造成的设备故障或损坏； U盘、TF卡及读卡器 开口扳手 · 设备正常磨损、老化或因操作造成的外观划痕或瑕疵； USB线 工具配件 · 由于使用非Voxelab指定的软件而造成的设备故障或损坏； 打印耗材 丝盘轴 · 由于使用其它品牌部件造成的设备故障或损坏； · 由于私自对设备进行改装而造成的设备故障或损坏；...
  • Page 32 Physical objects and final images might be distinct from the user manual due to differences between printer models. Voxelab reserves final explanation rights. 因每款机型不同，实物可能有所差异，请以实物为准。本说明书最终解释归浙江闪铸三维科技有限公司所有。 Official Website 天猫旗舰店 优酷自频道 Official Website: www.voxelab3dp.com E-mail: support@voxelab3dp.com Address: Xianyuan Road NO.518, Wucheng District, Jinhua, Zhejiang, China.
