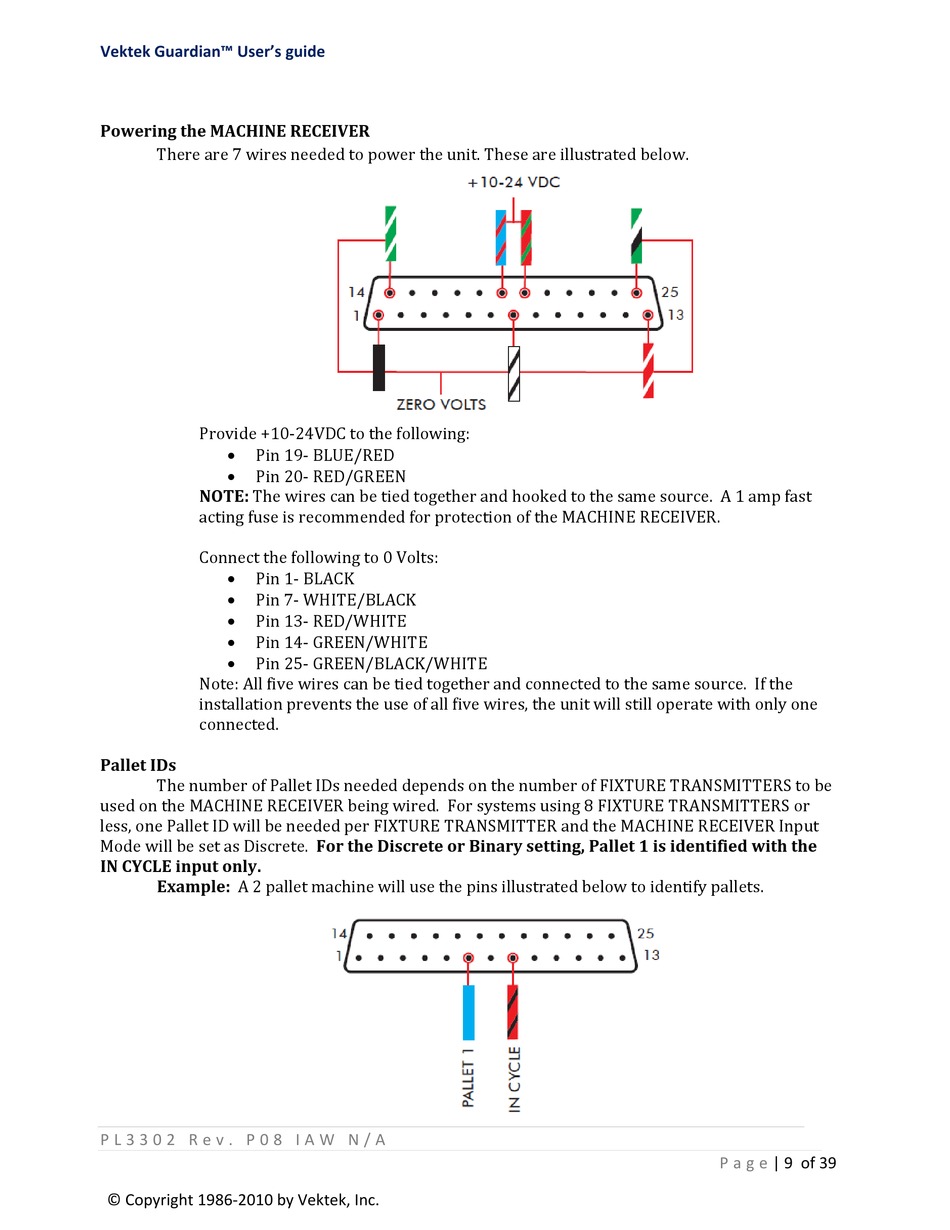

Powering the MACHINE RECEIVER
There are 7 wires needed to power the unit. These are illustrated below.
Provide +10‐24VDC to the following:

Pin 19‐ BLUE/RED

Pin 20‐ RED/GREEN
NOTE: The wires can be tied together and hooked to the same source. A 1 amp fast
acting fuse is recommended for protection of the MACHINE RECEIVER.
Connect the following to 0 Volts:

Pin 1‐ BLACK

Pin 7‐ WHITE/BLACK

Pin 13‐ RED/WHITE

Pin 14‐ GREEN/WHITE

Pin 25‐ GREEN/BLACK/WHITE
Note: All five wires can be tied together and connected to the same source. If the
installation prevents the use of all five wires, the unit will still operate with only one
connected.
Pallet IDs
The number of Pallet IDs needed depends on the number of FIXTURE TRANSMITTERS to be
used on the MACHINE RECEIVER being wired. For systems using 8 FIXTURE TRANSMITTERS or
less, one Pallet ID will be needed per FIXTURE TRANSMITTER and the MACHINE RECEIVER Input
Mode will be set as Discrete. For the Discrete or Binary setting, Pallet 1 is identified with the
IN CYCLE input only.
Example: A 2 pallet machine will use the pins illustrated below to identify pallets.
