Vektek Guardian™ User's guide
Step 2: Connect the cable to the Receiver via the Female DB25 connector. Route the cable to
machine tool controls electrical enclosure. Find a entrance to the enclosure and determine
the longest run cable needed. Cut the cable to length, and discard excess cable. Remove
cable outer insulation as needed.
Step 3: Unplug the MACHINE RECEIVER before continuing.
Step 4: See the Basic MACHINE RECEIVER Wiring below to complete installation.
Read and understand this section fully before attempting to wire the Guardian™ MACHINE
RECEIVER. If any of the wiring information remains unclear after reading this section,
please contact Vektek at 1­800­992­0236
Basic MACHINE RECIEVER Wiring
This section will cover the basic information needed to hook up the MACHINE RECEIVER. Below is
the wiring chart for the MACHINE RECEIVER.
P L 3 3 0 2 R e v . P 0 8 I A W N / A
© Copyright 1986‐2010 by Vektek, Inc.

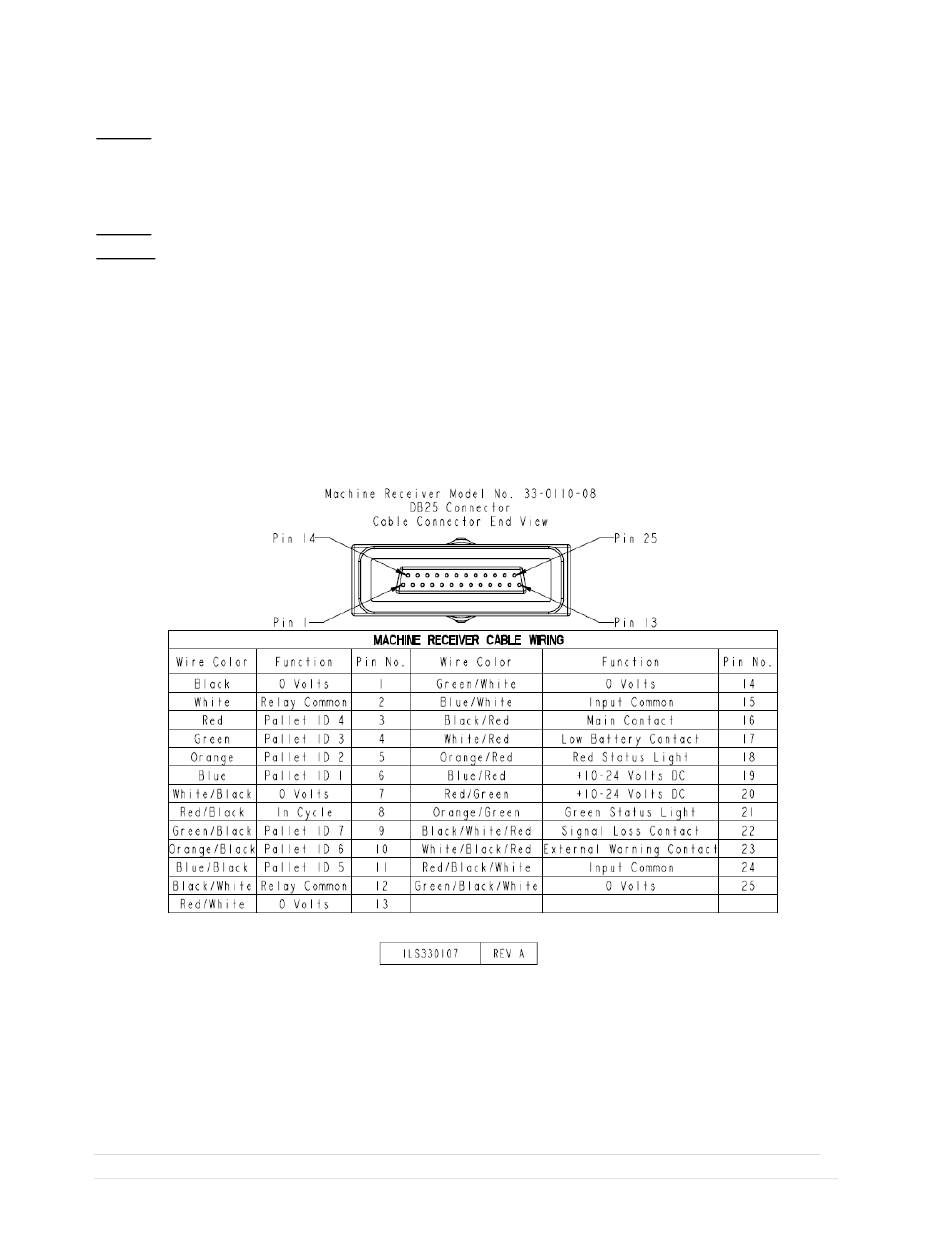

Figure 3: MACHINE RECEIVER Wiring
P a g e | 8 of 39
