Admin Menu
Press and hold ENTER while at the Main Screen to enter the ADMIN menu. The Settings and
Diagnostics sub menus are both password protected to prevent unauthorized access. To access
the Settings and Diagnostics menus, the default password is 1234. If this password is an
issue, please contact Vektek, Inc for assistance at 1­800­992­0236. Please have MACHINE
RECEIVER version and ID number available for technical support. The Admin Menu options
are described below.
Add Pallet
The Add Pallet option will put the MACHINE RECEIVER into pairing mode. It will
remain in pairing mode until a new FIXTURE TRANSMITTER is paired or the function is
cancelled by pressing BACK.
To Pair a new FIXTURE TRANSMITTER:
1. Press and hold ENTER to access the Admin Menu.
2. Press ENTER to select Add Pallet
3. Pass the pairing tool or other available magnet over the Guardian™ logo on the
FIXTURE TRANSMITTER.
o NOTE: The unit may require 2 passes with the magnet to pair, one will turn
on the FIXTURE TRANSMITTER; wait 5 seconds, and the next will begin the
pairing process.
4. The red and blue LEDS on the FIXTURE TRANSMITTER should flash momentarily
(up to 30 seconds depending on the MACHINE RECEIVER channel).
5. Once pairing is complete, the MACHINE RECEIVER will flash the screen below and
return to idle operation.
P L 3 3 0 2 R e v . P 0 8 I A W N / A
© Copyright 1986‐2010 by Vektek, Inc.

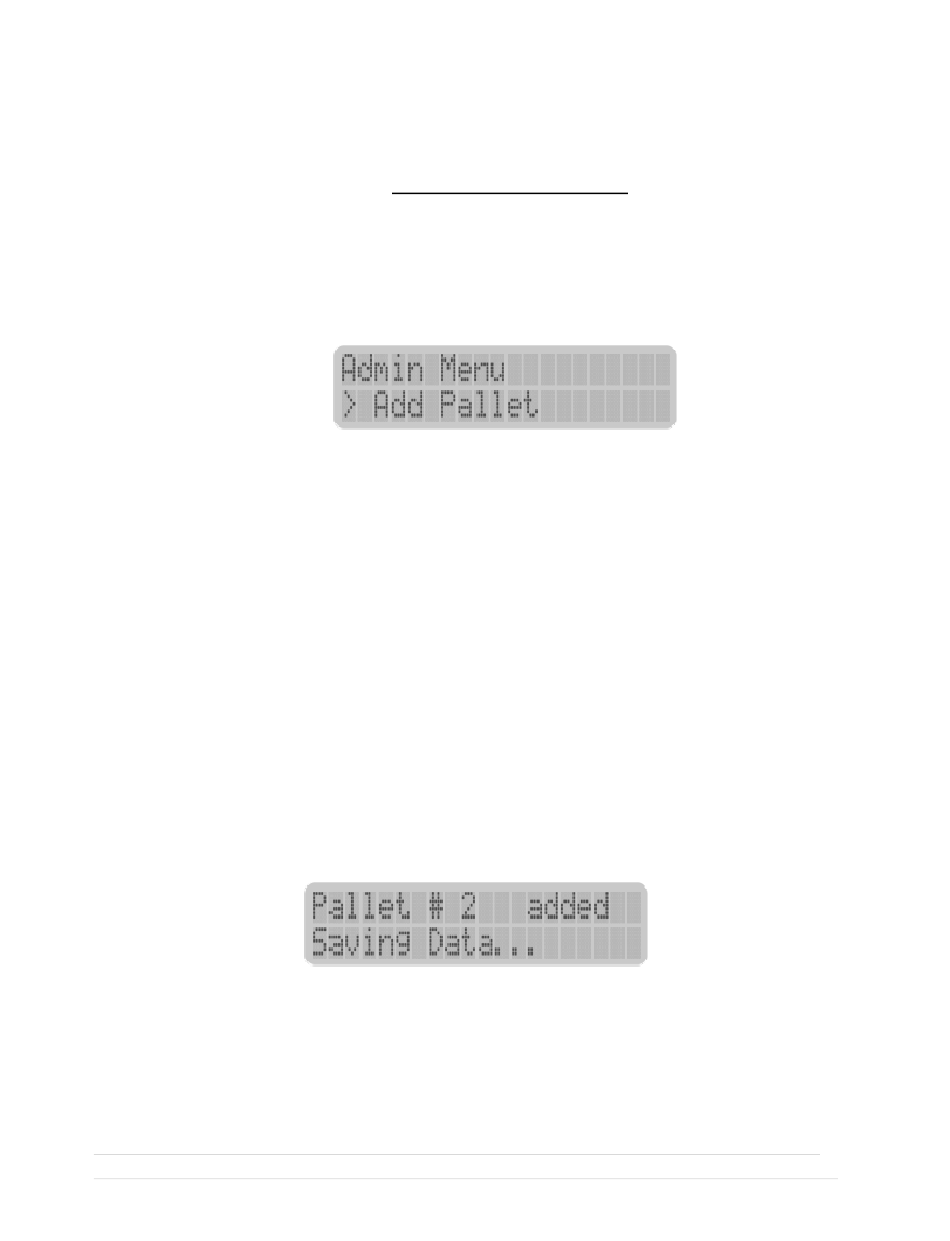

Figure 18: Add Pallet Screen
Figure 19: Pallet Added
