Vektek Guardian™ User's guide
7. Signal Strength
8. Link Quality

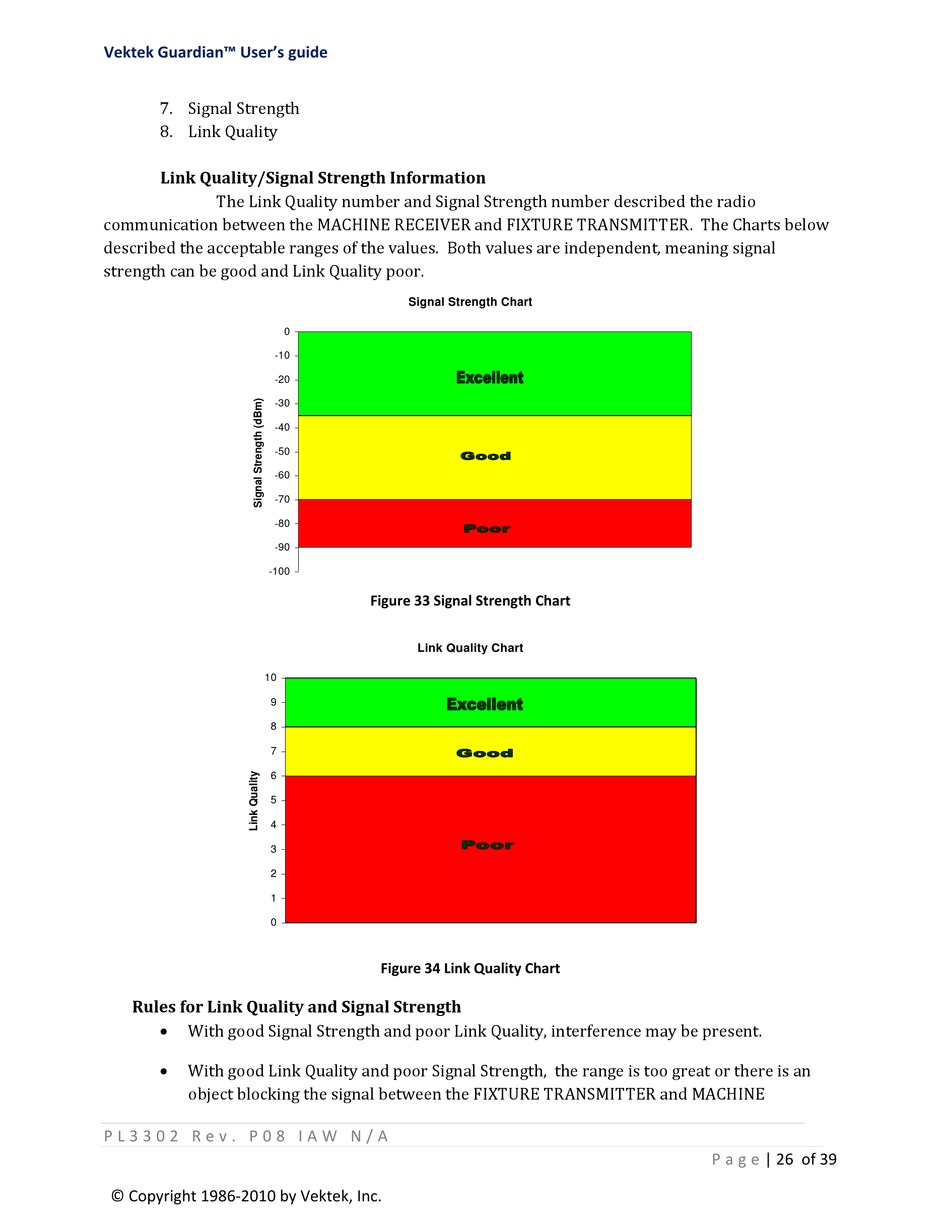

Link Quality/Signal Strength Information
The Link Quality number and Signal Strength number described the radio
communication between the MACHINE RECEIVER and FIXTURE TRANSMITTER. The Charts below
described the acceptable ranges of the values. Both values are independent, meaning signal
strength can be good and Link Quality poor.
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100
10
9
8
7
6
5
4
3
2
1
0
Rules for Link Quality and Signal Strength

With good Signal Strength and poor Link Quality, interference may be present.

With good Link Quality and poor Signal Strength, the range is too great or there is an
object blocking the signal between the FIXTURE TRANSMITTER and MACHINE
P L 3 3 0 2 R e v . P 0 8 I A W N / A
© Copyright 1986‐2010 by Vektek, Inc.
Signal Strength Chart
0
Figure 33 Signal Strength Chart
Link Quality Chart
Figure 34 Link Quality Chart
P a g e | 26 of 39
