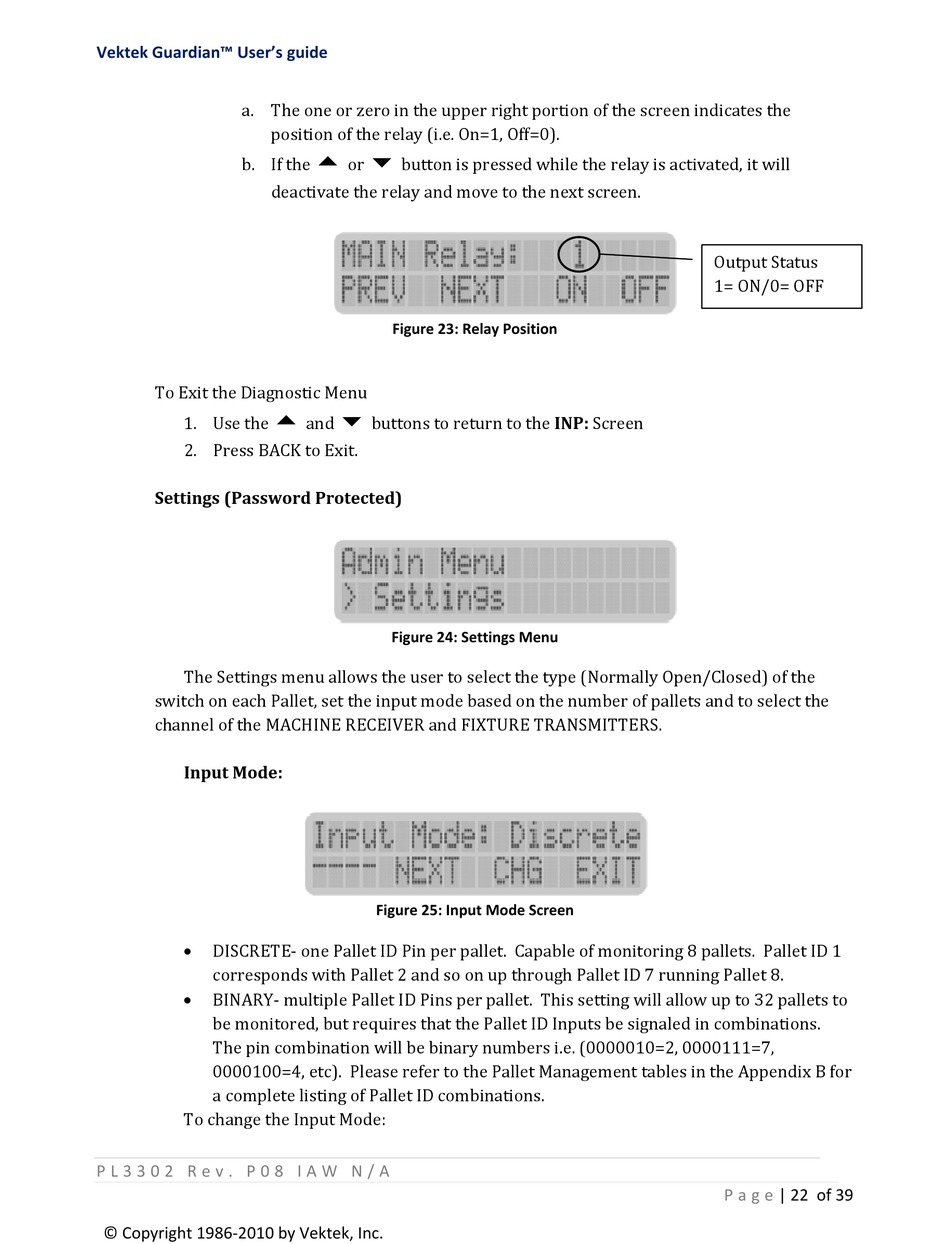

Settings (Password Protected); Figure 23: Relay Position; Figure 24: Settings Menu; Figure 25: Input Mode Screen - Vektek Guardian User Manual

Vektek Guardian™ User's guide
a. The one or zero in the upper right portion of the screen indicates the
position of the relay (i.e. On=1, Off=0).
b. If the
deactivate the relay and move to the next screen.
To Exit the Diagnostic Menu

1. Use the
2. Press BACK to Exit.
Settings (Password Protected)
The Settings menu allows the user to select the type (Normally Open/Closed) of the
switch on each Pallet, set the input mode based on the number of pallets and to select the
channel of the MACHINE RECEIVER and FIXTURE TRANSMITTERS.
Input Mode:

DISCRETE‐ one Pallet ID Pin per pallet. Capable of monitoring 8 pallets. Pallet ID 1
corresponds with Pallet 2 and so on up through Pallet ID 7 running Pallet 8.

BINARY‐ multiple Pallet ID Pins per pallet. This setting will allow up to 32 pallets to
be monitored, but requires that the Pallet ID Inputs be signaled in combinations.
The pin combination will be binary numbers i.e. (0000010=2, 0000111=7,
0000100=4, etc). Please refer to the Pallet Management tables in the Appendix B for
a complete listing of Pallet ID combinations.
To change the Input Mode:
P L 3 3 0 2 R e v . P 0 8 I A W N / A
© Copyright 1986‐2010 by Vektek, Inc.
 
or button is pressed while the relay is activated, it will
Figure 23: Relay Position

and buttons to return to the INP: Screen
Figure 24: Settings Menu
Figure 25: Input Mode Screen
Output Status
1= ON/0= OFF
