Vektek Guardian™ User's guide
FIXTURE TRANSMITTER M8 Wiring Description
The FIXTURE TRANSMITTER is designed to plug directly into Vektek pressure switch P/N S7‐
7500‐00. If an alternate switch is to be used, the chart below provides a description of the pins on
the FIXTURE TRANSMITTER. The FIXTURE TRANSMITTER cannot provide any power for
inductive proximity switches or pressure transducers. Only non­powered switches can be used
with the Guardian system. Please consult Vektek Inc. (1­800­992­0236) for any additional
switch concerns. Please have MACHINE RECEIVER version and ID number available for
technical support.
Signal Logic
Additional Logic Information
The Pallet ID inputs can be asserted at the same time or before the IN CYCLE input;
however, if the Pallet ID is asserted before the IN CYCLE, it must remain on until the IN CYCLE input
P L 3 3 0 2 R e v . P 0 8 I A W N / A
© Copyright 1986‐2010 by Vektek, Inc.

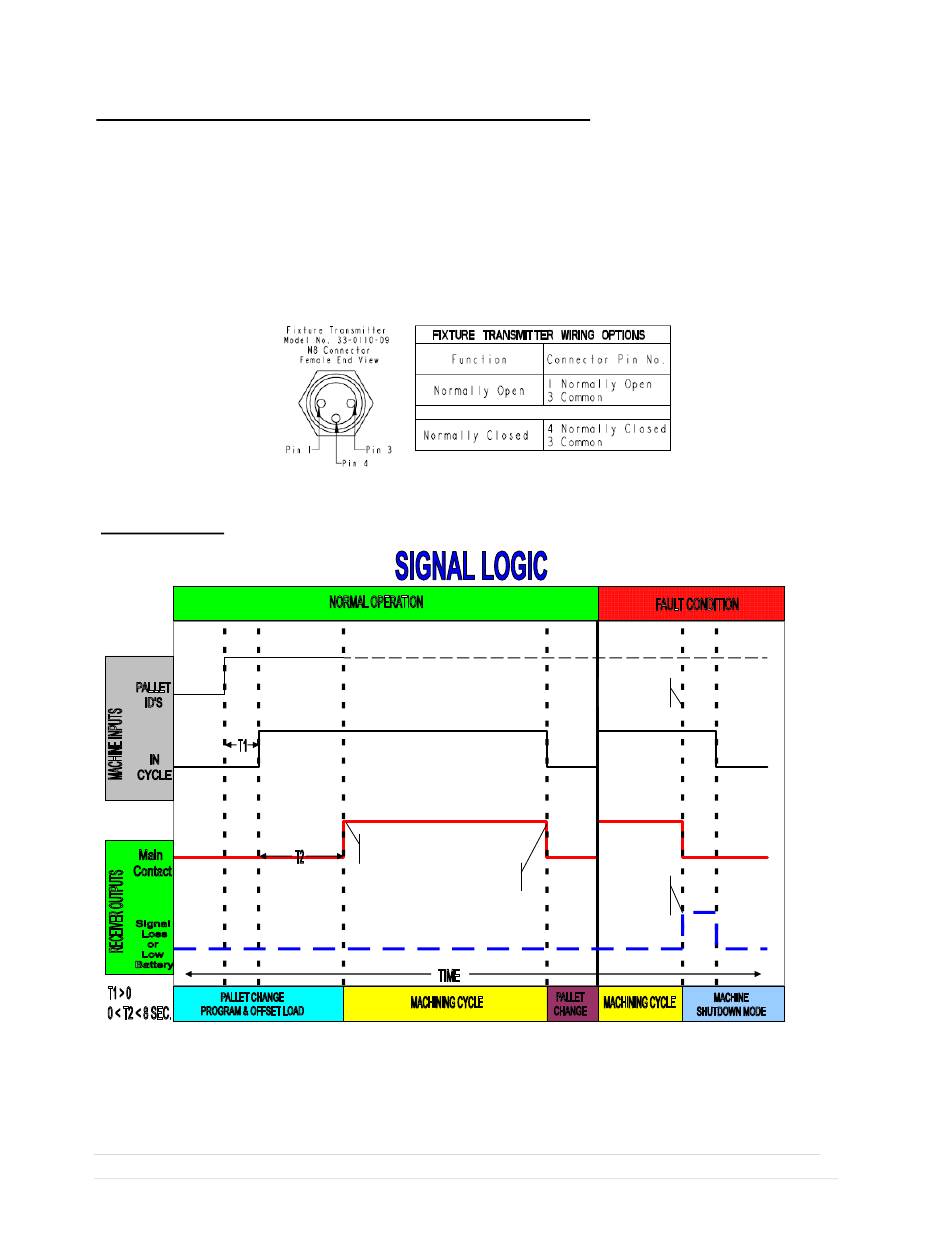

Figure 37: FIXTURE TRANSMITTER Wiring
MONITORING
STARTS
MONITORING
STOPS
Figure 38: Signal Logic Chart
FAULT
DETECTED
IF FAULT
CONDITION
EXISITS
P a g e | 29 of 39
