To reset FIXTURE TRANSMITTER:
WARNING: This resets the FIXTURE TRANSMITTER removing all pairings. Once the reset is
complete the FIXTURE TRANSMITTER will need paired to all associated MACHINE
RECEIVERs.
1. Hold the pairing tool or other available magnet over Guardian logo for 15 seconds or
until LEDS shut off.
2. Remove magnet immediately
3. Short pins 1 & 3 of the M8 connector on the FIXTURE TRANSMITTER after the LEDS re‐
illuminate.
a. If pins 1&3 are not shorted while the LEDS are illuminated, the process will have
to be repeated.
4. Once complete, the LEDS will remain dark.

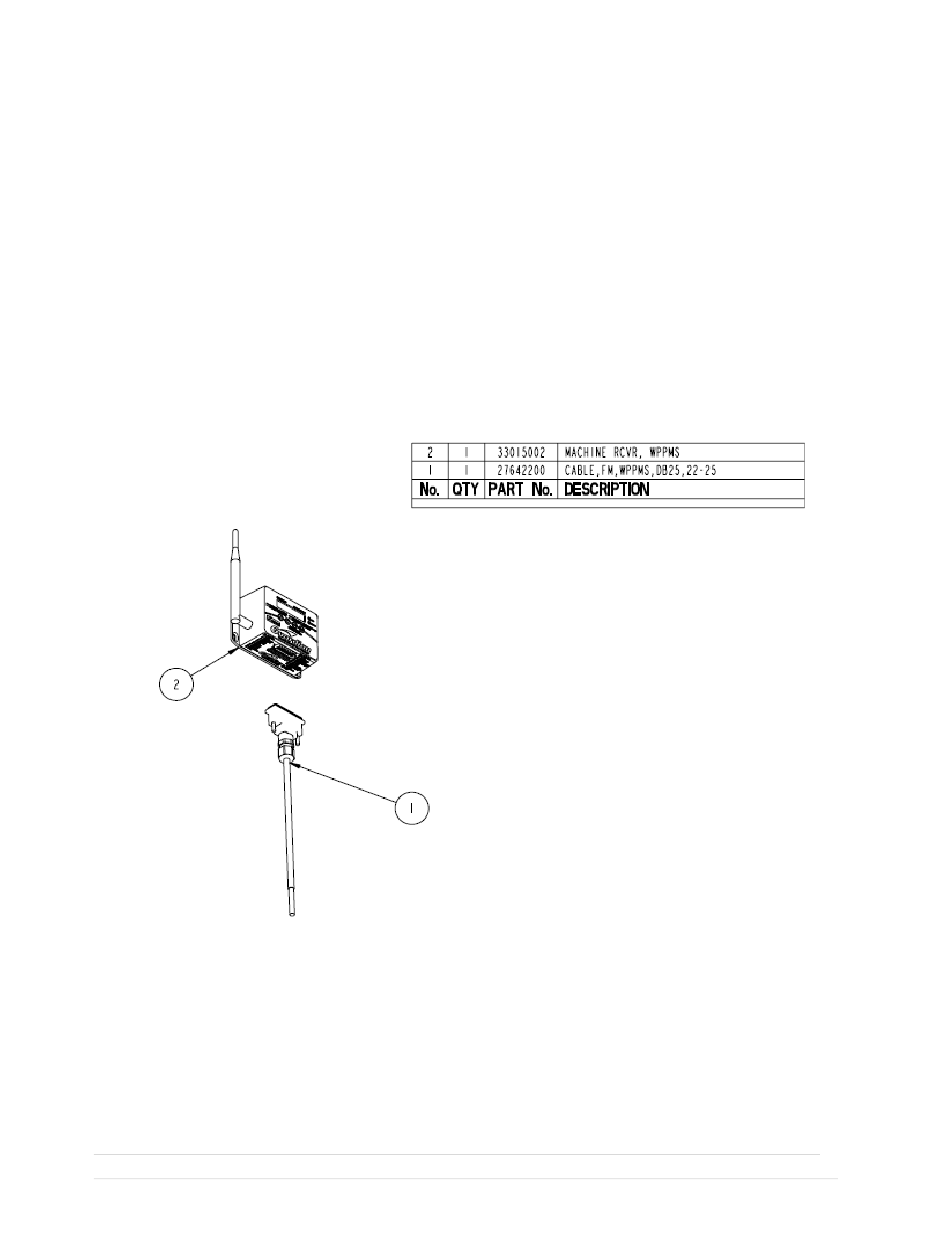

MACHINE RECEIVER Parts
