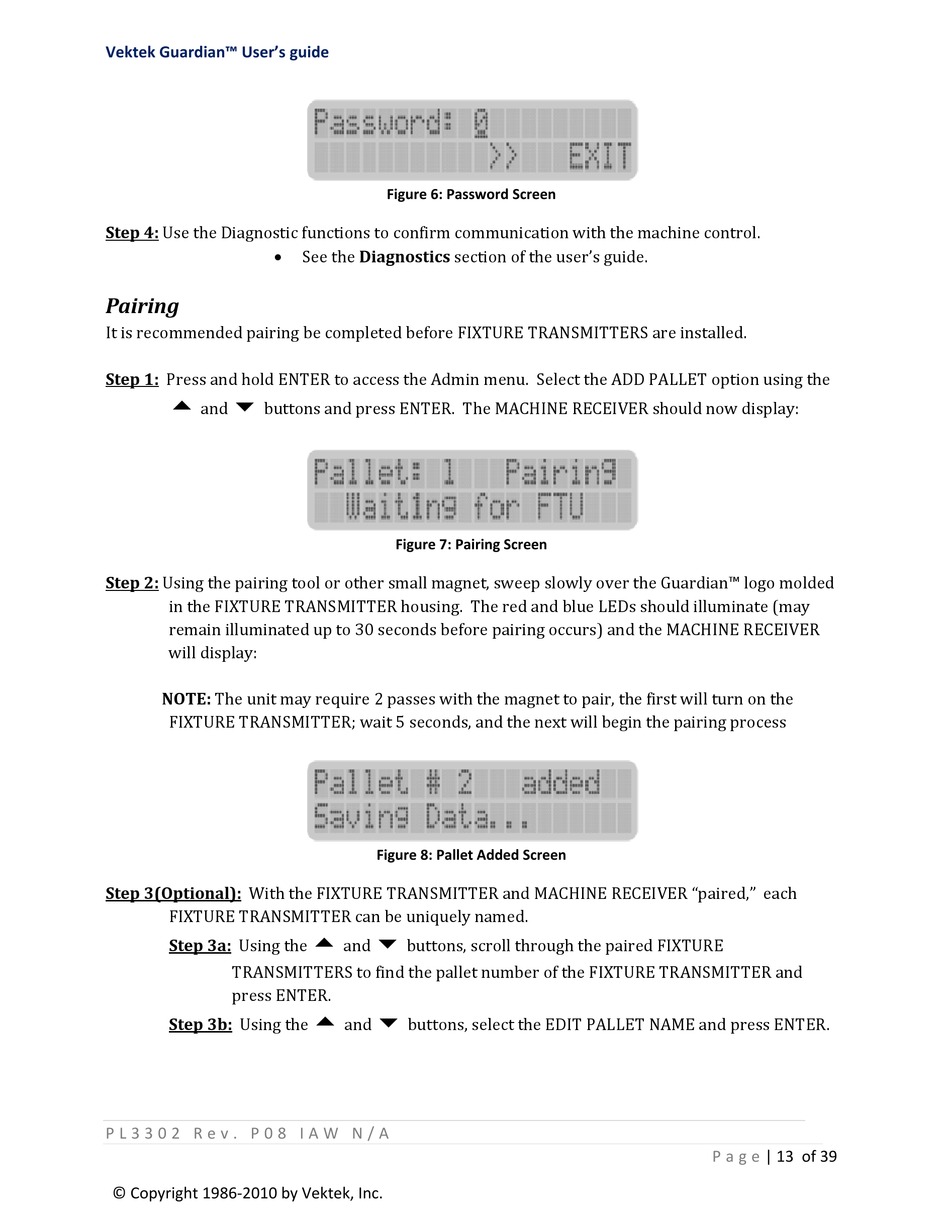

Pairing; Figure 6: Password Screen; Figure 7: Pairing Screen; Figure 8: Pallet Added Screen - Vektek Guardian User Manual

Vektek Guardian™ User's guide
Step 4: Use the Diagnostic functions to confirm communication with the machine control.

Pairing
It is recommended pairing be completed before FIXTURE TRANSMITTERS are installed.
Step 1: Press and hold ENTER to access the Admin menu. Select the ADD PALLET option using the
 
and buttons and press ENTER. The MACHINE RECEIVER should now display:
Step 2: Using the pairing tool or other small magnet, sweep slowly over the Guardian™ logo molded
in the FIXTURE TRANSMITTER housing. The red and blue LEDs should illuminate (may
remain illuminated up to 30 seconds before pairing occurs) and the MACHINE RECEIVER
will display:
NOTE: The unit may require 2 passes with the magnet to pair, the first will turn on the
FIXTURE TRANSMITTER; wait 5 seconds, and the next will begin the pairing process
Step 3(Optional): With the FIXTURE TRANSMITTER and MACHINE RECEIVER "paired," each
FIXTURE TRANSMITTER can be uniquely named.
Step 3a: Using the
TRANSMITTERS to find the pallet number of the FIXTURE TRANSMITTER and
press ENTER.
Step 3b: Using the
P L 3 3 0 2 R e v . P 0 8 I A W N / A
© Copyright 1986‐2010 by Vektek, Inc.
Figure 6: Password Screen
See the Diagnostics section of the user's guide.
Figure 7: Pairing Screen
Figure 8: Pallet Added Screen
 
and buttons, scroll through the paired FIXTURE
 
and buttons, select the EDIT PALLET NAME and press ENTER.
P a g e | 13 of 39
