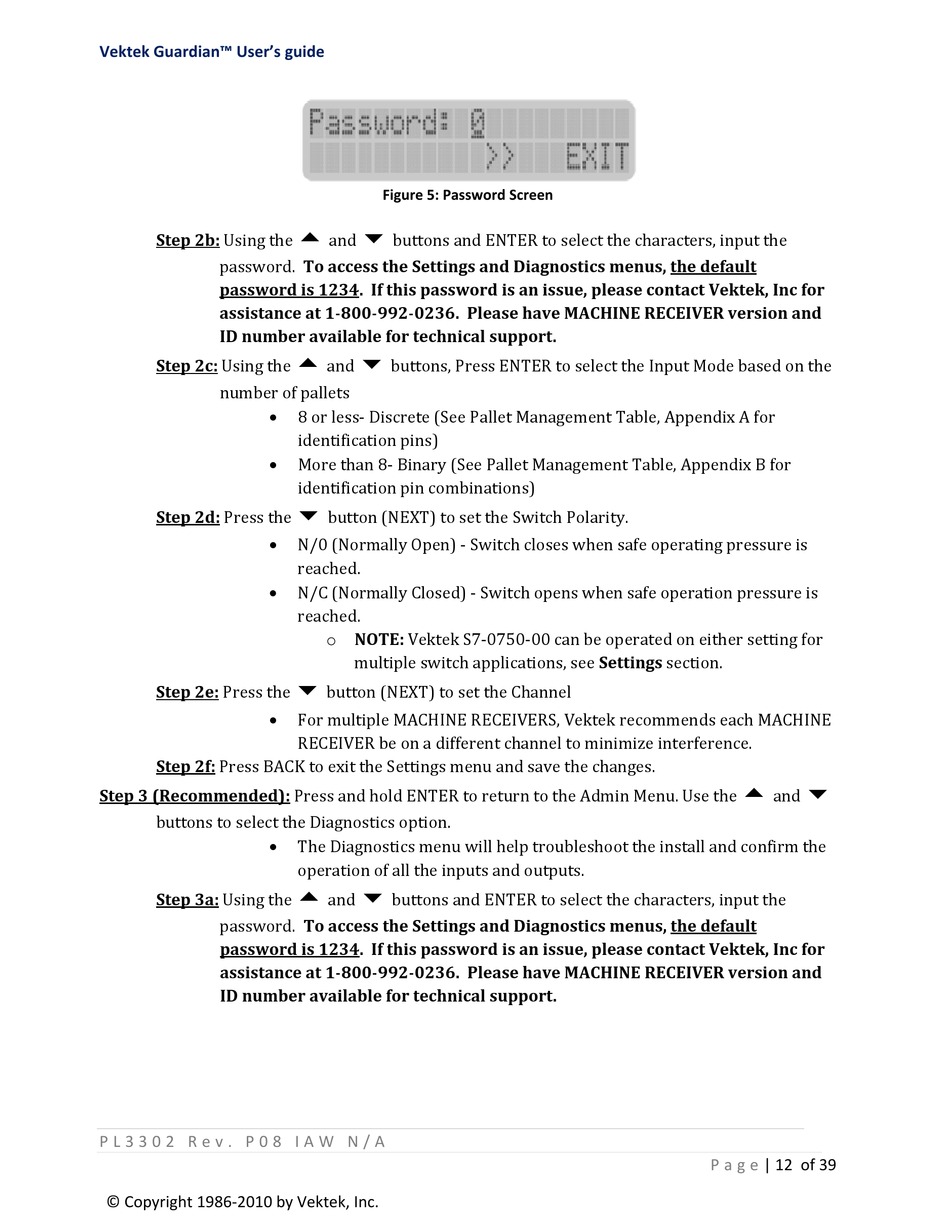

Figure 5: Password Screen - Vektek Guardian User Manual

Vektek Guardian™ User's guide
Step 2b: Using the
password. To access the Settings and Diagnostics menus, the default
password is 1234. If this password is an issue, please contact Vektek, Inc for
assistance at 1­800­992­0236. Please have MACHINE RECEIVER version and
ID number available for technical support.
Step 2c: Using the
number of pallets


Step 2d: Press the


Step 2e: Press the

Step 2f: Press BACK to exit the Settings menu and save the changes.
Step 3 (Recommended): Press and hold ENTER to return to the Admin Menu. Use the
buttons to select the Diagnostics option.

Step 3a: Using the
password. To access the Settings and Diagnostics menus, the default
password is 1234. If this password is an issue, please contact Vektek, Inc for
assistance at 1­800­992­0236. Please have MACHINE RECEIVER version and
ID number available for technical support.
P L 3 3 0 2 R e v . P 0 8 I A W N / A
© Copyright 1986‐2010 by Vektek, Inc.
Figure 5: Password Screen
 
and buttons and ENTER to select the characters, input the
 
and buttons, Press ENTER to select the Input Mode based on the
8 or less‐ Discrete (See Pallet Management Table, Appendix A for
identification pins)
More than 8‐ Binary (See Pallet Management Table, Appendix B for
identification pin combinations)

button (NEXT) to set the Switch Polarity.
N/0 (Normally Open) ‐ Switch closes when safe operating pressure is
reached.
N/C (Normally Closed) ‐ Switch opens when safe operation pressure is
reached.
o NOTE: Vektek S7‐0750‐00 can be operated on either setting for
multiple switch applications, see Settings section.

button (NEXT) to set the Channel
For multiple MACHINE RECEIVERS, Vektek recommends each MACHINE
RECEIVER be on a different channel to minimize interference.
The Diagnostics menu will help troubleshoot the install and confirm the
operation of all the inputs and outputs.
 
and buttons and ENTER to select the characters, input the
 
and
