Vektek Guardian™ User's guide
There are four possible status values that can be displayed for an active FIXTURE TRANSMITTER:

OK– Pressure is good and battery is good. The OK status will also display a solid green light
on the front of the MACHINE RECEIVER.

FAIL– The pressure input is below set point. The FAIL status will cause a solid red light to
be displayed on the MACHINE RECIEVER.

BATT– Battery is Low. The BATT status will cause a flashing red light on the front of the
MACHINE RECEIVER.

COMM– The signal from FIXTURE TRANSMITTER is lost. The COMM status will cause the
green light on the front of the MACHINE RECEIVER to flash.
Idle
When the MACHINE RECEIVER is not "In Cycle," the status of each paired FIXTURE
TRANSMITTER will scroll across the screen. While the MACHINE RECEIVER is idle, the user has the
ability to use the 4 button interface on the unit. The idle screen is seen below.
The bottom line of the display contains the Pallet number, name, and status. The top line displays
"Pallet Status—"or alerts the operator to a fault on an inactive FIXTURE TRANSMITTER (see
below).
There are five possible status values that can be displayed for a FIXTURE TRANSMITTER:

OK– Pressure is good and battery is good.

FAIL– The pressure input is below set point.

BATT– Battery is Low.

COMM– The signal from FIXTURE TRANSMITTER is lost.

STORE– the FIXTURE TRANSMITTER has been placed in storage (turned off) but remains
paired to the MACHINE RECEIVER.
P L 3 3 0 2 R e v . P 0 8 I A W N / A
© Copyright 1986‐2010 by Vektek, Inc.

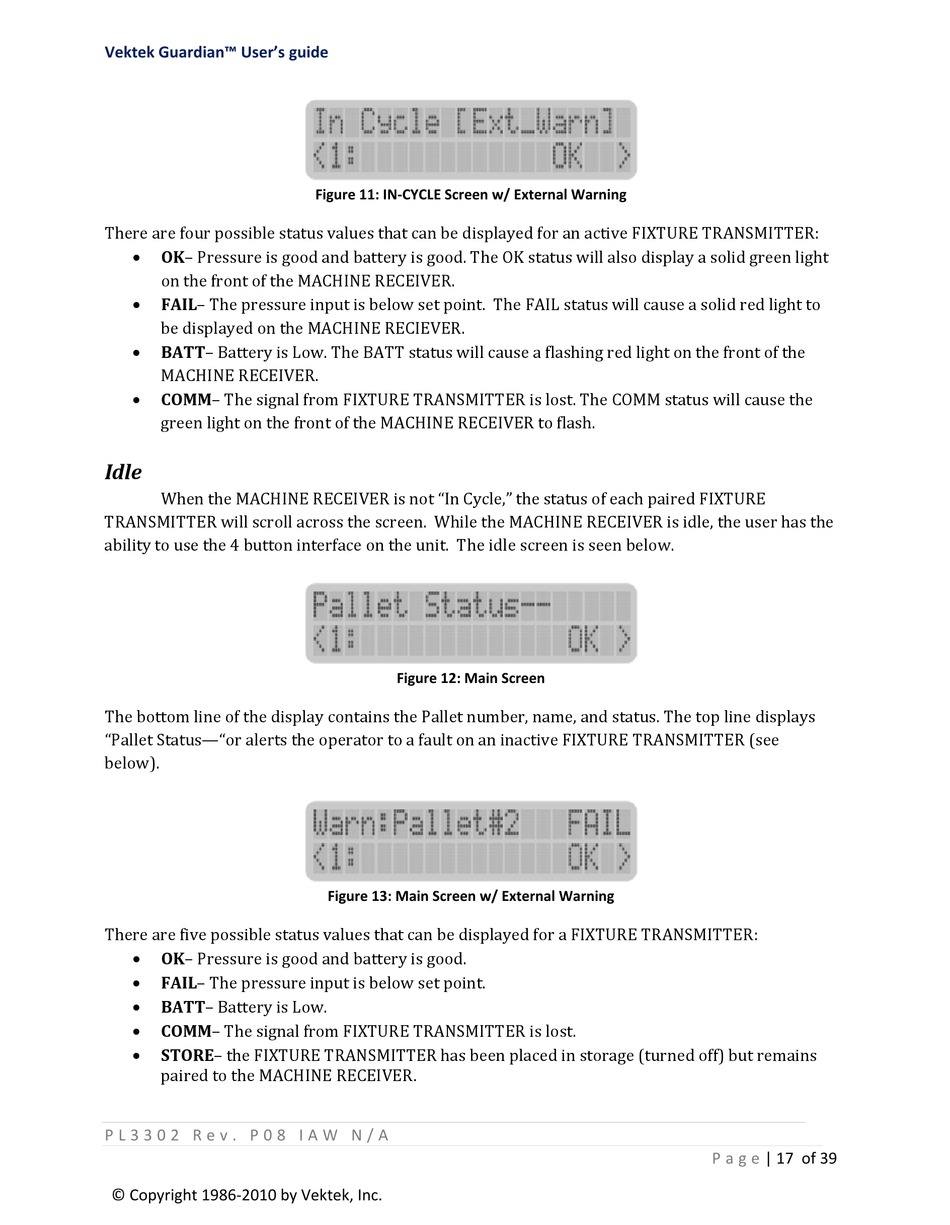

Figure 11: IN‐CYCLE Screen w/ External Warning
Figure 12: Main Screen
Figure 13: Main Screen w/ External Warning
P a g e | 17 of 39
