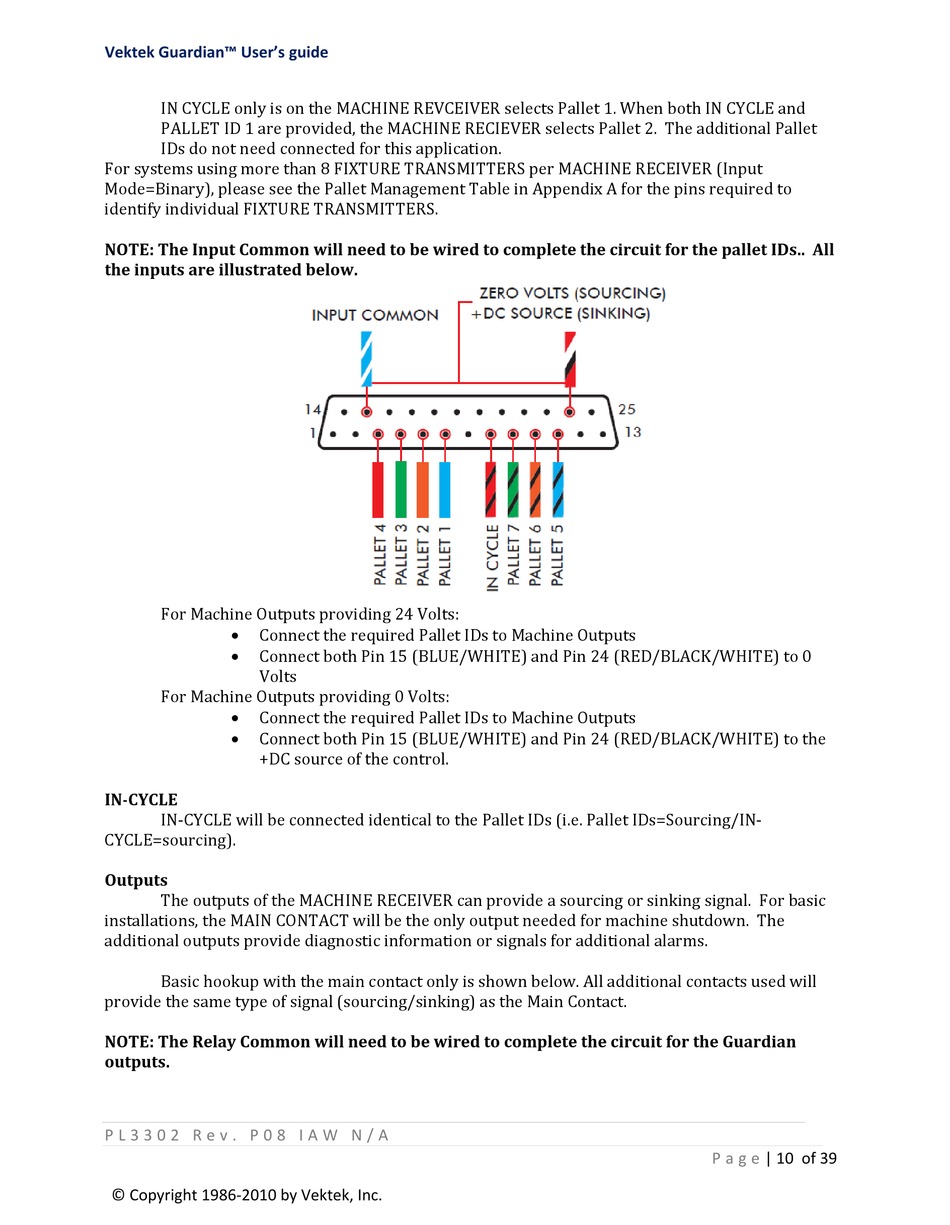

IN CYCLE only is on the MACHINE REVCEIVER selects Pallet 1. When both IN CYCLE and
PALLET ID 1 are provided, the MACHINE RECIEVER selects Pallet 2. The additional Pallet
IDs do not need connected for this application.
For systems using more than 8 FIXTURE TRANSMITTERS per MACHINE RECEIVER (Input
Mode=Binary), please see the Pallet Management Table in Appendix A for the pins required to
identify individual FIXTURE TRANSMITTERS.
NOTE: The Input Common will need to be wired to complete the circuit for the pallet IDs.. All
the inputs are illustrated below.
For Machine Outputs providing 24 Volts:

Connect the required Pallet IDs to Machine Outputs

Connect both Pin 15 (BLUE/WHITE) and Pin 24 (RED/BLACK/WHITE) to 0
Volts
For Machine Outputs providing 0 Volts:

Connect the required Pallet IDs to Machine Outputs

Connect both Pin 15 (BLUE/WHITE) and Pin 24 (RED/BLACK/WHITE) to the
+DC source of the control.
IN­CYCLE
IN‐CYCLE will be connected identical to the Pallet IDs (i.e. Pallet IDs=Sourcing/IN‐
CYCLE=sourcing).
Outputs
The outputs of the MACHINE RECEIVER can provide a sourcing or sinking signal. For basic
installations, the MAIN CONTACT will be the only output needed for machine shutdown. The
additional outputs provide diagnostic information or signals for additional alarms.
Basic hookup with the main contact only is shown below. All additional contacts used will
provide the same type of signal (sourcing/sinking) as the Main Contact.
NOTE: The Relay Common will need to be wired to complete the circuit for the Guardian
outputs.
