In Cycle Pin (Input): Signals MACHINE RECIEVER to initiate communication and activate the
identified FIXTURE TRANSMITTER, move output contacts according to condition of the
FIXTURE TRANSMITTER.
NOTE: No matter which Input Mode (Discrete or Binary), if the IN CYCLE input is given alone
the MACHINE RECEVIER will default to Pallet 1.
Main Contact (Output): Relay closes when MACHINE RECEIVER is given In‐cycle Input, and opens
when In Cycle signal is lost or a fault is detected on active FIXTURE TRANSMITTER.
Low Battery/Signal Loss Contact (Output): Appropriate relay closes in conjunction with Main
Contact opening when associated fault is detected.
Green/Red Status Light Contact (Output): The Green/Red Status Light Relays will mimic the status
lights on the MACHINE RECEIVER.
External Warning Contact (Output): Closes when a fault is detected among the idle FIXTURE
TRANSMITTER. NOTE: NOT intended for machine shutdown. Relay only operates for all
idle pallets. Does not identify faulted pallet only signals a general fault.
OUTPUT NOTE: the Main Contact opens when a fault is detected; however, the other outputs
close to signal an associated fault (Low Battery/Signal Loss/External Warning) has
occurred.
Wiring Specifications

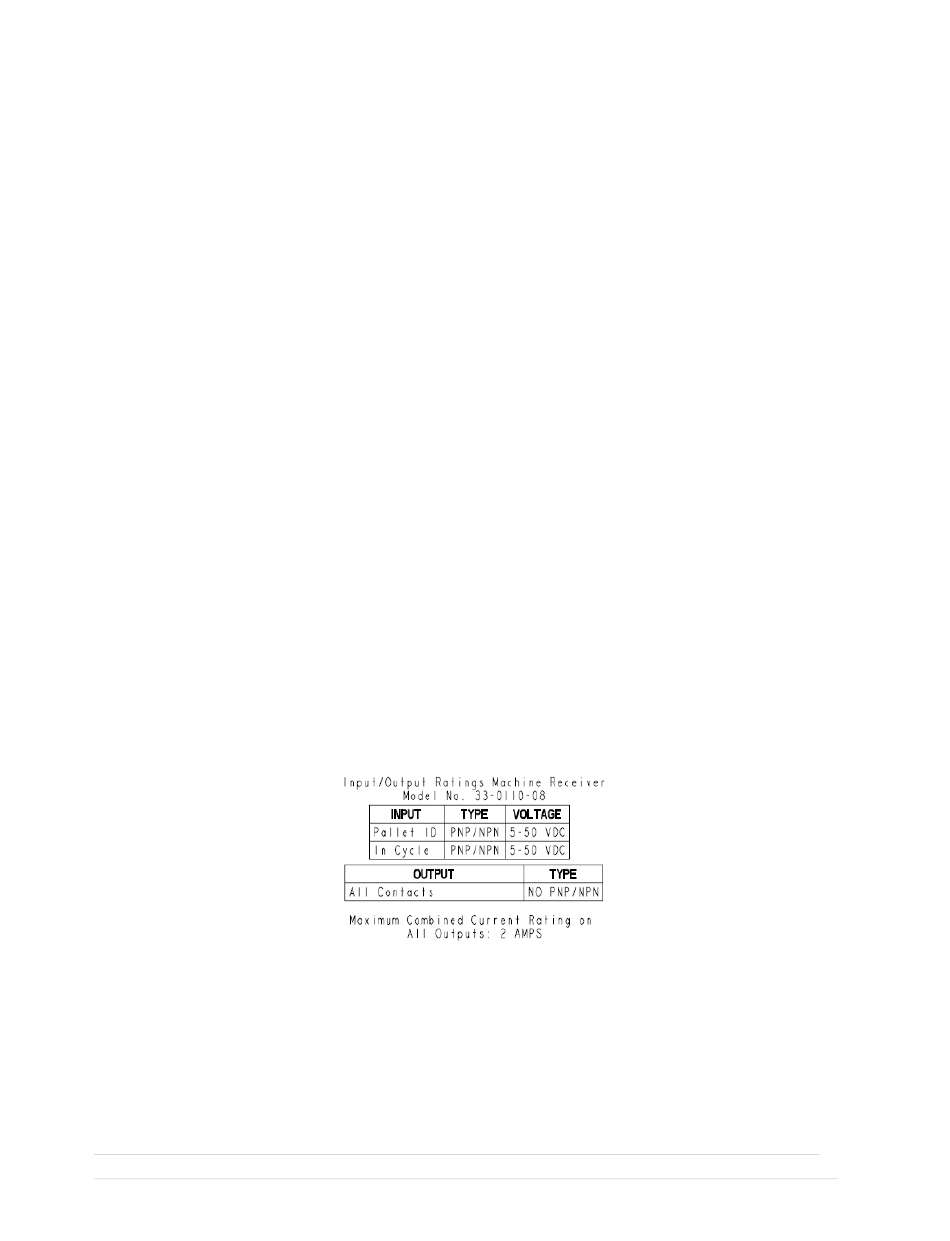

Below is a chart for the MACHINE RECEIVER I/O (Input/Output) ratings and position.
P L 3 3 0 2 R e v . P 0 8 I A W N / A
© Copyright 1986‐2010 by Vektek, Inc.
Figure 36: Input/Output Specifications
