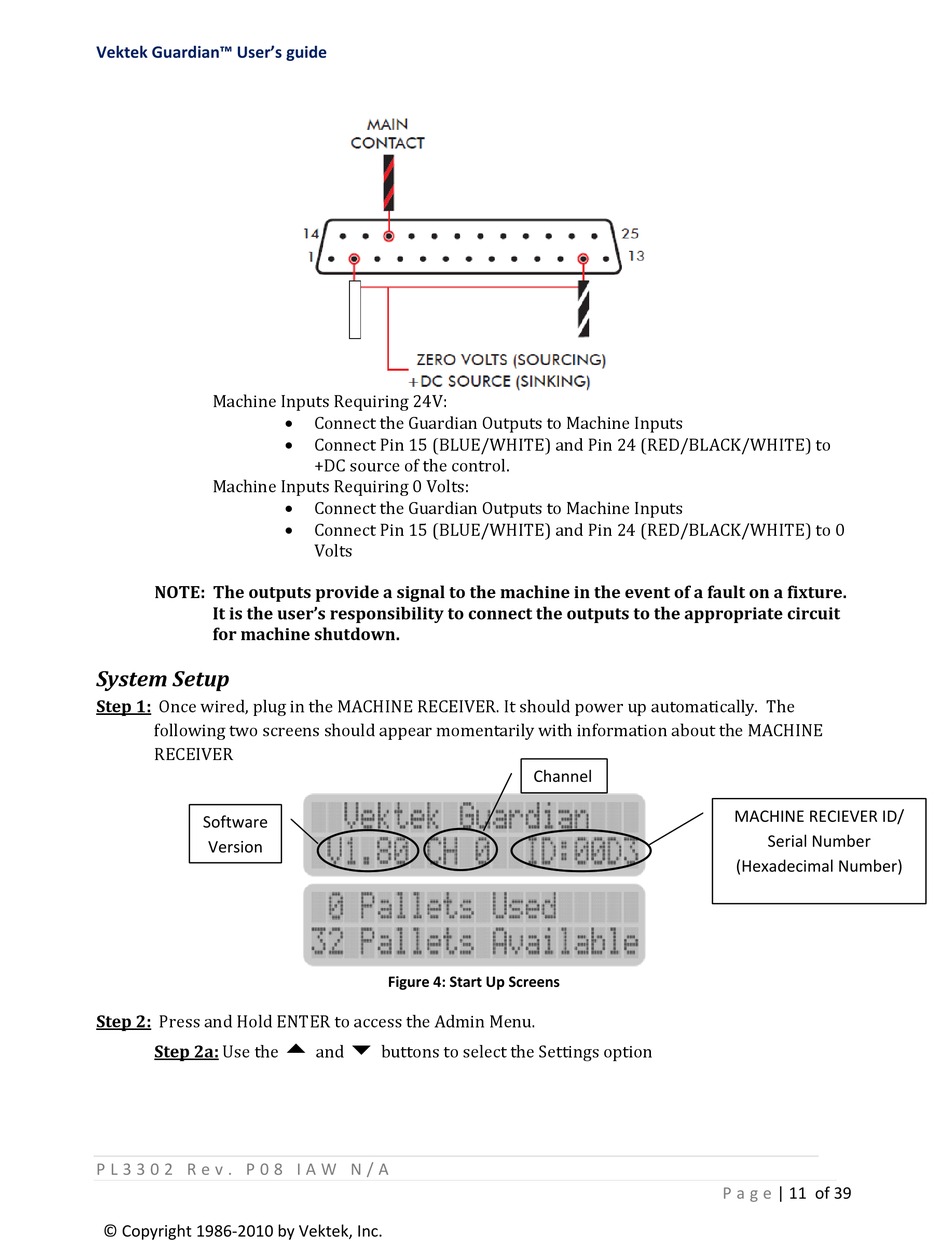

Figure 4: Start Up Screens - Vektek Guardian User Manual

Vektek Guardian™ User's guide
Machine Inputs Requiring 24V:
Machine Inputs Requiring 0 Volts:
NOTE: The outputs provide a signal to the machine in the event of a fault on a fixture.
It is the user's responsibility to connect the outputs to the appropriate circuit
for machine shutdown.
System Setup
Step 1: Once wired, plug in the MACHINE RECEIVER. It should power up automatically. The
following two screens should appear momentarily with information about the MACHINE
RECEIVER
Software
Version
Step 2: Press and Hold ENTER to access the Admin Menu.
Step 2a: Use the
P L 3 3 0 2 R e v . P 0 8 I A W N / A
© Copyright 1986‐2010 by Vektek, Inc.

Connect the Guardian Outputs to Machine Inputs

Connect Pin 15 (BLUE/WHITE) and Pin 24 (RED/BLACK/WHITE) to
+DC source of the control.

Connect the Guardian Outputs to Machine Inputs

Connect Pin 15 (BLUE/WHITE) and Pin 24 (RED/BLACK/WHITE) to 0
Volts
Figure 4: Start Up Screens
 
and buttons to select the Settings option
Channel
MACHINE RECIEVER ID/
Serial Number
(Hexadecimal Number)
P a g e | 11 of 39
