Chapter 7 Usage of Various Functions

7.1.4. Input Filter Function

External input of MK80S selects input on/off delay time from the range of 0-15ms of KGLWIN. Credibility secured system
may be established by adjustment of input correction no. through using environment.
1) Usage
Input signal status affects to the credibility of system in where noise occurs frequently or pulse width of input signal affects
as a crucial factor. In this case the user sets up the proper input on/off delay time, then the trouble by miss operation of
input signal may be prevented because the signal which is shorter than set up value is not adopted.

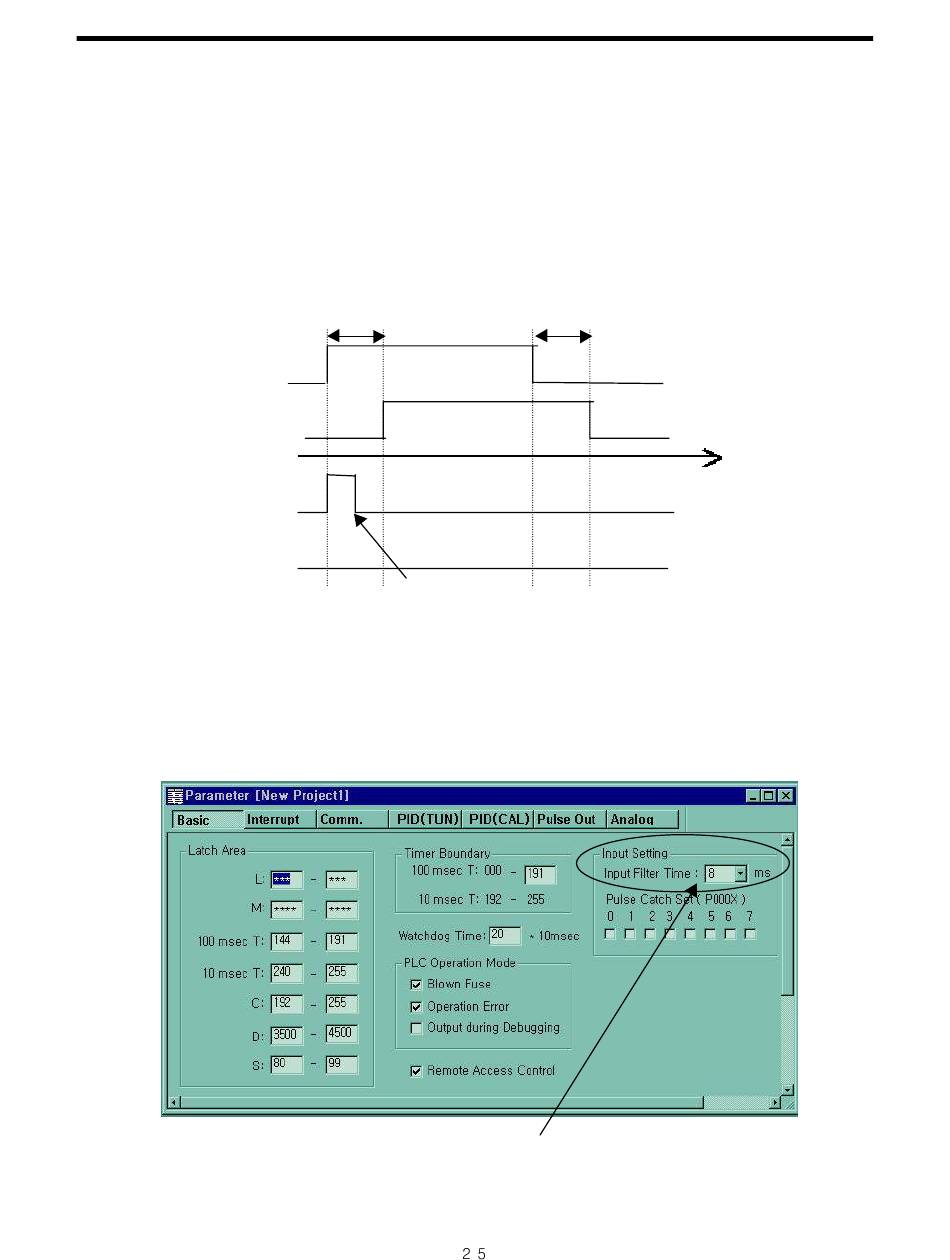

2) Operating Explanation
input signal
input image data
input signal
input image data
3) Using method
(1) Click twice the basic parameter on the project window of KGLWIN.
(2) The value of filter can be set up as unit of 1ms to the input on/off delay time of the basic parameter window.(Input
on/off delay time is set up as default value of 8ms)
(3) Set up input on/off delay time is conformed to all input is used.
on/off delay time
input .(filter time)
narrower width pulse than input correction no. is not considered as input signal
7-
It can be selected to 0 ~ 15ms.
time
