Chapter 8 Communication Function
Tail
Used in [Tail] type.
Possible characters as headers are 1 alphabet letter, 1 numeric number, or control characters as below
Control character
NUL(h00)
STX(h02)
SOH(h01)
ENQ(h05)
VT(h0B)
FF(h0C)
DC1(h18)
DC2(h12)
CAN(h18)
EM(h19)
RS(h1E)
US(h1F)
Example 1) [NUL] , [ENQ] , [1] , [A] : Possible
Example 2) NUL, ENQ , [12] , [ABC] : impossible
-
It is allowed to be only 3 consecutive characters.
Example 1) [ENQ][STX][NUL] : Possible
Example 2) [A][NUL][ENQ][STX] : impossible
-

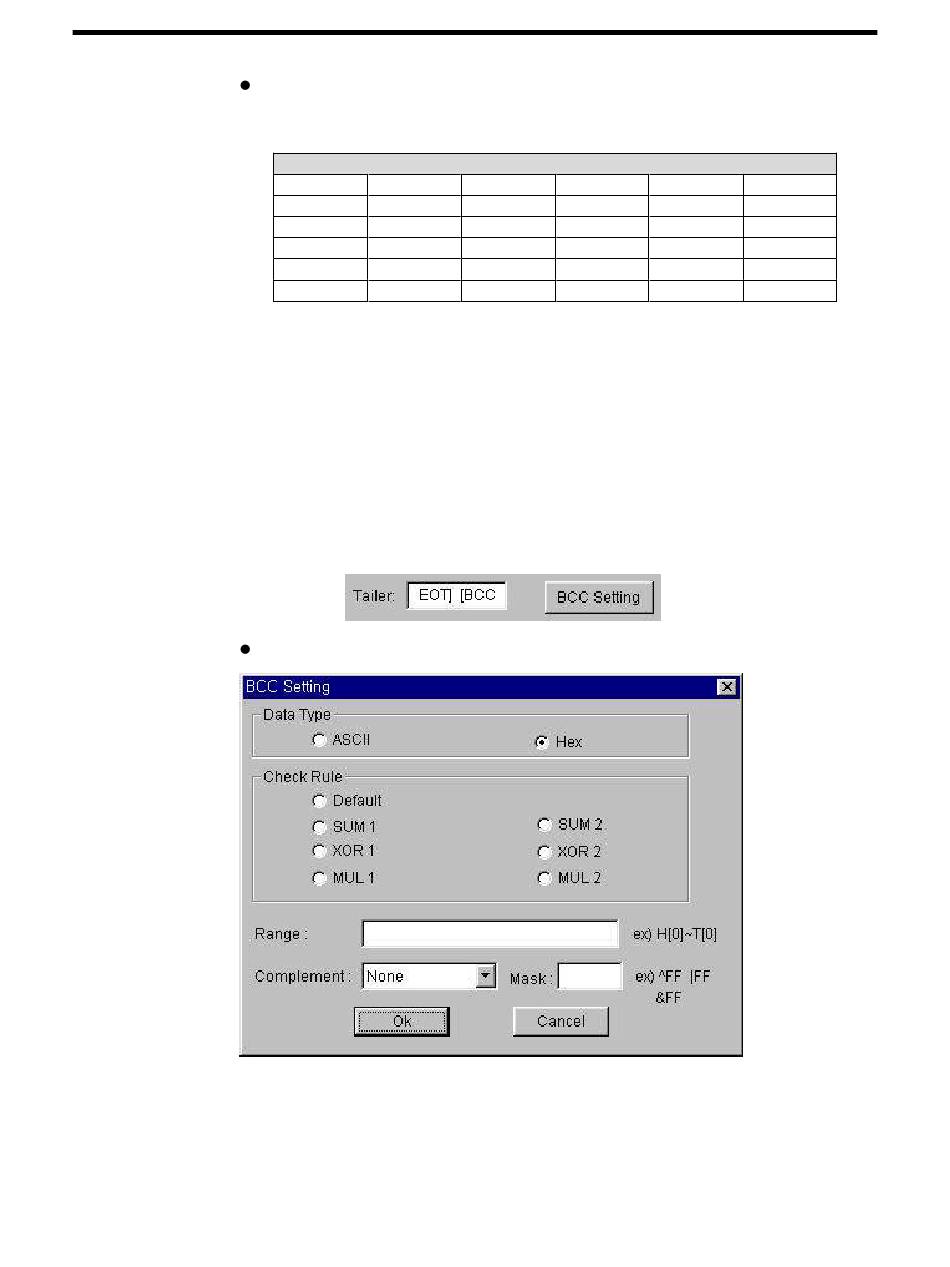

It ' s possible to use BCC that can detect errors. BCC must be set as [BCC] to be used. To set BCC
contents, click " BCC Setting" button on the right side.
Ex5)
BCC setting: set BCC when it is needed.
Available Control Code
ETX(h03)
EOT(h04)
BEL(h07)
BS(h08)
CR(h0D)
SO(h0E)
DC3(h13)
DC4(h14)
SUB(h1A)
ESC(h1B)
Del(H7F)
8-52
ACK(h06)
NAK(h15)
HT(h09)
LF(h0A)
S1(h0F)
DLE(h10)
SYN(h16)
ETB(h17)
FS(h1C)
GS(h1D)
