Chapter 9 Installation and Wiring

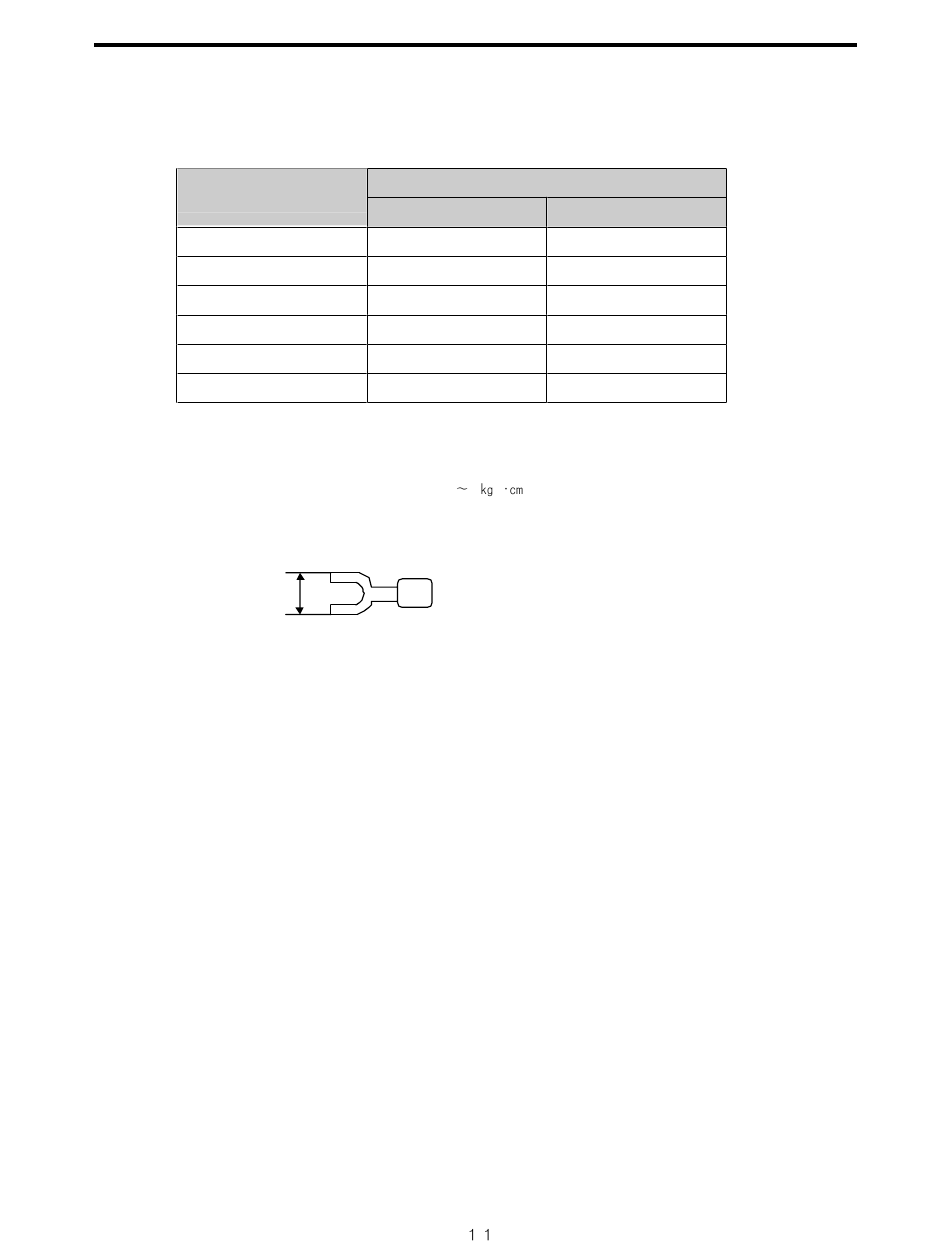

9.2.4 Cable Specifications for wiring

The specifications for wiring is as follows:
Kinds of external connection
Digital Input
Digital Output
Analog Input / Output
Communication
Main power
Grounding
• Be sure to use solderless terminal for power supply and I/O wiring.
•Be sure to use M3 type as terminal screw.
•Make sure that terminal screw is connected by 6 9
•Be sure to use fork shaped terminal screw as shown below.
cable solderness terminal (fork shaped)
6.2mm less than
Cable Specifications (㎟)
Minimum
0.18 (AWG24)
0.18 (AWG24)
0.18 (AWG24)
0.18 (AWG24)
1.5 (AWG16)
1.5 (AWG16)
torque..
9-
Maximum
1.5 (AWG16)
2.0 (AWG14)
1.5 (AWG16)
1.5 (AWG16)
2.5 (AWG12)
2.5 (AWG12)
